A 2.5 second occultation was recorded by Jonathan Bradshaw, using an SCT Telescope and Watec 910BD camera.

One miss was recorded for this event.

View the IOTA update.

Observers:
  1    J Bradshaw, Samford Valley, Queensland, Australia
  2(M) J Broughton, Reedy Creek, Queensland, Australia

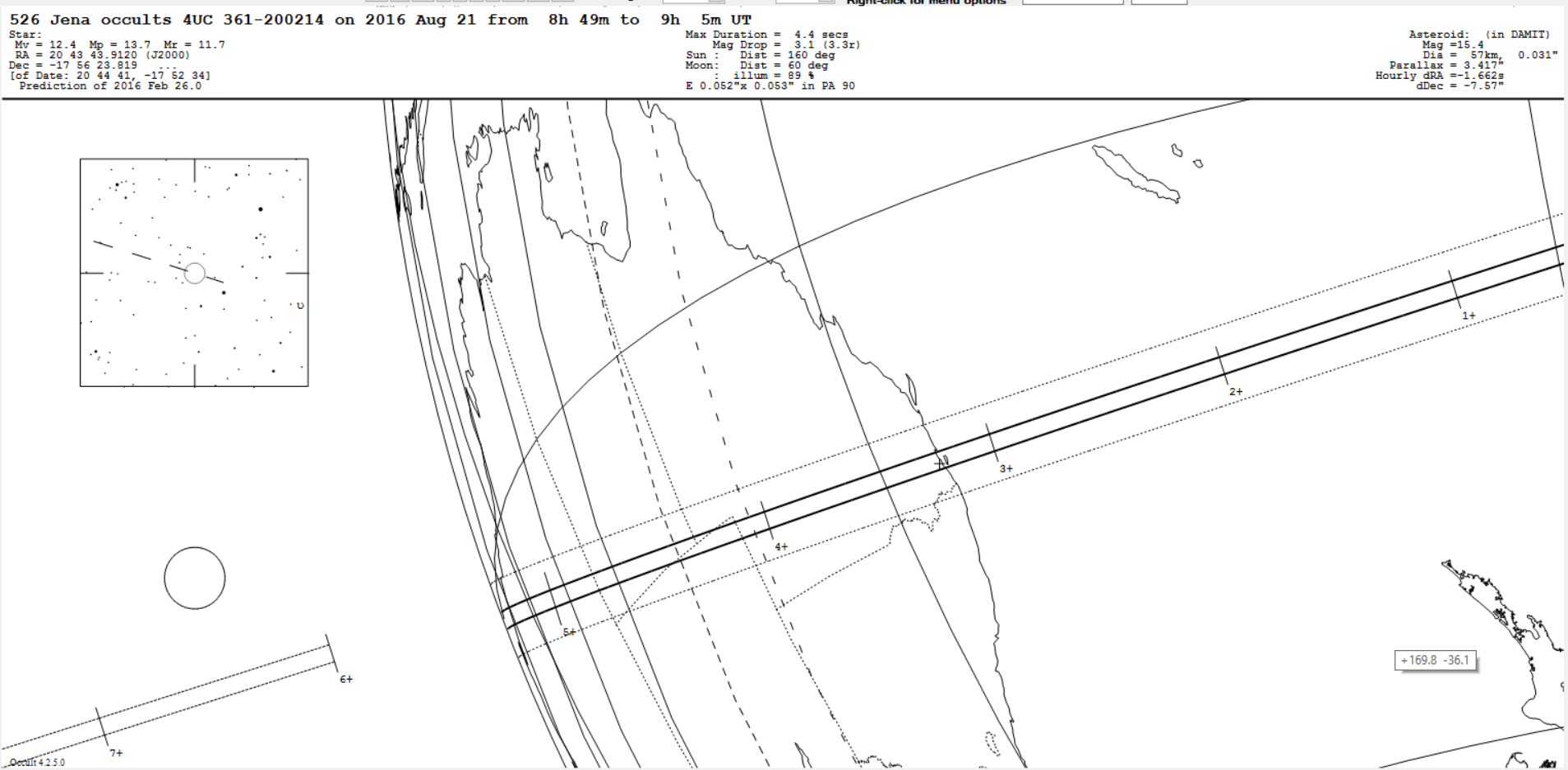

  3(P) Prediction- IOTA Feed







Discussion:

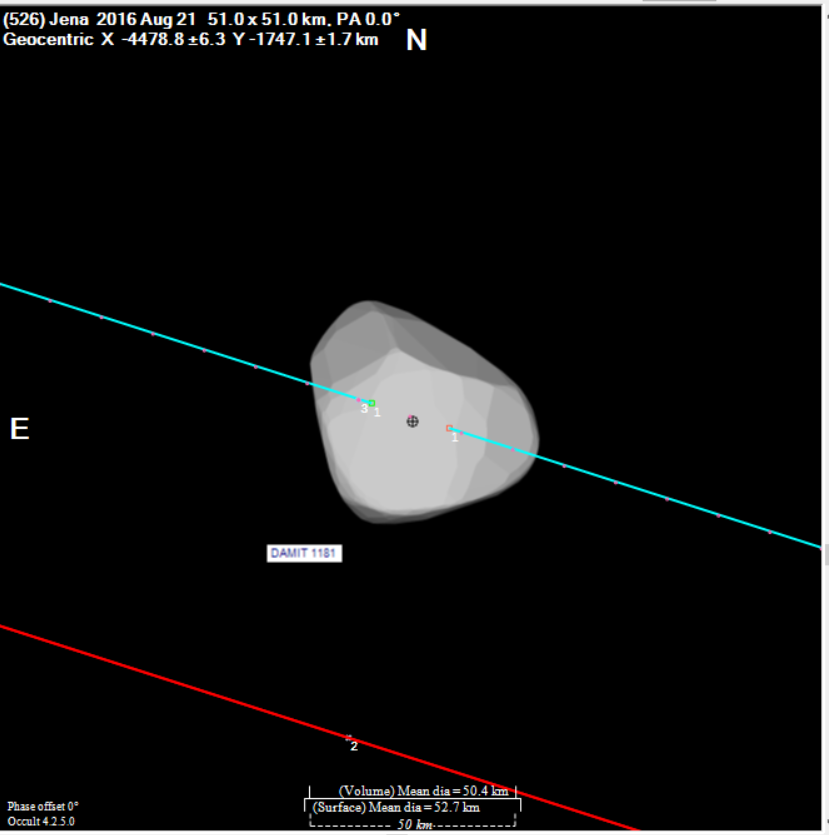

With only one chord it is not possible to tell if Jonathan was north or south of the centre line of the event. The miss is too far away to disambiguate. The DAMIT model has been plotted centred on the observed chord.

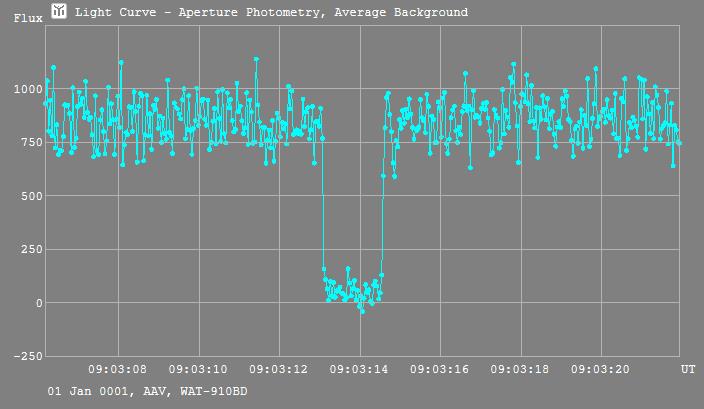

The figure below shows the Tangra light curve of the occultation.

Observational Data:

Observation details for MP ( 526 ) Jena
By Star              UCAC4 361-200214
On 2016-08-21  at 09:03:13.0

_______________________________

Observer   Jonathan Bradshaw
Location   Samford Valley, Qld, Australia
Longitude  +152:50
Latitude   -27:22
Altitude   80 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   36 cm
Seeing     Steady Clear
Camera Type  Watec 910BD    NTSC/EIA
Camera Delay
Timing     GPS - time inserted Video with frame analysis
Disappearance  09:03:13.09
Reappearance   09:03:14.60
Comments:   Report prepopulated by IOTA Reporting Add-in for OW ver.1.8

_______________________________

Observer   John Broughton
Location   Reedy Creek, QLD, AU
Longitude  +153:23
Latitude   -28:06
Altitude   66 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   25 cm
Seeing     Steady Thin cloud < 2
Camera Type  Watec 120N+    PAL/CCIR
Camera Delay
Timing     GPS - time inserted Video with frame analysis

Missed

Comments:
