ASTROMETRIC UPDATE:
OCCULTATION BY (709) FRINGILLA - 2016 APR 10

[Edwin Goffin's Prediction + Finder Charts]

[Detailed Finder Charts]


Updated:   2016 Feb 27, 13:59 UT

Event Rank : 99

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

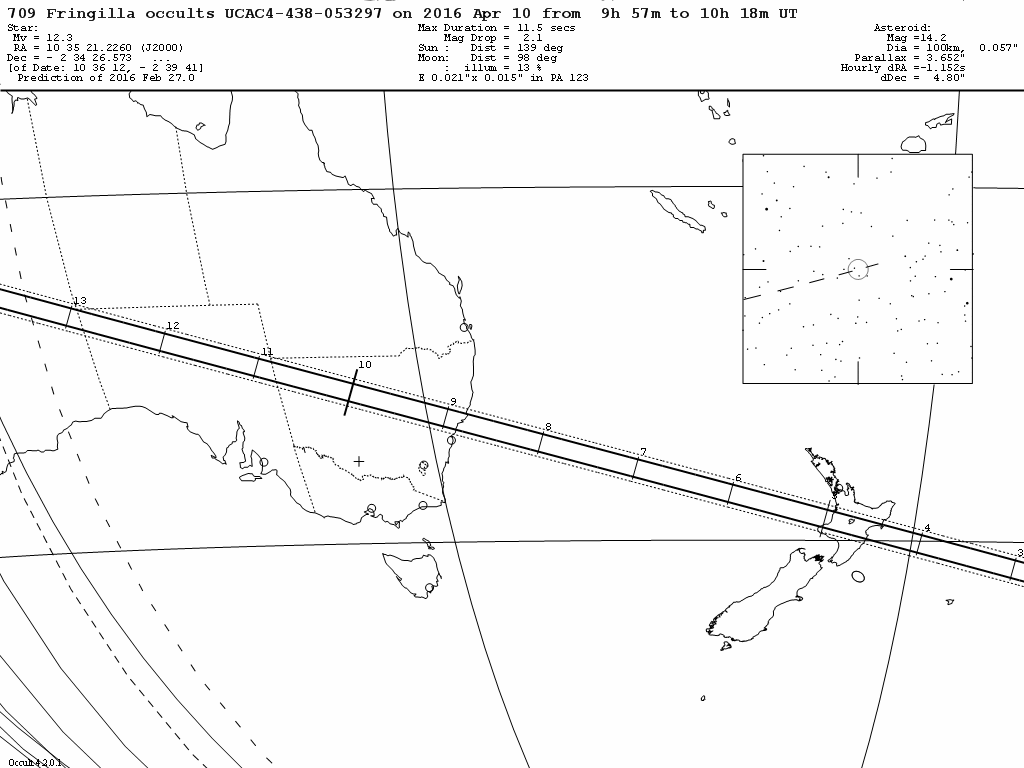

Fringilla Update Map


On 2016 Apr 10 UT, the 100 km diameter asteroid (709) Fringilla will occult a 12.3 mag star in the constellation Sextans for observers along a path across the North Island of New Zealand, passing near Napier and New Plymouth and across New South Wales, passing over Newcastle.

In the case of an occultation, the combined light of the asteroid and the star will drop by 2.0 mag to 14.2 mag (the magnitude of the asteroid) for at most 11.5 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Alice Monet, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
 Occultation of UCAC4-438-053297 by 709 Fringilla on 2016 Apr 10
                  Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                         Latitude   Latitude   Latitude   Latitude
    118  0  0   -23 53 19   10 14 36    39    73    -5  -23 20 15  -24 26 36  -23  2 29  -24 44 40
    119  0  0   -24  7 16   10 14 27    40    72    -5  -23 34 10  -24 40 34  -23 16 23  -24 58 39
    120  0  0   -24 21 22   10 14 18    40    72    -6  -23 48 14  -24 54 42  -23 30 26  -25 12 48
    121  0  0   -24 35 37   10 14  9    41    71    -7  -24  2 28  -25  8 59  -23 44 39  -25 27  6
    122  0  0   -24 50  2   10 14  0    42    70    -8  -24 16 51  -25 23 25  -23 59  1  -25 41 33

    123  0  0   -25  4 35   10 13 51    43    69    -9  -24 31 23  -25 38  1  -24 13 32  -25 56  9
    124  0  0   -25 19 17   10 13 42    43    68   -10  -24 46  3  -25 52 44  -24 28 11  -26 10 54
    125  0  0   -25 34  7   10 13 32    44    67   -11  -25  0 52  -26  7 36  -24 42 59  -26 25 46
    126  0  0   -25 49  5   10 13 23    45    66   -12  -25 15 48  -26 22 36  -24 57 55  -26 40 47
    127  0  0   -26  4 11   10 13 13    45    65   -13  -25 30 52  -26 37 43  -25 12 58  -26 55 55

    128  0  0   -26 19 24   10 13  3    46    64   -13  -25 46  3  -26 52 58  -25 28  8  -27 11 11
    129  0  0   -26 34 44   10 12 53    47    63   -14  -26  1 22  -27  8 19  -25 43 26  -27 26 33
    130  0  0   -26 50 10   10 12 43    47    62   -15  -26 16 47  -27 23 47  -25 58 50  -27 42  2
    131  0  0   -27  5 43   10 12 33    48    61   -16  -26 32 18  -27 39 21  -26 14 20  -27 57 37
    132  0  0   -27 21 22   10 12 23    49    60   -17  -26 47 55  -27 55  2  -26 29 57  -28 13 18

    133  0  0   -27 37  6   10 12 13    49    59   -18  -27  3 38  -28 10 47  -26 45 39  -28 29  4
    134  0  0   -27 52 56   10 12  2    50    57   -19  -27 19 26  -28 26 38  -27  1 26  -28 44 56
    135  0  0   -28  8 50   10 11 52    50    56   -19  -27 35 19  -28 42 34  -27 17 19  -29  0 53
    136  0  0   -28 24 49   10 11 42    51    55   -20  -27 51 17  -28 58 35  -27 33 16  -29 16 54
    137  0  0   -28 40 53   10 11 31    51    53   -21  -28  7 19  -29 14 40  -27 49 17  -29 33  0

    138  0  0   -28 57  0   10 11 21    52    52   -22  -28 23 25  -29 30 49  -28  5 23  -29 49 10
    139  0  0   -29 13 11   10 11 10    52    51   -23  -28 39 35  -29 47  1  -28 21 32  -30  5 23
    140  0  0   -29 29 26   10 11  0    53    49   -24  -28 55 48  -30  3 17  -28 37 44  -30 21 39
    141  0  0   -29 45 43   10 10 49    53    48   -24  -29 12  4  -30 19 35  -28 54  0  -30 37 58
    142  0  0   -30  2  3   10 10 38    54    46   -25  -29 28 23  -30 35 56  -29 10 18  -30 54 20

    143  0  0   -30 18 25   10 10 28    54    45   -26  -29 44 44  -30 52 20  -29 26 39  -31 10 44
    144  0  0   -30 34 50   10 10 17    54    43   -27  -30  1  8  -31  8 45  -29 43  1  -31 27 10
    145  0  0   -30 51 15   10 10  6    55    42   -27  -30 17 32  -31 25 12  -29 59 26  -31 43 37
    146  0  0   -31  7 43   10  9 55    55    40   -28  -30 33 59  -31 41 40  -30 15 51  -32  0  6
    147  0  0   -31 24 11   10  9 44    55    38   -29  -30 50 26  -31 58  9  -30 32 18  -32 16 36

    148  0  0   -31 40 39   10  9 34    56    37   -30  -31  6 54  -32 14 39  -30 48 45  -32 33  6
    149  0  0   -31 57  8   10  9 23    56    35   -31  -31 23 22  -32 31  8  -31  5 13  -32 49 36
    150  0  0   -32 13 37   10  9 12    56    33   -31  -31 39 50  -32 47 38  -31 21 41  -33  6  6
    151  0  0   -32 30  6   10  9  1    56    31   -32  -31 56 18  -33  4  8  -31 38  9  -33 22 36
    152  0  0   -32 46 34   10  8 50    57    30   -33  -32 12 46  -33 20 36  -31 54 36  -33 39  5

    153  0  0   -33  3  1   10  8 40    57    28   -33  -32 29 12  -33 37  4  -32 11  2  -33 55 33
    154  0  0   -33 19 27   10  8 29    57    26   -34  -32 45 37  -33 53 30  -32 27 27  -34 11 59
    155  0  0   -33 35 51   10  8 18    57    24   -35  -33  2  1  -34  9 55  -32 43 50  -34 28 24
    156  0  0   -33 52 13   10  8  7    57    22   -36  -33 18 22  -34 26 17  -33  0 12  -34 44 47
    157  0  0   -34  8 33   10  7 57    57    21   -36  -33 34 42  -34 42 37  -33 16 31  -35  1  7

    158  0  0   -34 24 50   10  7 46    57    19   -37  -33 50 59  -34 58 55  -33 32 48  -35 17 25
    159  0  0   -34 41  5   10  7 35    57    17   -38  -34  7 13  -35 15 10  -33 49  2  -35 33 40
    160  0  0   -34 57 16   10  7 25    57    15   -38  -34 23 24  -35 31 21  -34  5 13  -35 49 52
    161  0  0   -35 13 24   10  7 14    57    13   -39  -34 39 32  -35 47 29  -34 21 21  -36  6  0
    162  0  0   -35 29 28   10  7  4    57    11   -40  -34 55 36  -36  3 33  -34 37 24  -36 22  4

    163  0  0   -35 45 28   10  6 53    57    10   -40  -35 11 36  -36 19 33  -34 53 25  -36 38  4
    164  0  0   -36  1 24   10  6 43    56     8   -41  -35 27 32  -36 35 29  -35  9 20  -36 53 59
    165  0  0   -36 17 15   10  6 32    56     6   -41  -35 43 23  -36 51 20  -35 25 12  -37  9 50
    166  0  0   -36 33  1   10  6 22    56     4   -42  -35 59  9  -37  7  6  -35 40 58  -37 25 36
    167  0  0   -36 48 42   10  6 12    56     3   -43  -36 14 51  -37 22 47  -35 56 40  -37 41 17

    168  0  0   -37  4 17   10  6  1    56     1   -43  -36 30 27  -37 38 22  -36 12 16  -37 56 52
    169  0  0   -37 19 47   10  5 51    55   359   -44  -36 45 57  -37 53 51  -36 27 46  -38 12 21
    170  0  0   -37 35 11   10  5 41    55   357   -44  -37  1 21  -38  9 15  -36 43 11  -38 27 44
    171  0  0   -37 50 29   10  5 31    55   356   -45  -37 16 40  -38 24 32  -36 58 29  -38 43  1
    172  0  0   -38  5 40   10  5 21    55   354   -45  -37 31 51  -38 39 43  -37 13 41  -38 58 12

    173  0  0   -38 20 45   10  5 12    54   353   -46  -37 46 57  -38 54 47  -37 28 47  -39 13 15
    174  0  0   -38 35 42   10  5  2    54   351   -46  -38  1 55  -39  9 44  -37 43 45  -39 28 12
    175  0  0   -38 50 33   10  4 52    53   349   -47  -38 16 46  -39 24 34  -37 58 37  -39 43  1
    176  0  0   -39  5 16   10  4 42    53   348   -47  -38 31 30  -39 39 16  -38 13 21  -39 57 43
    177  0  0   -39 19 51   10  4 33    53   346   -48  -38 46  6  -39 53 50  -38 27 58  -40 12 17

    178  0  0   -39 34 19   10  4 23    52   345   -48  -39  0 35  -40  8 17  -38 42 27  -40 26 43
    179  0  0   -39 48 39   10  4 14    52   344   -48  -39 14 55  -40 22 36  -38 56 48  -40 41  1
Uncertainty in time = +/- 4 secs

Prediction of 2016 Feb 27.0
