ASTROMETRIC UPDATE:
OCCULTATION BY (1960) GUISAN - 2016 Mar 27

[Detailed Finder Charts]


Updated:   2016 FEB 01, 05:41 UT

Event Rank : 26

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

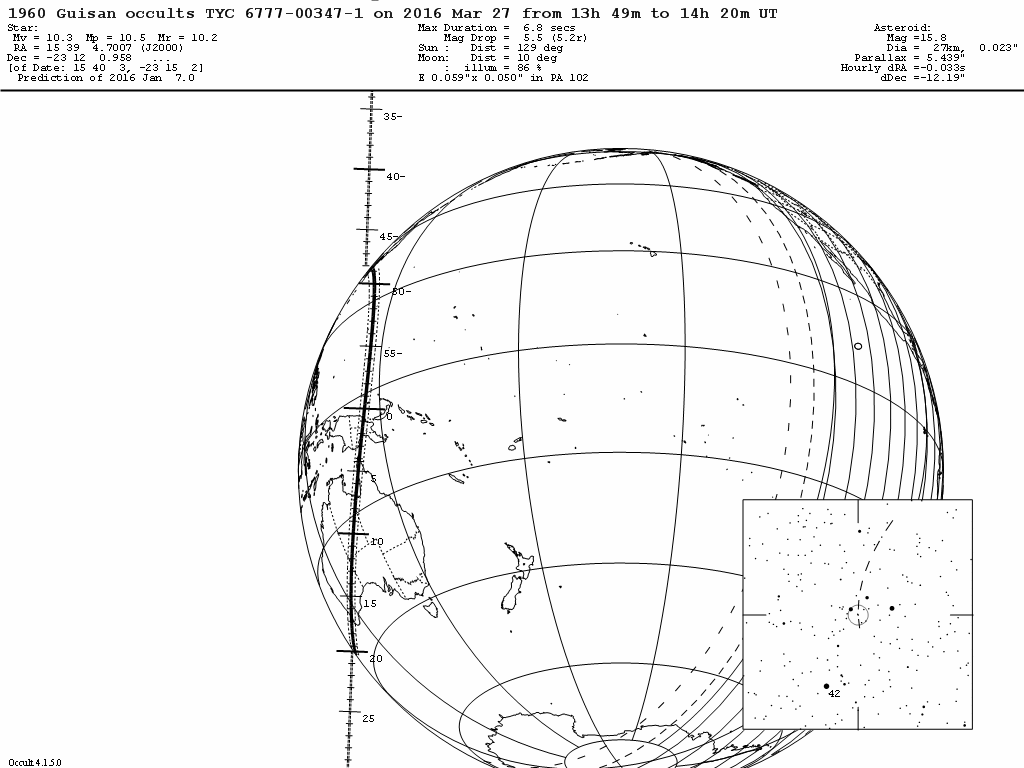

Guisan Update Map


On 2016 Mar 27 UT, the 27 km diameter asteroid (1960) Guisan will occult a 10.3 mag star in the constellation Libra for observers along a narrow path across Australia, from Cape Yorke across north-western Queensland, southern Northern Territory and southern Western Australia to near Perth.

In the case of an occultation, the combined light of the asteroid and the star will drop by 5.5 mag to 15.8 mag (the magnitude of the asteroid) for at most 6.8 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Hugh Harris, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                   Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                        Longitude  Longitude  Longitude  Longitude
    143 21 12   -10  0  0   14  3 21    36   112   -80  143  7 19  143 35  0  141 55 12  144 44 11

    142 53 42   -11  0  0   14  3 51    36   111   -79  142 39 39  143  7 40  141 26 38  144 17 39
    142 24 14   -12  0  0   14  4 20    36   110   -78  142 10  0  142 38 23  140 55 57  143 49 16
    141 52 41   -13  0  0   14  4 50    36   110   -77  141 38 14  142  7  3  140 23  3  143 18 56
                                                         Latitude   Latitude   Latitude   Latitude
    140  0  0   -16  6 47   14  6 25    35   107   -74  -15 43 46  -16 29 26  -13 39 43  -18 19 45
    139  0  0   -17 32 37   14  7 10    35   107   -72  -17 11  1  -17 53 55  -15 15 25  -19 38 12

    138  0  0   -18 51  3   14  7 52    35   106   -71  -18 30 37  -19 11 15  -16 41 48  -20 50 29
    137  0  0   -20  3 11   14  8 30    34   105   -69  -19 43 42  -20 22 26  -18  0 29  -21 57 25
    136  0  0   -21  9 49   14  9  7    34   105   -68  -20 51 10  -21 28 17  -19 12 38  -22 59 34
    135  0  0   -22 11 36   14  9 41    33   104   -67  -21 53 39  -22 29 22  -20 19  7  -23 57 28
    134  0  0   -23  9  2   14 10 13    33   104   -65  -22 51 42  -23 26 13  -21 20 38  -24 51 29

    133  0  0   -24  2 34   14 10 44    32   103   -64  -23 45 46  -24 19 12  -22 17 43  -25 41 59
    132  0  0   -24 52 30   14 11 13    31   103   -63  -24 36 12  -25  8 41  -23 10 48  -26 29 15
    131  0  0   -25 39 11   14 11 41    31   103   -62  -25 23 18  -25 54 56  -24  0 15  -27 13 31
    130  0  0   -26 22 49   14 12  7    30   103   -61  -26  7 19  -26 38 12  -24 46 23  -27 54 59
    129  0  0   -27  3 39   14 12 32    30   103   -60  -26 48 30  -27 18 42  -25 29 26  -28 33 52

    128  0  0   -27 41 52   14 12 56    29   103   -59  -27 27  1  -27 56 36  -26  9 39  -29 10 19
    127  0  0   -28 17 36   14 13 19    28   103   -58  -28  3  2  -28 32  4  -26 47 11  -29 44 27
    126  0  0   -28 51  1   14 13 41    28   103   -57  -28 36 42  -29  5 14  -27 22 14  -30 16 25
    125  0  0   -29 22 14   14 14  2    27   103   -56  -29  8 10  -29 36 14  -27 54 56  -30 46 19
    124  0  0   -29 51 23   14 14 22    26   103   -55  -29 37 30  -30  5 10  -28 25 24  -31 14 16

    123  0  0   -30 18 32   14 14 41    26   103   -54  -30  4 51  -30 32  8  -28 53 46  -31 40 19
    122  0  0   -30 43 46   14 14 59    25   103   -53  -30 30 16  -30 57 12  -29 20  6  -32  4 35
    121  0  0   -31  7 12   14 15 17    24   104   -52  -30 53 51  -31 20 29  -29 44 31  -32 27  7
    120  0  0   -31 28 52   14 15 34    24   104   -52  -31 15 39  -31 42  1  -30  7  4  -32 47 58
    119  0  0   -31 48 51   14 15 50    23   104   -51  -31 35 45  -32  1 52  -30 27 51  -33  7 14

    118  0  0   -32  7 11   14 16  6    22   104   -50  -31 54 13  -32 20  6  -30 46 54  -33 24 55
    117  0  0   -32 23 56   14 16 21    21   105   -49  -32 11  4  -32 36 45  -31  4 16  -33 41  6
    116  0  0   -32 39  9   14 16 35    21   105   -48  -32 26 21  -32 51 52  -31 20  2  -33 55 48
    115  0  0   -32 52 50   14 16 49    20   105   -48  -32 40  7  -33  5 29  -31 34 12  -34  9  3
    114  0  0   -33  5  3   14 17  2    19   106   -47  -32 52 24  -33 17 38  -31 46 49  -34 20 53

    113  0  0   -33 15 49   14 17 15    19   106   -46  -33  3 13  -33 28 21  -31 57 55  -34 31 20
    112  0  0   -33 25  9   14 17 27    18   107   -45  -33 12 35  -33 37 38  -32  7 31  -34 40 25
    111  0  0   -33 33  4   14 17 39    17   107   -45  -33 20 33  -33 45 32  -32 15 39  -34 48  9
    110  0  0   -33 39 36   14 17 50    16   107   -44  -33 27  6  -33 52  2  -32 22 19  -34 54 32
    109  0  0   -33 44 45   14 18  0    16   108   -43  -33 32 15  -33 57 10  -32 27 32  -34 59 36

    108  0  0   -33 48 31   14 18 11    15   108   -43  -33 36  1  -34  0 56  -32 31 19  -35  3 21
    107  0  0   -33 50 54   14 18 20    14   109   -42  -33 38 24  -34  3 20  -32 33 40  -35  5 47
    106  0  0   -33 51 55   14 18 30    13   109   -41  -33 39 24  -34  4 21  -32 34 33  -35  6 53
    105  0  0   -33 51 32   14 18 38    13   110   -40  -33 39  0  -34  4  1  -32 34  0  -35  6 41
    104  0  0   -33 49 46   14 18 47    12   110   -40  -33 37 12  -34  2 17  -32 31 59  -35  5  8

    103  0  0   -33 46 36   14 18 54    11   111   -39  -33 33 59  -33 59 10  -32 28 30  -35  2 15
    102  0  0   -33 42  0   14 19  2    10   111   -38  -33 29 19  -33 54 38  -32 23 31  -34 58  0

Uncertainty in time = +/- 17 secs

Prediction of 2016 Jan  7.0
