OCCULTATION OF TYC 5212-00403-1 BY 696 Leonora

A 5 second occultation was recorded by Steve Kerr, using a Refractor Telescope and Watec 910BD camera.

One miss was recorded for this event.

View the IOTA update.

  1    S Kerr, Rockhampton, Queensland, Australia
  2(M) A Pearce, Perth, Western Australia, Australia
  3(P) Prediction- IOTA Feed



Leonora occultation__ 20161114


The circle above is plotted at the expected diameter of Leonora. It appears from the miss that the centre line of the event was north of Steve's position, in turn north of the predicted path. The circle has been plotted to fit the observed chord.

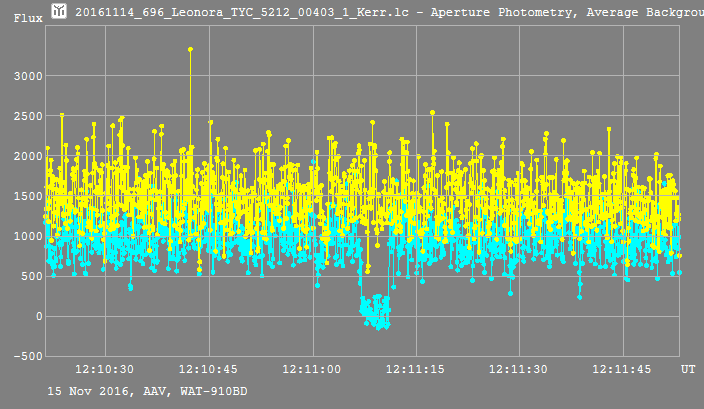

The figure below shows the Tangra light curve of the occultation.

Leonora  occultation__ 20161114

Observational Data:

Observation details for MP ( 696 ) Leonora
By Star              TYC 5212-00403-1
On 2016-11-14  at 12:11:13.0


Observer   Stephen Kerr
Location   Rockhampton, Qld, Australia
Longitude  +150:30
Latitude   -23:16
Altitude   50 m
Datum      WGS84
Telescope Refractor
Aperture    8 cm
Seeing     Slight flickering  Tree tops
Camera Type  Watec 910BD    PAL/CCIR
Camera Delay
Timing     GPS - time inserted Video with frame analysis
Disappearance  12:11:06.71
Reappearance   12:11:11.50
Comments: Some tree limbs in field but not impacting occulted star or comparisons.  Report prepopulated by IOTA Reporting Add-in for OW ver.1.8


Observer   Andrew Pearce
Location   Perth, W.Australia
Longitude  +115:48
Latitude   -31:59
Altitude   24 m
Telescope Newtonian
Aperture   20 cm
Seeing     Steady Clear Bright moon
Camera Type  Visual         NTSC/EIA
Camera Delay
Timing     other Visual, no PE applied


Comments: Timing was based on the Timestamp app for the iPhone (accuracy +/-0.1s). Position was determined using the Raw GPS app for the iPhone. Despite full moon, star was easily visible
