OCCULTATION OF UCAC4 315-077287 BY 139 Juewa

A 0.8 second occultation was recorded by Jacqui Milner, using an SCT Telescope and Mintron 12v1C-EX camera.

View the IOTA update.

  1    J Milner, Bayswater, Victoria, Australia
  2(P) Prediction- IOTA Feed



Juewa occultation__ 20160814


The circle above is plotted at the expected diameter of Juewa. With only one chord it is not possible to tell if Jacqui was north or south of the centre line of the event. The circle has been plotted centred on the observed chord.

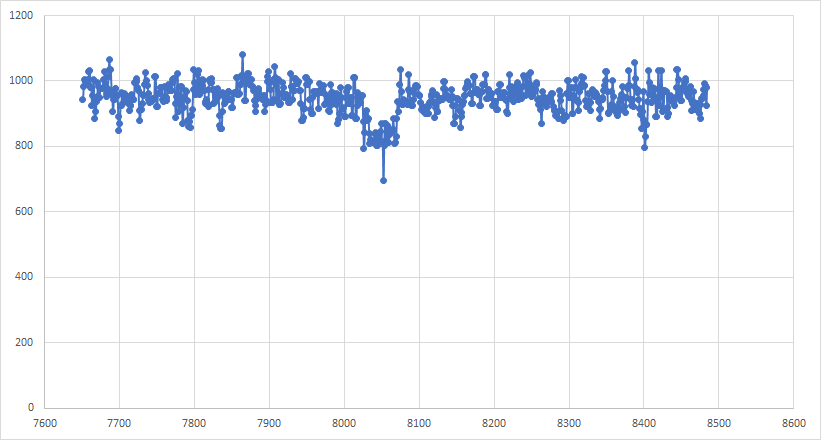

The figure below shows the Tangra light curve of the occultation.

Juewa  occultation__ 20160814

Observational Data:

Observation details for MP ( 139 ) Juewa
By Star              UCAC4 315-077287
On 2016-08-14  at 09:42:24.0


Observer   Jacquie Milner
Location   Bayswater, Vic, AU
Longitude  +145:14
Latitude   -37:50
Altitude   110 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   20 cm
Seeing     Slight flickering Broken cloud
Camera Type  Mintron 12v1C-EX             PAL/CCIR
Camera Delay
Timing     GPS - time inserted Video with frame analysis
Disappearance  09:42:22.10
Reappearance   09:42:22.86
Comments: Cloud cleared at right time for me  Report prepopulated by IOTA Reporting Add-in for OW ver.1.8


Return to 2016 occultation results
