OCCULTATION OF TYC 7400-00266-1 BY 141 Lumen

A 13 second occultation was recorded by Dave Gault, using an SCT Telescope and Flea 3-03S1 camera.

View the IOTA update.

  1    D Gault, Hawkesbury Heights, New South Wales, Australia
  2(P) Prediction- IOTA Feed



Lumen occultation__ 20160723

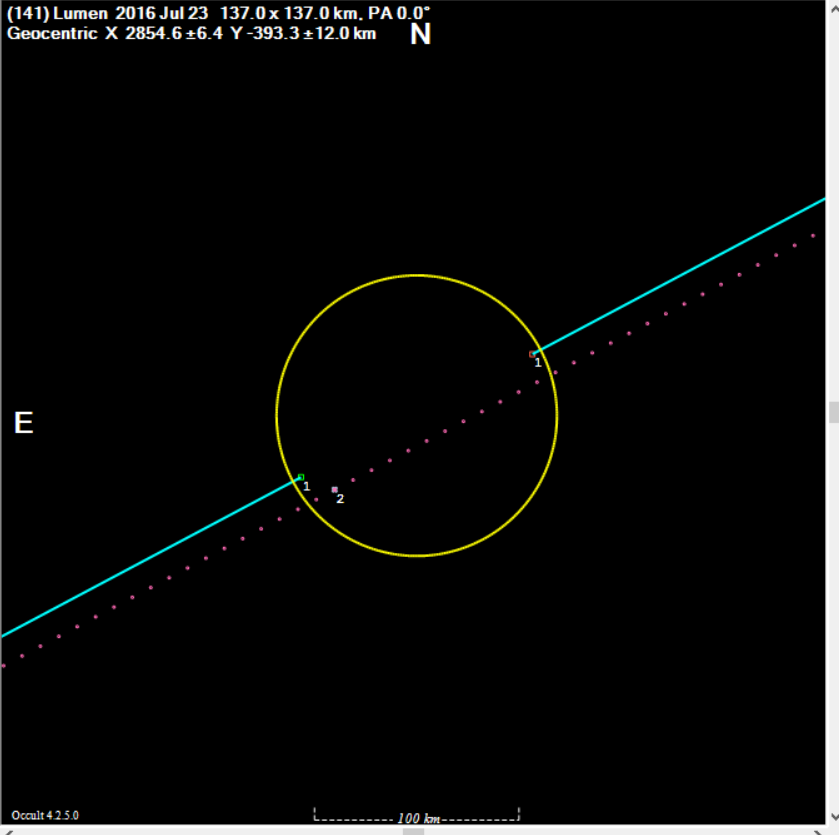

The circle above is plotted at the expected diameter of Lumen. As there is only one chord, it is not possible to tell if Dave was north or south of the centre line of the event. The circle has been plotted on the chord.

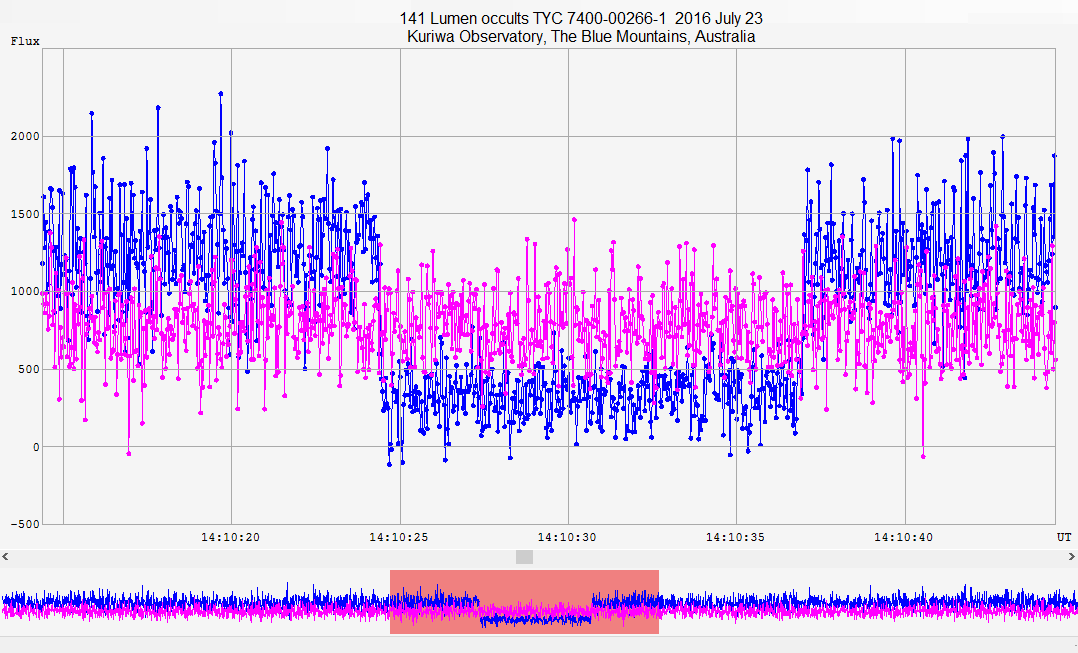

The figure below shows the Tangra light curve of the occultation.

Lumen  occultation__ 20160723

Observational Data:

Observation details for MP ( 141 ) Lumen
By Star              TYC 7400-00266-1
On 2016-07-23  at 14:10:35.0


Observer   Dave Gault
Location   Hawkesbury Heights, NSW, AU
Longitude  +150:38
Latitude   -33:39
Altitude   286 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   30 cm
Seeing     Slight flickering Clear breeze from time to time
Camera Type  Flea3-03S1 with ADVS         ADVS
Camera Delay
Timing     GPS - time inserted Video with frame analysis
Disappearance  14:10:24.44
Reappearance   14:10:37.02
Comments:  Lightcurve from 14:09:31 to 14:11:31 by Tangra v3.5.8 using AperturePhotometry/AverageBackground.
Analysis by AOTA v4.2.1.0. Report prepopulated by IOTA Reporting Add-in for OW ver.1.8

Return to 2016 occultation results
