OCCULTATION OF TYC 5024-00451-1 BY 350 Ornamenta
20160711


A 4 second occultation was recorded by Peter Graham, using an SCT Telescope and Watec 910BD camera.

An 8 second occultation was recorded by Graeme McKay, using an SCT Telescope and Watec 120N+ camera.

An 11 second occultation was recorded by Murray Forbes, using an SCT Telescope and Watec 120N+ camera.

A 7 second occultation was recorded by Bill Allen, using an SCT Telescope and Watec 910BD camera.

A 13 second occultation was recorded by Gordon Hudson, using a Refractor Telescope and Watec 120N+ camera.

Two misses were recorded for this event.

View the IOTA update.

Observers:
  1    P Graham, Martinborough, Wairarapa, New Zealand
  2(M) D Watson, Whakatane, Bay of Plenty, New Zealand
  3(M) B Loader, Darfield, Canterbury, New Zealand
  4    G McKay, Blenheim, Marlborough, New Zealand
  5    M Forbes, Lower Hutt, Wellington, New Zealand
  6    W Allen, Blenheim, Marlborough, New Zealand
  7    G Hudson, Porirua, Wellington, New Zealand
  8(P) Prediction- IOTA Feed







Ornamenta occultation__ 20160711

Discussion:

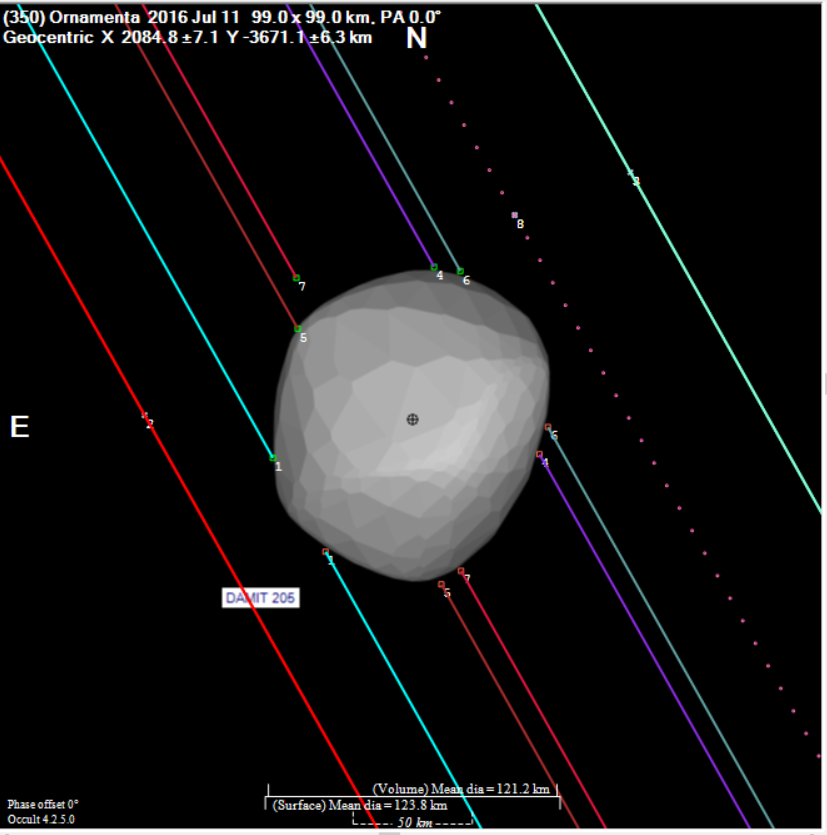

The DAMIT model has been plotted to fit the observed chords.

The chord from Gordon is longer than we would expect. We do not currently have a light curve to verify it.

The event is to the southeast of the predicted path.

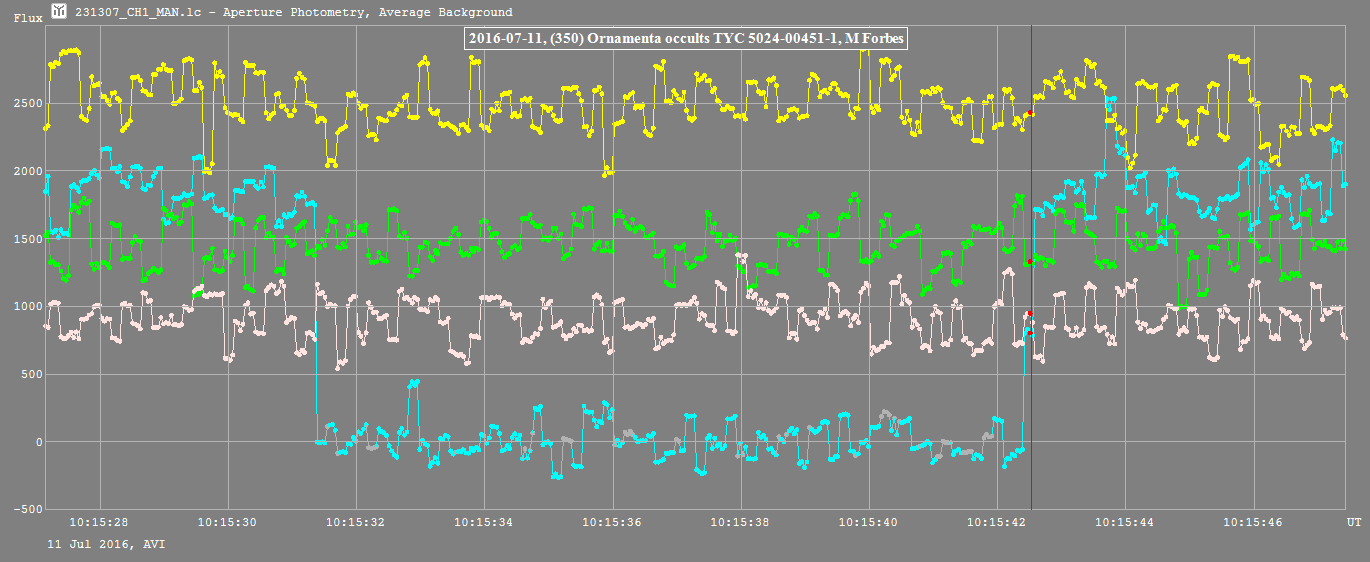

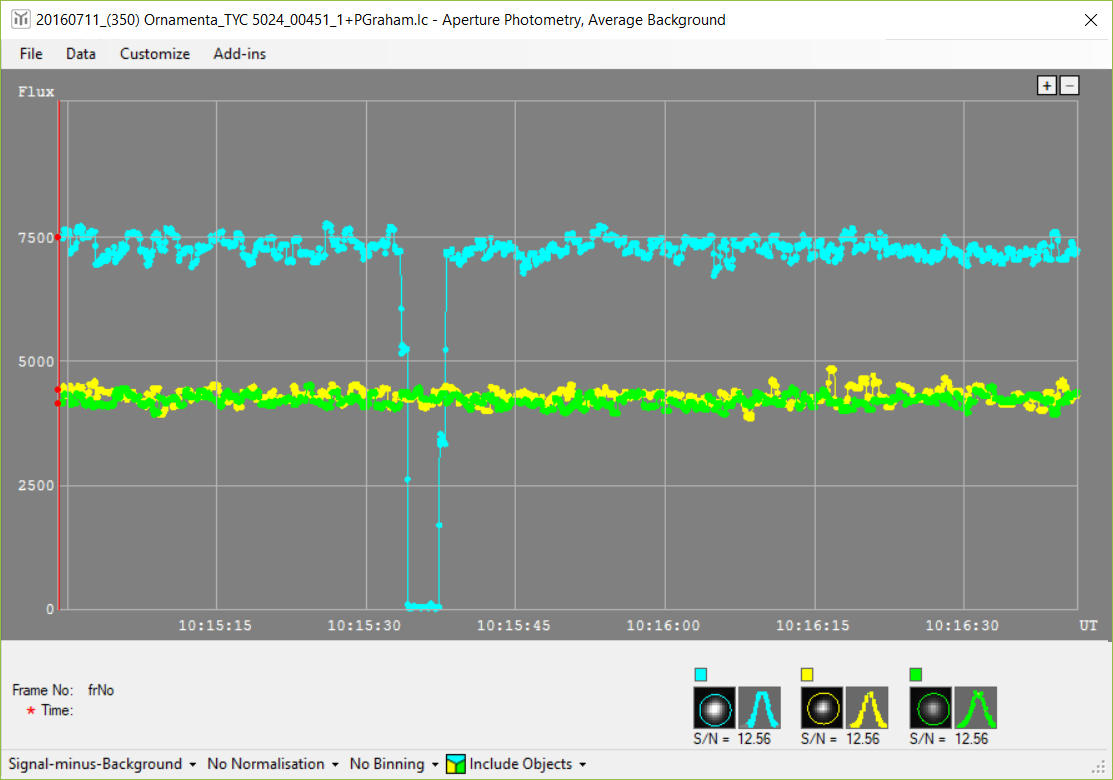

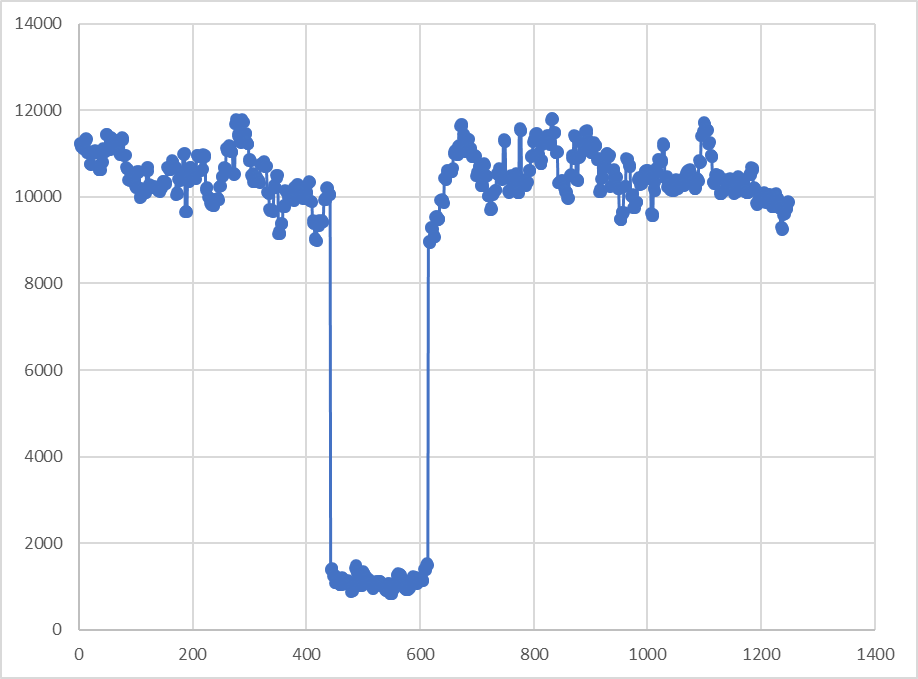

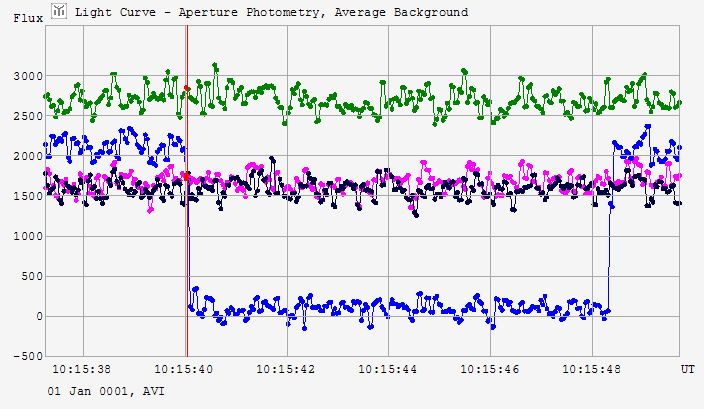

The figures below show the Tangra light curve of the occultation.

Ornamenta  occultation__ 20160711

Ornamenta  occultation__ 20160711

Ornamenta  occultation__ 20160711

Ornamenta  occultation__ 20160711

Observational Data:

Observation details for MP ( 350 ) Ornamenta
By Star              TYC 5024-00451-1
On 2016-07-11  at 10:15:41.0

_______________________________

Observer   PBGraham
Location   Martinborough, NZ
Longitude  +175:29
Latitude   -41:14
Altitude   73 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   25 cm
Seeing     Steady Thin cloud < 2 2degC humidity 100%
Camera Type  Watec 910BD    PAL/CCIR
Camera Delay
Timing     GPS - time inserted Video with frame analysis
Disappearance  10:15:33.39
Reappearance   10:15:37.55
Comments:

_______________________________

Observer   Diana Watson
Location   Thornton near Whakatane, NZ
Longitude  +176:51
Latitude   -37:55
Altitude   3 m
Datum      Other
Telescope SCT including Cass and Mak
Aperture  200 cm
Seeing     Steady Clear other - list in comments
Camera Type  Visual         Other
Camera Delay
Timing     Tape Recorder + time signal Visual, no PE applied

Missed

Comments: Bright moon light.

_______________________________

Observer   B. Loader
Location   Darfield
Longitude  +172:06
Latitude   -43:28
Altitude   210 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   25 cm
Seeing     Slight flickering Clear
Camera Type  Watec 910BD    AAV-PAL
Camera Delay
Timing     GPS - time inserted Video with frame analysis

Missed

Comments:   Report prepopulated by IOTA Reporting Add-in for OW ver.1.8

_______________________________

Observer   Graeme McKay
Location   Blenheim
Longitude  +173:57
Latitude   -41:32
Altitude   18 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   28 cm
Seeing     Steady Clear
Camera Type  Watec 120N+    PAL/CCIR
Camera Delay
Timing     GPS - time inserted Video with frame analysis
Disappearance  10:15:39.96
Reappearance   10:15:48.28
Comments: Clear conditions  Report prepopulated by IOTA Reporting Add-in for OW ver.1.8

_______________________________

Observer   M Forbes
Location   Lower Hutt, NZ
Longitude  +174:58
Latitude   -41:09
Altitude   26 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   20 cm
Seeing     Steady Clear
Camera Type  Watec 120N+    PAL/CCIR
Camera Delay
Timing     GPS - time inserted Video with frame analysis
Disappearance  10:15:31.01
Reappearance   10:15:42.36
Comments:   Report prepopulated by IOTA Reporting Add-in for OW ver.1.8

_______________________________

Observer   W H Allen
Location   Blenheim
Longitude  +173:50
Latitude   -41:29
Altitude   38 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   40 cm
Seeing     Steady Clear
Camera Type  Watec 910BD    NTSC/EIA
Camera Delay
Timing     GPS - time inserted Video with frame analysis
Disappearance  10:15:40.73
Reappearance   10:15:47.65
Comments:
