OCCULTATION OF TYC 6780-00761-1 BY 583 Klotilde
20160604


A 7 second occultation was recorded by Steve Kerr, using a refractor telescope and Watec 910BD Camera.

View the IOTA update.

Observers:
  1    S Kerr, Rockhampton, Queensland, Australia
  2(P) Prediction- IOTA Feed







Klotilde occultation__ 20160604

Discussion:

The circle above is plotted at the expected diameter of Klotilde. With only one chord it is not possible to determine whether Steve was north or south of the central line of the event, but he appears to have been close to it, which suggests the event was slightly north of the predicted path. The circle has been plotted on the observed chord.

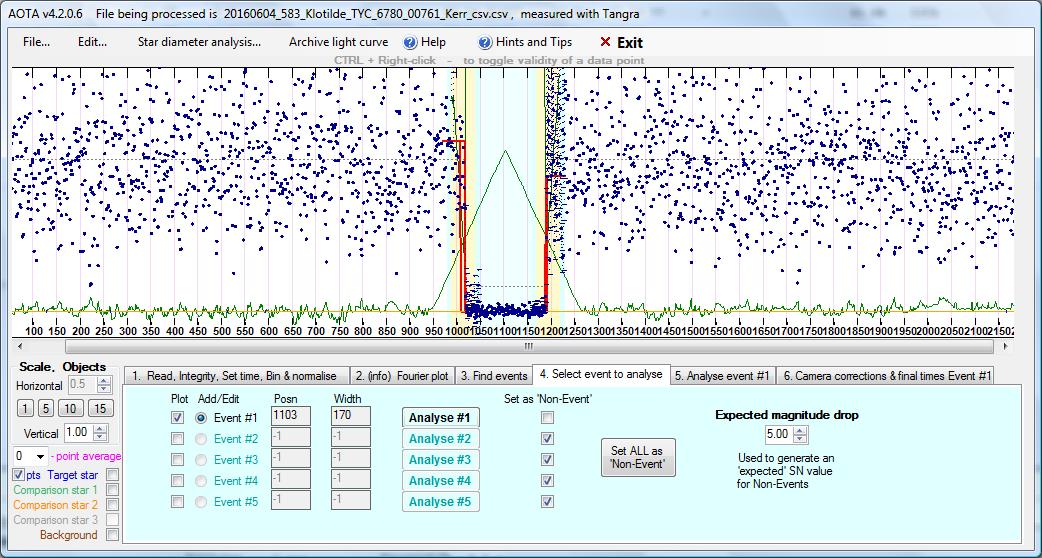

The figure below shows the Tangra light curve of the occultation.

Klotilde  occultation__ 20160604

Observational Data:

Observation details for MP ( 583 ) Klotilde
By Star              TYC 6780-00761-1
On 2016-06-04  at 18:11:20.0

_______________________________

Observer   S. Kerr
Location   Rockhampton
Longitude  +150:30
Latitude   -23:16
Altitude   50 m
Datum      WGS84
Telescope Refractor
Aperture    8 cm
Seeing     Slight flickering Clear
Camera Type  Watec 910BD    PAL/CCIR
Camera Delay
Timing     GPS - time inserted Video with frame analysis
Disappearance  18:11:11.39
Reappearance   18:11:18.48
Comments:   Report prepopulated by IOTA Reporting Add-in for OW ver.1.8
