OCCULTATION OF UCAC2 22274425 BY 24 Themis
20150924


A 4 and an 8 second occultation were recorded by John Broughton, using Newtonian telescopes at two distinct locations, with an LN-300-11673 and a Watec 120N+ camera.

View the IOTA update.

Observers:
  1    J Broughton, Brunswick Heads, New South Wales, Australia
  2    J Broughton, Wardell, New South Wales, Australia
  3(P) Prediction- IOTA Feed







Themis occultation__ 20150924

Discussion:

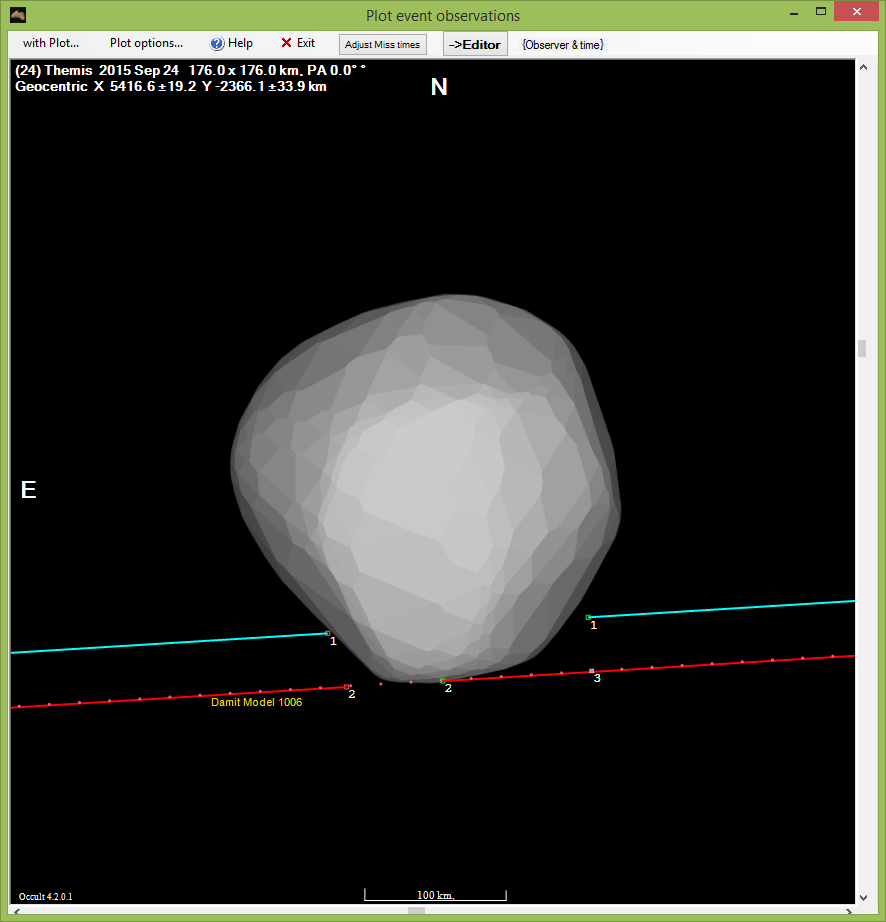

The shorter chord lies approximately on the predicted path. It appears from the chords that the actual event was to the north of the predicted path.

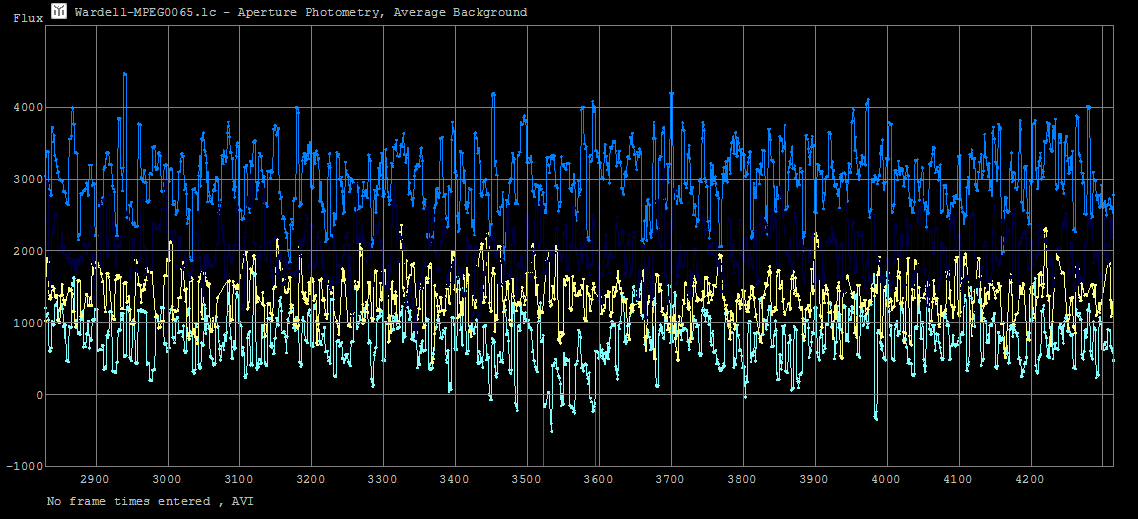

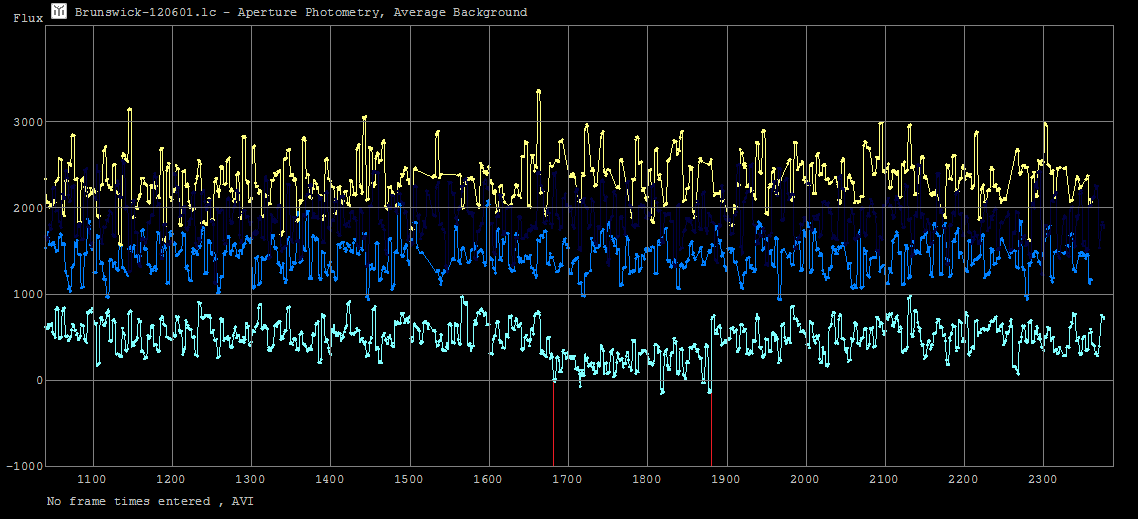

The figures below show the Tangra light curve of the occultation.

Themis  occultation__ 20150924

Themis  occultation__ 20150924

Observational Data:

Observation details for MP ( 24 ) Themis
By Star              UCAC2 22274425
On 2015-09-24  at 12:07:16.0

_______________________________

Observer   John Broughton
Location   Brunswick Heads, NSW, AU
Longitude  +153:32
Latitude   -28:32
Altitude   19 m
Datum      WGS84
Telescope Newtonian
Aperture   25 cm
Seeing     Steady Clear
Camera Type  LN-300-11673   PAL/CCIR
Camera Delay
Timing     GPS - other linking Video with frame analysis
Disappearance  12:07:08.28
Reappearance   12:07:16.92
Comments:

_______________________________

Observer   John Broughton
Location   Wardell, NSW, AU
Longitude  +153:28
Latitude   -28:57
Altitude   20 m
Datum      WGS84
Telescope Newtonian
Aperture   25 cm
Seeing     Steady Clear
Camera Type  Watec 120N+    PAL/CCIR
Camera Delay
Timing     GPS - other linking Video with frame analysis
Disappearance  12:07:07.81
Reappearance   12:07:11.01
Comments:
