A Two chords were recorded by John Broughton, using vide OSD technique.
One clearly observed miss was recorded for this event.

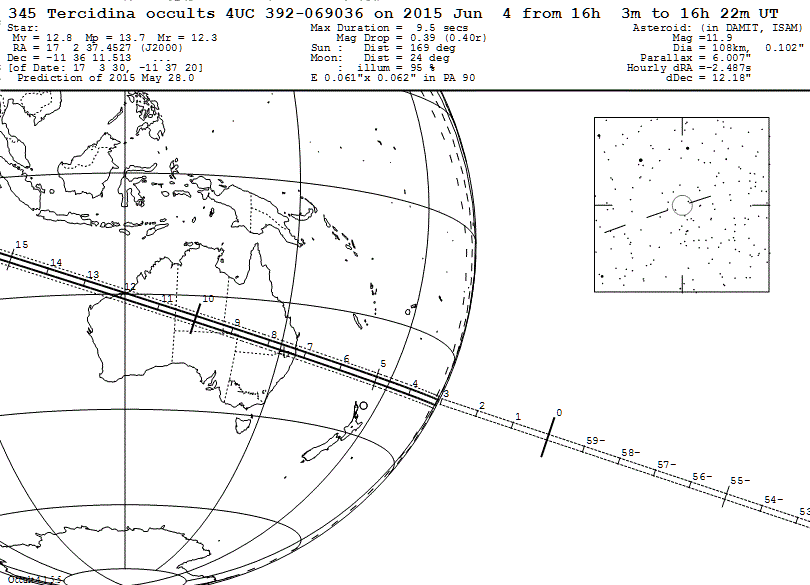

View the updated prediction.
Observers: 1(M) J Bradshaw,ord Valley, Qld, Australia 2 J Broughton,Reedy Creek, QLD, AU 3 J Broughton,Condong, NSW, AU 4(P) Prediction, TT14, May 28

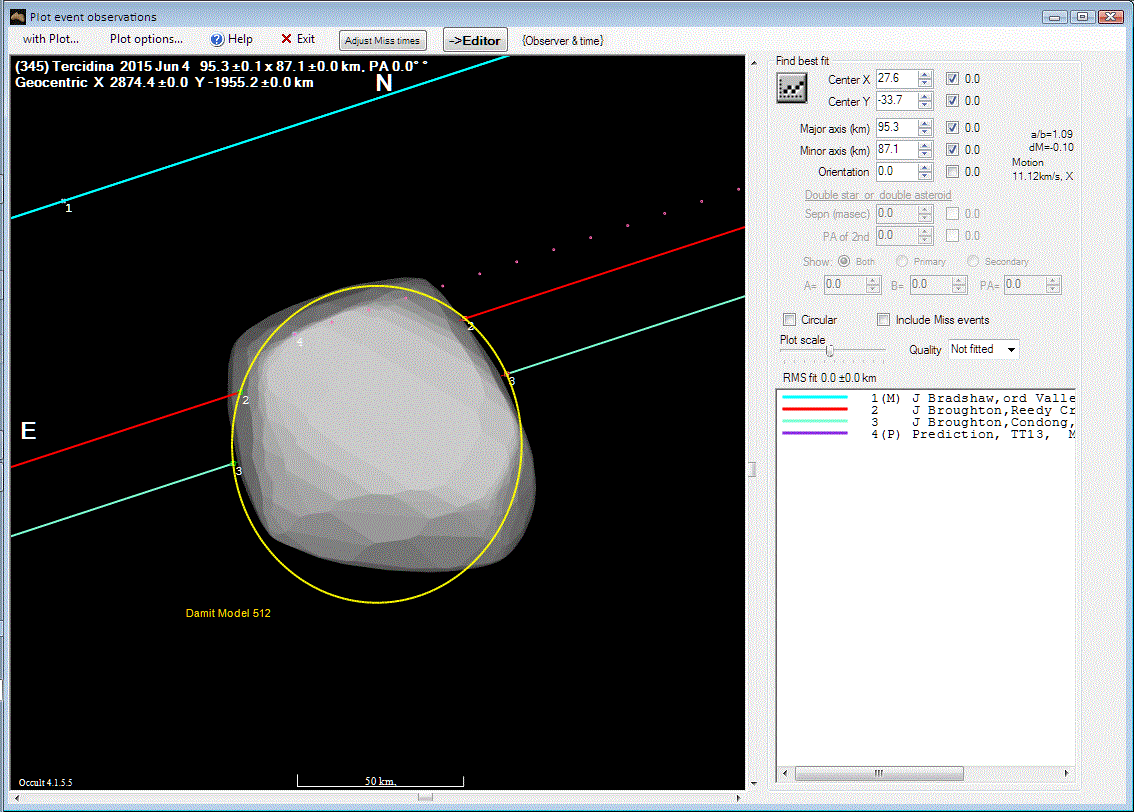

The ellipse above is plotted at the best fit axis ratio as determined by Occult. With 2 chords we can be confident of the path of Tercidina and that it was south of the predicted line. The Damit 3D model has been overlaid on the measured ellipse and shows reasonable fit. Another chord further south might have improved that.
The figure below shows the Tangra light curve of John's occultations.
Observation details for MP ( 345 ) Tercidina By Star UCAC4 392-069036 On 2015-06-04 at 16:07:19.0 _______________________________ Observer Jonathan Bradshaw Location Samford Valley, Qld, Australia Longitude +152:50 Latitude -27:22 Altitude 80 m Datum WGS84 Telescope SCT including Cass and Mak Aperture 36 cm Seeing Steady Clear Camera Type G-Star PAL/CCIR Camera Delay Timing GPS - time inserted Video with frame analysis Missed Comments: Report prepopulated by IOTA Reporting Add-in for OW ver.1.8 _______________________________ Observer John Broughton Location Reedy Creek, QLD, AU Longitude +153:23 Latitude -28:06 Altitude 66 m Datum WGS84 Telescope SCT including Cass and Mak Aperture 25 cm Seeing Steady Clear Camera Type WAT120N+ PAL/CCIR Camera Delay Timing GPS - time inserted Video with frame analysis Disappearance 16:07:05.81 Reappearance 16:07:11.89 Comments: _______________________________ Observer John Broughton Location Condong, NSW, AU Longitude +153:27 Latitude -28:17 Altitude 7 m Datum WGS84 Telescope Newtonian Aperture 32 cm Seeing Steady Clear Camera Type WAT120N+ PAL/CCIR Camera Delay Timing GPS - other linking Video with frame analysis Disappearance 16:07:04.77 Reappearance 16:07:12.17 Comments:
