OCCULTATION OF UCAC4_379-078122 BY 487 Venetia
2015 February 24


A 2.5 second occultation was recorded by Graeme McKay, using video technique.

Two clearly observed misses were recorded for this event.

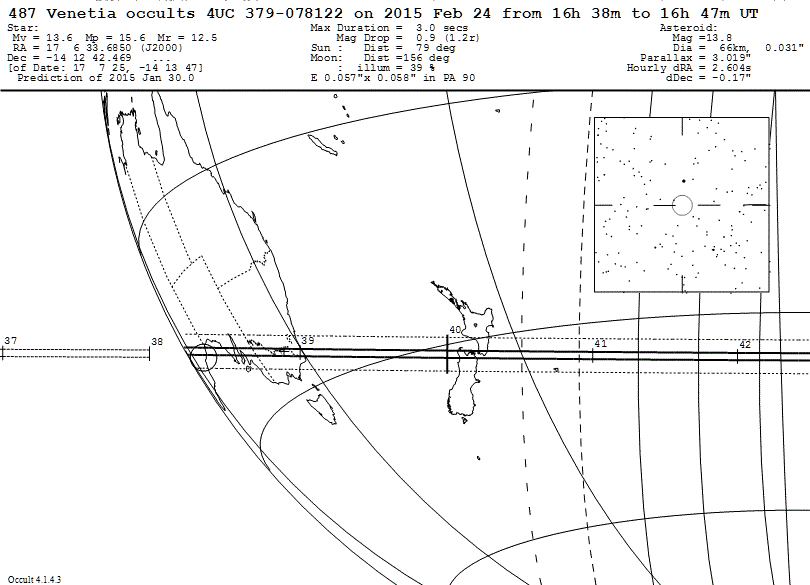

View the TT14 prediction.

Observers:
  1(M) P. Graham, Martinborough,NZ
  2    G McKay,Blenheim, NZ
  3(M) D Hooper,Melbourne, Australia
  4(M) B Loader,Darfield,NZ
  5(P) Prediction, TT14  30 Jan


Venetia occultation__ 2015 February 24

Discussion:

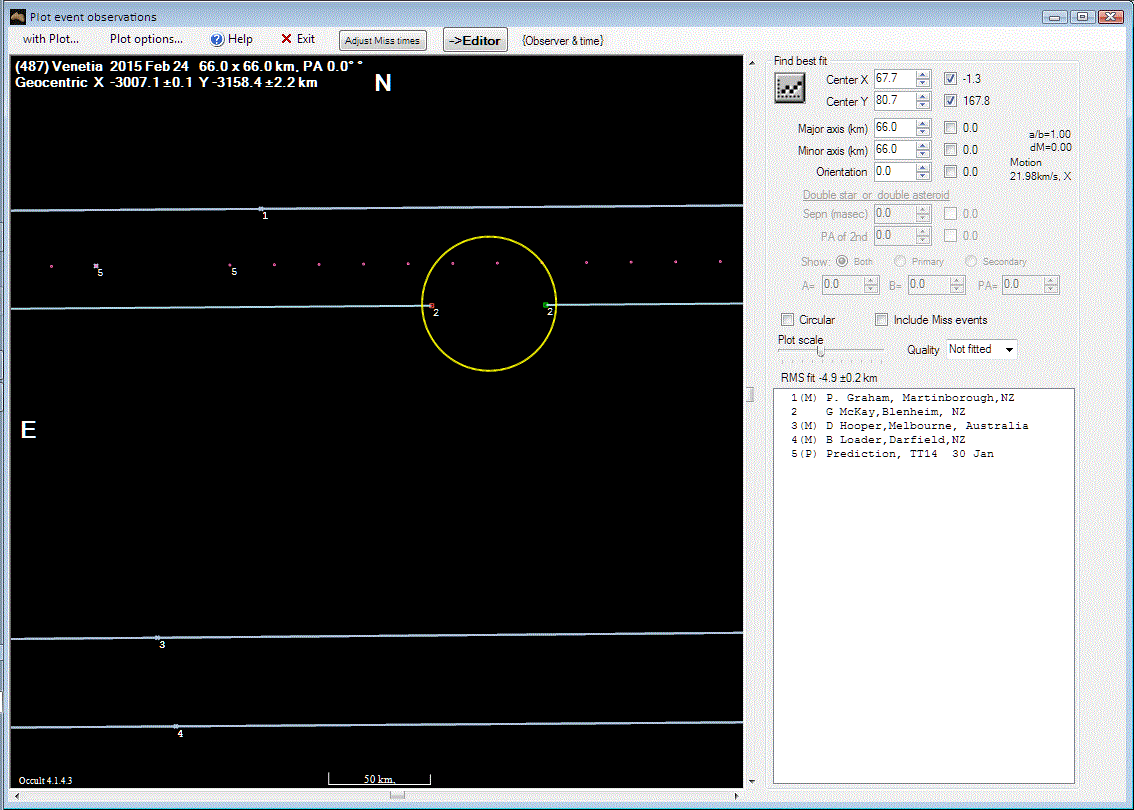

The circle above is plotted at the expected 66 km diameter of Venetia. With only one chord it is not possible to determine whether Graeme was north or south of the central line of the event.

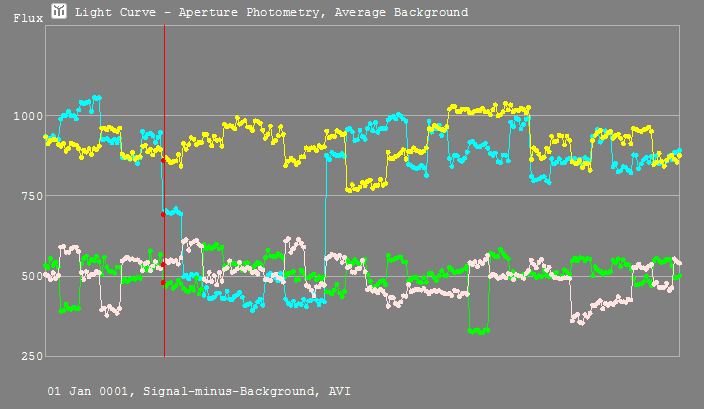

The figure below shows the Tangra light curve of the occultation.

Venetia occultation__ 2015 February 24

Peter Graham observed the event and his path is very close to the northern edge of Venetia if the circle is drawn to the North of Graeme's chord but the only dip in Peter's light curve is just 2 samples long and is tens of seconds later so his observation has been treated as a miss and sadly does not help to constrain the position of Venetia.

Observational Data:


Observation details for MP ( 487 ) Venetia
By Star              UCAC4 379-078122
On 2015-02-24  at 16:40:11.0

_______________________________

Observer   Graeme McKay
Location   Blenheim, NZ
Longitude  +173:57
Latitude   -41:32
Altitude   18 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   28 cm
Seeing     Steady Clear
Camera Type  WAT120N+       PAL/CCIR
Camera Delay -0.19
Timing     GPS - time inserted Video with frame analysis
Disappearance  16:40:16.85
Reappearance   16:40:19.41
Comments:   Report prepopulated by IOTA Reporting Add-in for OW ver.1.8

_______________________________

Observer   B. Loader
Location   Darfield,NZ
Longitude  +172:06
Latitude   -43:28
Altitude   210 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   25 cm
Seeing     Strong flickering Clear
Camera Type  WAT910BD       AAV-PAL
Camera Delay -0.06
Timing     GPS - time inserted Video with frame analysis

Missed

Comments:   Report prepopulated by IOTA Reporting Add-in for OW ver.1.8

_______________________________

Observer   Dean Hooper
Location   Melbourne, Australia
Longitude  +145:00
Latitude   -37:56
Altitude   28 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   20 cm
Seeing     Steady Clear
Camera Type  WAT910HX       PAL/CCIR
Camera Delay -0.33
Timing     GPS - time inserted Video with frame analysis

Missed

Comments: MISS - Light curve data generated and inspected using Tangra v3.3.6 and Limovie Ver.0.9.97.3hP5.

_______________________________

Observer   Peter Graham
Location   Martinborough NZ
Longitude  +175:29
Latitude   -41:14
Altitude   73 m
Datum      WGS84
Telescope
Aperture   25 cm
Seeing     Slight flickering Clear
Camera Type  WAT120N+       PAL/CCIR
Camera Delay 2.59
Timing     GPS - time inserted Video with frame analysis

Missed

Comments: A short  2 sample dip but it does not align with Graeme McKay's
