OCCULTATION OF TYC 5713-00429-1 BY 386 Siegena
2014 November 08

A 5 second occultation was recorded by Bill Hanna, using ADVS Video technique.

No clearly observed misses were recorded for this event.

View the updated prediction.

  1    W Hanna,Alice Springs, Australia
  2(P) Prediction, 27 Oct


Siegena occultation__ 2014 November 08

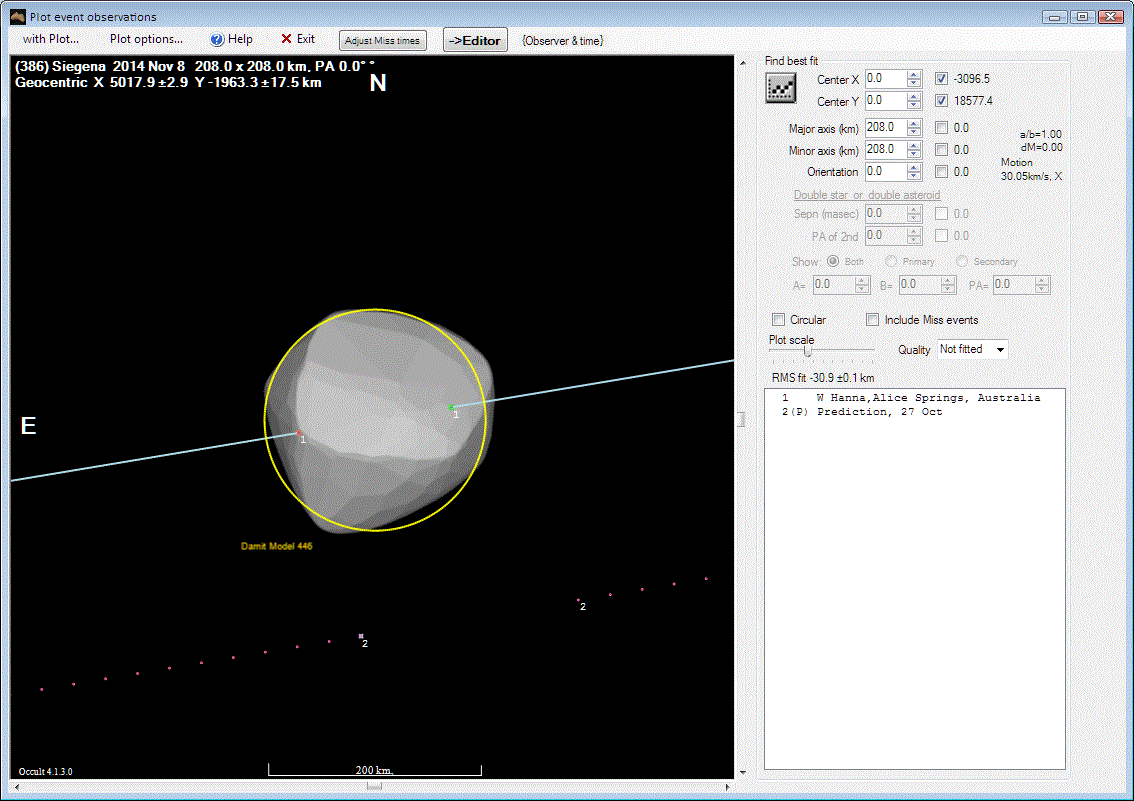

The circle above is plotted at the expected 208 km diameter of Siegena. With only one chord it is not possible to determine whether Bill was north or south of the central line of the event. The Damit 3D model has been overlaid on the measured circle and the size adjusted to give approximately the same area.

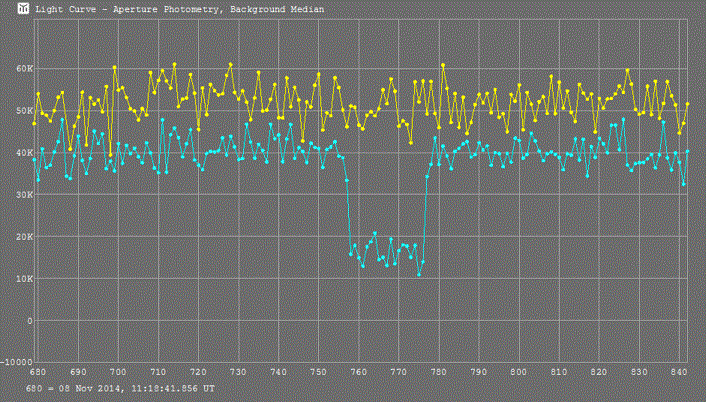

The figure below shows the Tangra light curve of the occultation.

Siegena occultation__ 2014 November 08

Observational Data:

Observation details for MP ( 386 ) Siegena
By Star              TYC 5713-00429-1
On 2014-11-08  at 11:19:07.0


Observer   William Hanna
Location   Alice Springs, Australia
Longitude  +133:53
Latitude   -23:42
Altitude   584 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   36 cm
Seeing     Steady Clear
Camera Type  Grasshopper Express with ADVS              ADVS
Camera Delay 0
Timing     GPS - time inserted Video with frame analysis
Disappearance  11:19:02.66
Reappearance   11:19:07.46
Comments: Gamma 1.0, gain 29dB Gentle breeze, 33C.
Time as extracted with AOTA.
