OCCULTATION OF TYC_0630-00945-1 BY 152 Atala
2014 October 14


A 5.44 second occultation was recorded by John Broughton, using Video OSD technique.

He also observed a clear miss from a remote station.

View the updated prediction.

Observers:
  1    J Broughton,Reedy Creek, QLD, AU
  2(M) J Broughton,Eagleby, QLD, AU
  3(P) Prediction, 5 Oct




Atala occultation__ 2014 October 14

Discussion:

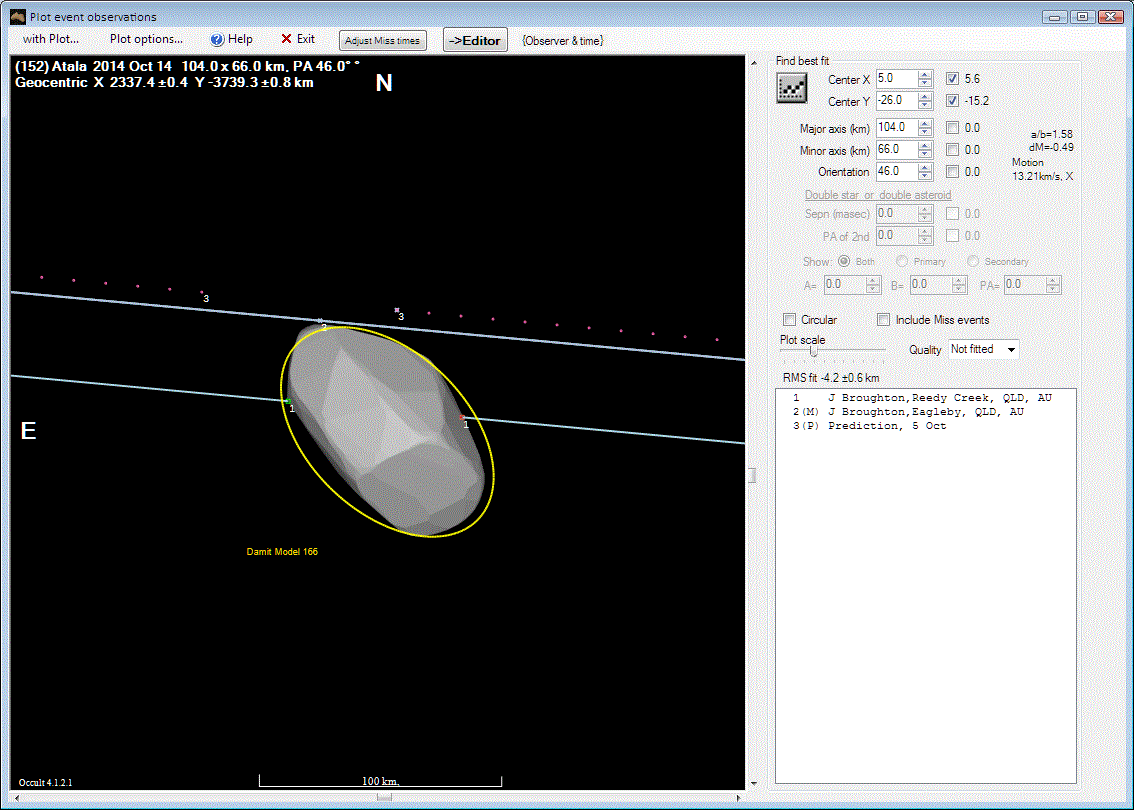

The ellipse above is plotted at the maximum axis ratio as determined by lightcurve inversion data. this happily agrees fairly well with the plotted 3D shape With only one chord and a constraining miss we we can assert that John was north of the central line of the event and that the event was south of the predicted path. However we cannot be sure by how much. Given the similar slopes of the two edges there is quite a large range of possible solutions The DAMIT 3D model has been overlaid on the measured ellipse and shows reasonable fit to the ellipse from light curve data.

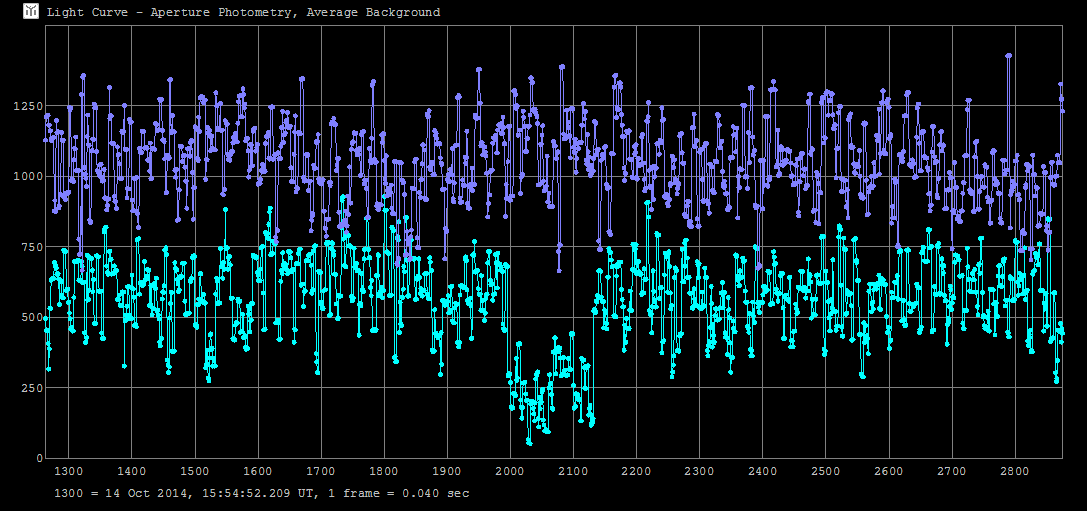

The figure below shows the Tangra light curve of the occultation.

Atala occultation__ 2014 October 14

Observational Data:


Observation details for MP ( 152 ) Atala
By Star              TYC 0630-00945-1
On 2014-10-14  at 15:55:25.0

_______________________________

Observer   John Broughton
Location   Reedy Creek, QLD, AU
Longitude  +153:23
Latitude   -28:06
Altitude   66 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   25 cm
Seeing     Slight flickering Clear
Camera Type  WAT120N+       PAL/CCIR
Camera Delay -0.11
Timing     GPS - time inserted Video with frame analysis
Disappearance  15:55:19.94
Reappearance   15:55:25.38
Comments:

_______________________________

Observer   John Broughton
Location   Eagleby, QLD, AU
Longitude  +153:12
Latitude   -27:43
Altitude   8 m
Datum      WGS84
Telescope Newtonian
Aperture   32 cm
Seeing     Slight flickering Clear
Camera Type  WAT120N+       PAL/CCIR
Camera Delay -0.11
Timing     GPS - other linking Video with frame analysis

Missed

Comments:
