An 11 second occultation was recorded by Dave Gault, using video OSD technique.
One clearly observed miss was recorded for this event.

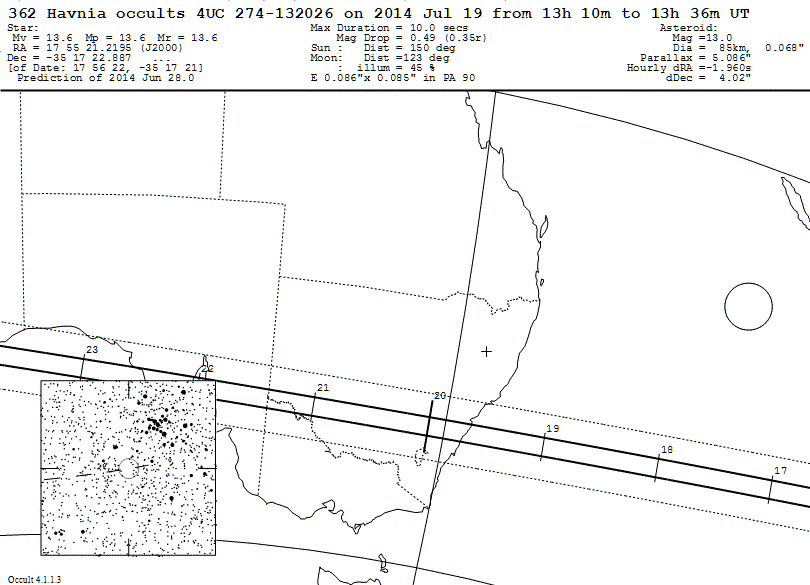

View the updated prediction.
Observers: 1 D Gault,Kuriwa Observatory, NSW, AU 2(M) D Herald,Murrumbateman, NSW, AU 3(P) Prediction, TT14 28 June

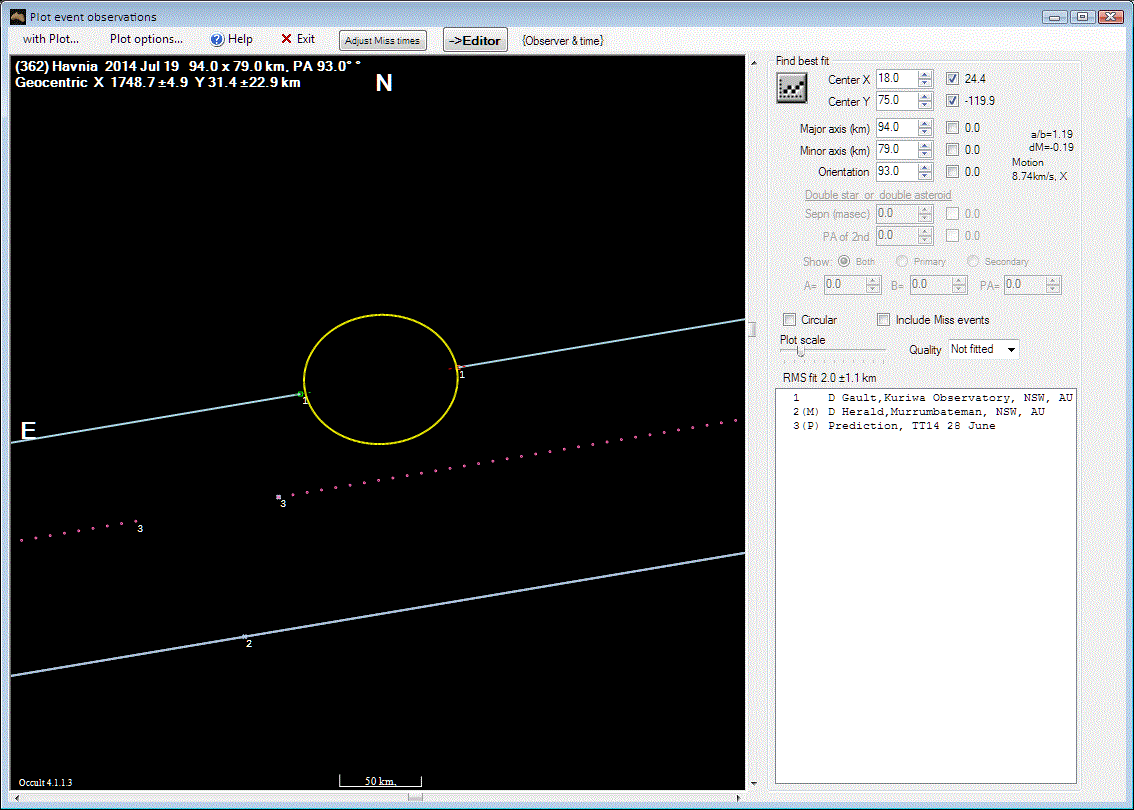

The ellipse above is plotted at an arbitrary orientation to make the
longer axis fit the chord and the shorter axis adjusted to give the
same area as a circle with the same area as a circle with the
expected 89 km diameter of Havnia.
With only one chord it is not possible to determine whether Dave was north or south of the central line of the event so the plot has been centered on the chord.
However, assuming the updated prediction was approximately correct the greater than expected length of the chord would suggest that the path might lie close to the central portion of the asteroid.

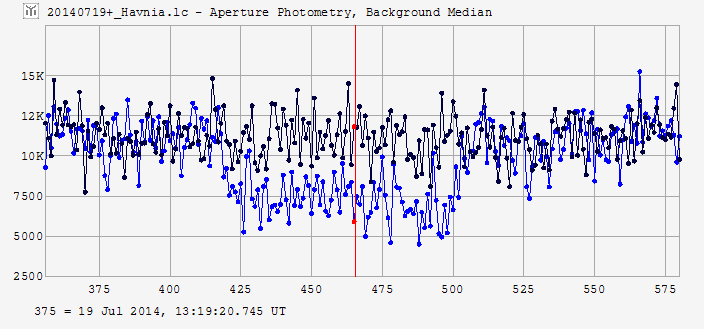

The figure below shows the Tangra light curve of the occultation.
Observation details for MP ( 362 ) Havnia By Star UCAC4 274-132026 On 2014-07-19 at 13:19:44.0 _______________________________ Observer Dave Gault Location Kuriwa Observatory, NSW, AU Longitude +150:38 Latitude -33:39 Altitude 286 m Datum WGS84 Telescope SCT including Cass and Mak Aperture 30 cm Seeing Steady Clear Camera Type Grasshopper Express with ADVS ADVS Camera Delay 0 Timing GPS - time inserted Video with frame analysis Disappearance 13:19:26.75 Reappearance 13:19:37.78 Comments: Lightcurve from 13:18:30 to 13:21:00 by Tangra v3.1.8 using AperturePhotometry/BackgroundMedian. Analysis by AOTA v18.104.22.168. Report prepopulated by IOTA Reporting Add-in for OW ver.1.8 _______________________________ Observer Dave Herald Location Murrumbateman, NSW, AU Longitude +148:59 Latitude -34:57 Altitude 594 m Datum WGS84 Telescope SCT including Cass and Mak Aperture 40 cm Seeing Steady Clear Camera Type WAT910BD PAL/CCIR Camera Delay -0.06 Timing GPS - time inserted Video with frame analysis Missed Comments: Lightcurve from 13:18:31 to 13:21:00 by Tangra v3.1.8 using AperturePhotometry/BackgroundMedian. Analysis by AOTA v22.214.171.124. Report prepopulated by IOTA Reporting Add-in for OW ver.1.8
