OCCULTATION OF UCAC4 443 102831 BY 130 Elektra
2013 July 10

A 13.52 second occultation was recorded by Brian Loader, using video OSD technique.

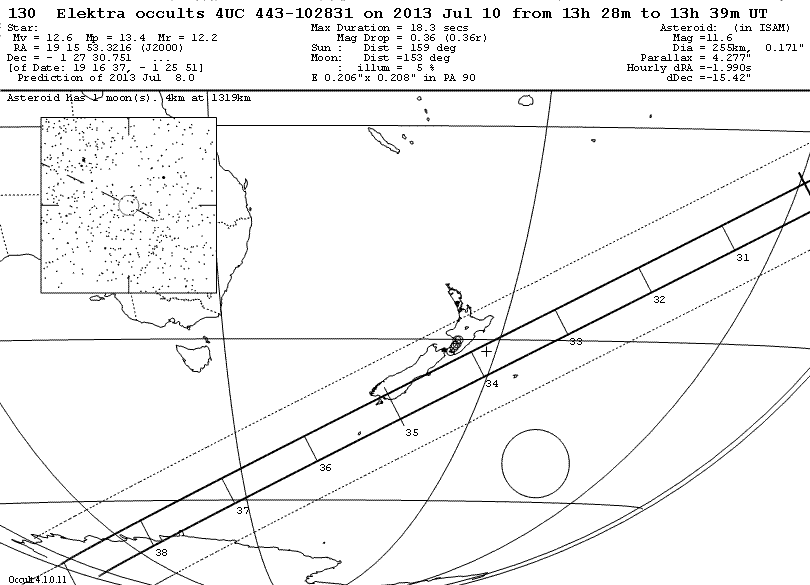

View the updated prediction.

  1    B Loader,Darfield
  2(P) Prediction


Elektra occultation - 2013 July 10


The ellipse above is plotted at the maximum axis ratio as determined by lightcurve inversion data. The ellipse above ispositioned at the best fit axis to the ISAM Model. With only one chord it is not possible to determine whether Brian was north or south of the central line of the event. The /ISAM 3D model has been overlaid on the measured ellipse.

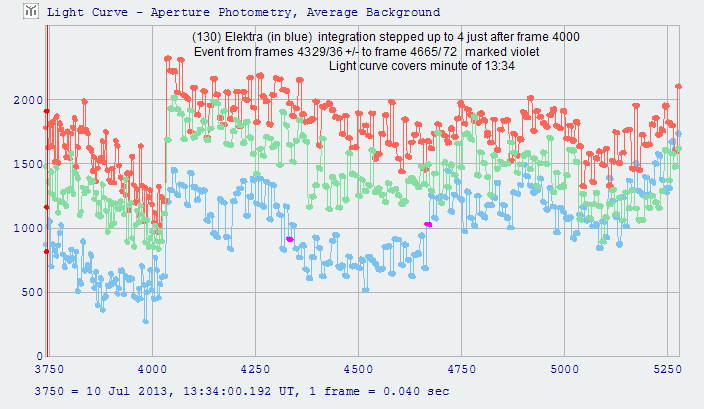

The figure below shows the Tangra light curve of the occultation.

Elektra occultation - 2013 July 10

Observational Data:

Observation details for MP ( 130 ) Elektra
By Star              UCAC4 443-102831
On 2013-07-10  at 13:34:31.0


Observer   B. Loader
Location   Darfield
Longitude  +172:06
Latitude   -43:28
Altitude   210 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   25 cm
Seeing     Slight flickering Broken cloud
Camera Type  WAT120N+       PAL/CCIR
Camera Delay 0.19
Timing     GPS - time inserted Video with frame analysis
Disappearance  13:34:23.00
Reappearance   13:34:36.52
Comments: Through variable cloud.
Resulted in changes to integration during observation.
Slow 4 applies through the time of the event
Report prepopulated by IOTA Reporting Add-in for OW ver.1.7
