OCCULTATION OF UCAC2 19773247 BY 576 Emanuela
2013 March 15

A 3.24 second occultation was recorded by Jonathan Bradshaw, using video OSD technique.

One clearly observed miss was recorded for this event.

View the updated prediction.

  1(M) J Broughton,Reedy Creek, QLD, AU
  2    J Bradshaw,Samord Valley, Qld, AU
  3(P) Prediction


Emanuela occultation - 2013 March 15

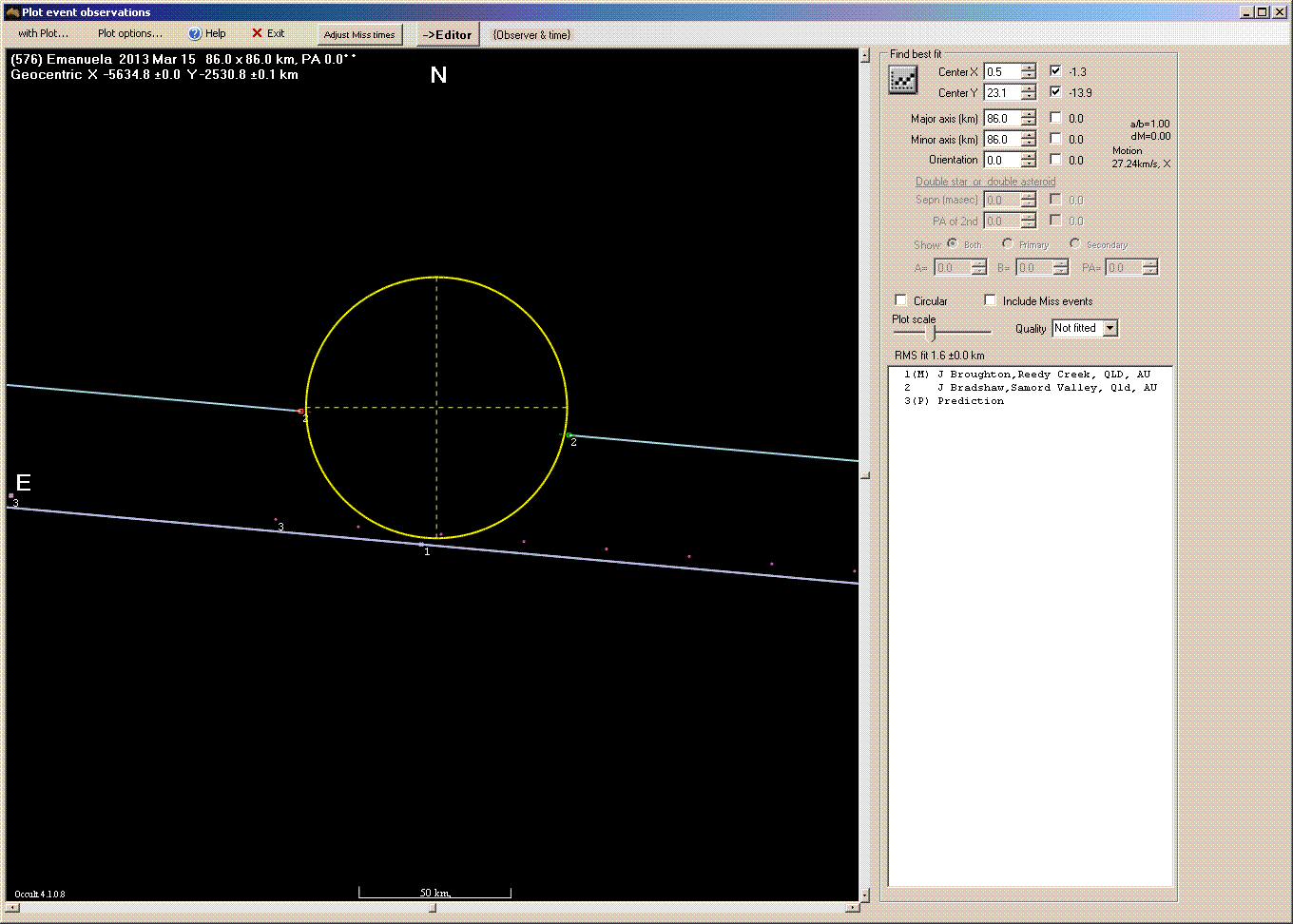

The circle above is plotted at the expected 86 km diameter of Emanuela. With one chord and a contraining miss and the longer than expected chord of about [len]km we can be sure that the chord lies close to the central portion of the asteroid.

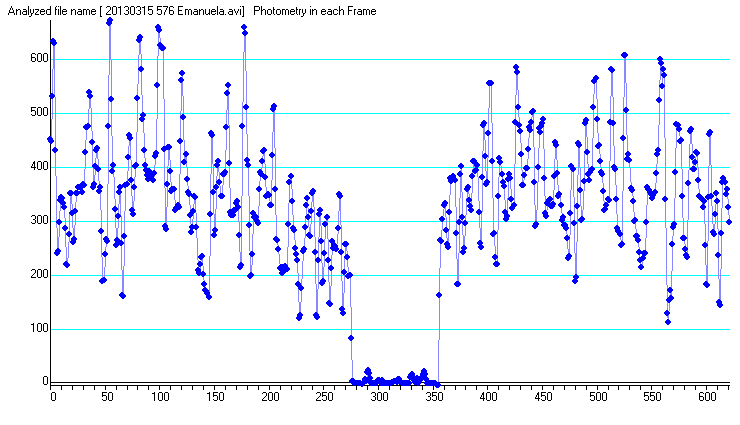

The figure below shows the Limovie light curve of the occultation.

Emanuela occultation - 2013 March 15

Observational Data:

Observation details for MP ( 576 ) Emanuela
By Star              UCAC2 19773247
On 2013-03-15  at 15:07:39.0


Observer   John Broughton
Location   Reedy Creek, QLD, AU
Longitude  +153:23
Latitude   -28:06
Altitude   33 m
Datum      WGS84
Telescope Newtonian
Aperture   31.5 cm
Camera Type  WAT120N        PAL/CCIR
Camera Delay 0.19
Timing     GPS - time inserted Video with frame analysis




Observer   Jonathan Bradshaw
Location   Samford Valley, Qld, Australia
Longitude  +152:50
Latitude   -27:22
Altitude   80 m
Datum      WGS84
Telescope SCT including Cass and Mak
Aperture   36 cm
Seeing     Strong flickering Broken cloud
Camera Type  G-Star         PAL/CCIR
Camera Delay 0
Timing     GPS - time inserted Video with frame analysis
Disappearance  15:07:40.99
Reappearance   15:07:44.23
Comments: Very ordinary conditions, but stayed visible long enough to catch a nice clear event with only 3 frame integration.  Report prepopulated by IOTA Reporting Add-in for OW ver.1.7


Return to 2013 occultation results
