ASTROMETRIC UPDATE:
OCCULTATION BY (834) BURNHAMIA - 2011 Aug 21

[Detailed Finder Charts]


Updated:   2011 JUL 21, 22:30 UT

Event Rank : 46

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

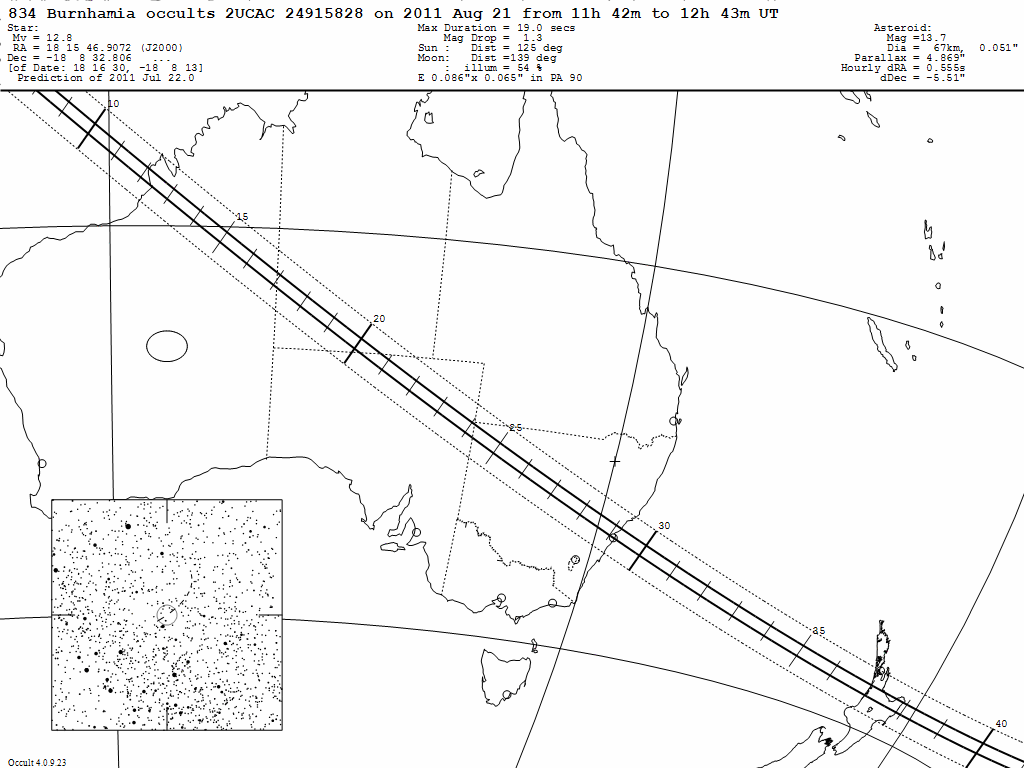

Burnhamia Update Map


On 2011 Aug 21 UT, the 67 km diameter asteroid (834) Burnhamia will occult a 12.8 mag star in the constellation Sagittarius for observers along a path beginning near Broome in WA. The path then moves south-east through central Australia, and into NSW passing near Dubbo and Sydney. The path then passes over North Island New Zealand, passing near Hamilton and Gisborne.

In the case of an occultation, the combined light of the asteroid and the star will drop by 1.3 mag to 13.7 mag (the magnitude of the asteroid) for at most 19.0 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Alice Monet, TMO astrometry for the asteroid kindly provided by Bill Owen, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                   Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                         Latitude   Latitude   Latitude   Latitude
    120  0  0   -15 52 21   12 10 40    87   142   -34  -16 16  8  -15 28 33  -17 23 10  -14 21 23
    121  0  0   -16 41  2   12 11 24    88   154   -35  -17  4 40  -16 17 22  -18 11 18  -15 10 36
    122  0  0   -17 28 47   12 12  8    88   205   -36  -17 52 17  -17  5 16  -18 58 29  -15 58 55
    123  0  0   -18 15 36   12 12 52    88   270   -37  -18 38 57  -17 52 14  -19 44 43  -16 46 18
    124  0  0   -19  1 27   12 13 35    87   286   -38  -19 24 38  -18 38 14  -20 29 59  -17 32 43

    125  0  0   -19 46 19   12 14 17    86   292   -39  -20  9 21  -19 23 16  -21 14 15  -18 18 11
    126  0  0   -20 30 11   12 14 59    84   294   -40  -20 53  4  -20  7 17  -21 57 32  -19  2 39
    127  0  0   -21 13  3   12 15 40    83   295   -42  -21 35 46  -20 50 19  -22 39 48  -19 46  7
    128  0  0   -21 54 54   12 16 21    82   296   -43  -22 17 28  -21 32 20  -23 21  3  -20 28 35
    129  0  0   -22 35 45   12 17  1    81   297   -44  -22 58  9  -22 13 19  -24  1 17  -21 10  1

    130  0  0   -23 15 33   12 17 40    79   297   -45  -23 37 48  -22 53 18  -24 40 29  -21 50 26
    131  0  0   -23 54 21   12 18 19    78   297   -46  -24 16 27  -23 32 15  -25 18 41  -22 29 50
    132  0  0   -24 32  8   12 18 57    77   297   -47  -24 54  4  -24 10 11  -25 55 52  -23  8 13
    133  0  0   -25  8 53   12 19 34    76   297   -48  -25 30 40  -24 47  6  -26 32  2  -23 45 34
    134  0  0   -25 44 38   12 20 11    75   296   -48  -26  6 16  -25 23  0  -27  7 12  -24 21 54

    135  0  0   -26 19 23   12 20 47    73   296   -49  -26 40 52  -25 57 53  -27 41 22  -24 57 13
    136  0  0   -26 53  8   12 21 23    72   296   -50  -27 14 28  -26 31 47  -28 14 33  -25 31 32
    137  0  0   -27 25 53   12 21 58    71   295   -51  -27 47  4  -27  4 42  -28 46 46  -26  4 51
    138  0  0   -27 57 40   12 22 32    70   295   -52  -28 18 43  -27 36 37  -29 18  0  -26 37 11
    139  0  0   -28 28 29   12 23  6    69   294   -53  -28 49 24  -28  7 35  -29 48 17  -27  8 32

    140  0  0   -28 58 21   12 23 38    68   294   -53  -29 19  7  -28 37 35  -30 17 37  -27 38 56
    141  0  0   -29 27 16   12 24 11    67   294   -54  -29 47 54  -29  6 38  -30 46  2  -28  8 21
    142  0  0   -29 55 16   12 24 42    66   293   -55  -30 15 46  -29 34 45  -31 13 31  -28 36 51
    143  0  0   -30 22 20   12 25 13    64   293   -56  -30 42 42  -30  1 57  -31 40  6  -29  4 24
    144  0  0   -30 48 30   12 25 43    63   292   -56  -31  8 45  -30 28 14  -32  5 48  -29 31  3

    145  0  0   -31 13 46   12 26 13    62   292   -57  -31 33 54  -30 53 38  -32 30 37  -29 56 47
    146  0  0   -31 38 10   12 26 42    61   291   -58  -31 58 11  -31 18  9  -32 54 34  -30 21 38
    147  0  0   -32  1 42   12 27 11    60   291   -58  -32 21 36  -31 41 47  -33 17 40  -30 45 35
    148  0  0   -32 24 22   12 27 39    59   290   -59  -32 44 10  -32  4 34  -33 39 56  -31  8 41
    149  0  0   -32 46 13   12 28  6    58   289   -59  -33  5 54  -32 26 31  -34  1 22  -31 30 56

    150  0  0   -33  7 14   12 28 33    57   289   -60  -33 26 49  -32 47 38  -34 22  0  -31 52 21
    151  0  0   -33 27 26   12 28 59    56   288   -60  -33 46 55  -33  7 56  -34 41 49  -32 12 56
    152  0  0   -33 46 50   12 29 25    55   288   -61  -34  6 13  -33 27 26  -35  0 52  -32 32 42
    153  0  0   -34  5 27   12 29 50    54   287   -61  -34 24 45  -33 46  8  -35 19  8  -32 51 40
    154  0  0   -34 23 17   12 30 14    53   287   -62  -34 42 30  -34  4  4  -35 36 38  -33  9 50

    155  0  0   -34 40 22   12 30 38    52   286   -62  -34 59 29  -34 21 14  -35 53 24  -33 27 14
    156  0  0   -34 56 41   12 31  2    51   285   -62  -35 15 44  -34 37 38  -36  9 25  -33 43 52
    157  0  0   -35 12 16   12 31 25    51   285   -63  -35 31 14  -34 53 18  -36 24 42  -33 59 45
    158  0  0   -35 27  7   12 31 48    50   284   -63  -35 46  1  -35  8 13  -36 39 17  -34 14 53
    159  0  0   -35 41 16   12 32 10    49   284   -63  -36  0  5  -35 22 26  -36 53  9  -34 29 17

    160  0  0   -35 54 41   12 32 31    48   283   -64  -36 13 27  -35 35 55  -37  6 19  -34 42 58
    161  0  0   -36  7 25   12 32 52    47   282   -64  -36 26  6  -35 48 43  -37 18 49  -34 55 56
    162  0  0   -36 19 27   12 33 13    46   282   -64  -36 38  5  -36  0 48  -37 30 37  -35  8 12
    163  0  0   -36 30 48   12 33 33    45   281   -64  -36 49 23  -36 12 13  -37 41 46  -35 19 47
    164  0  0   -36 41 29   12 33 53    44   280   -64  -37  0  1  -36 22 57  -37 52 15  -35 30 40

    165  0  0   -36 51 31   12 34 13    43   280   -64  -37  9 59  -36 33  2  -38  2  5  -35 40 53
    166  0  0   -37  0 53   12 34 32    42   279   -65  -37 19 19  -36 42 26  -38 11 16  -35 50 25
    167  0  0   -37  9 36   12 34 50    42   278   -65  -37 27 59  -36 51 12  -38 19 50  -35 59 18
    168  0  0   -37 17 40   12 35  8    41   278   -65  -37 36  1  -36 59 19  -38 27 45  -36  7 32
    169  0  0   -37 25  7   12 35 26    40   277   -65  -37 43 26  -37  6 48  -38 35  3  -36 15  7

    170  0  0   -37 31 56   12 35 43    39   277   -65  -37 50 13  -37 13 39  -38 41 45  -36 22  4
    171  0  0   -37 38  7   12 36  0    38   276   -65  -37 56 22  -37 19 52  -38 47 50  -36 28 23
    172  0  0   -37 43 42   12 36 17    37   275   -64  -38  1 56  -37 25 29  -38 53 18  -36 34  4
    173  0  0   -37 48 40   12 36 33    36   275   -64  -38  6 52  -37 30 28  -38 58 11  -36 39  7
    174  0  0   -37 53  2   12 36 49    36   274   -64  -38 11 13  -37 34 51  -39  2 28  -36 43 34

    175  0  0   -37 56 48   12 37  4    35   273   -64  -38 14 58  -37 38 38  -39  6  9  -36 47 24
    176  0  0   -37 59 58   12 37 19    34   273   -64  -38 18  7  -37 41 49  -39  9 16  -36 50 38
    177  0  0   -38  2 33   12 37 34    33   272   -64  -38 20 40  -37 44 25  -39 11 48  -36 53 16
    178  0  0   -38  4 32   12 37 48    32   271   -63  -38 22 39  -37 46 25  -39 13 45  -36 55 17
    179  0  0   -38  5 56   12 38  2    31   271   -63  -38 24  3  -37 47 49  -39 15  7  -36 56 43

    180  0  0   -38  6 45   12 38 16    31   270   -63  -38 24 52  -37 48 39  -39 15 56  -36 57 33
   -179  0  0   -38  7  0   12 38 29    30   269   -63  -38 25  7  -37 48 53  -39 16 10  -36 57 48
   -178  0  0   -38  6 40   12 38 42    29   269   -62  -38 24 47  -37 48 33  -39 15 51  -36 57 28
   -177  0  0   -38  5 46   12 38 54    28   268   -62  -38 23 53  -37 47 39  -39 14 57  -36 56 33
   -176  0  0   -38  4 17   12 39  7    27   268   -62  -38 22 24  -37 46 10  -39 13 30  -36 55  3

   -175  0  0   -38  2 14   12 39 18    26   267   -61  -38 20 22  -37 44  6  -39 11 29  -36 52 58
   -174  0  0   -37 59 37   12 39 30    26   266   -61  -38 17 46  -37 41 28  -39  8 55  -36 50 18
   -173  0  0   -37 56 26   12 39 41    25   266   -60  -38 14 35  -37 38 16  -39  5 47  -36 47  3
   -172  0  0   -37 52 41   12 39 52    24   265   -60  -38 10 51  -37 34 30  -39  2  6  -36 43 14
   -171  0  0   -37 48 22   12 40  2    23   264   -60  -38  6 33  -37 30 10  -38 57 52  -36 38 51

Uncertainty in time = +/- 32 secs

Prediction of 2011 Jul 22.0
