ASTROMETRIC UPDATE:
OCCULTATION BY (8067) HELFENSTEIN - 2011 Feb 09

[Detailed Finder Charts]


Updated:   2010 OCT 19, 21:41 UT

Event Rank : 15

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

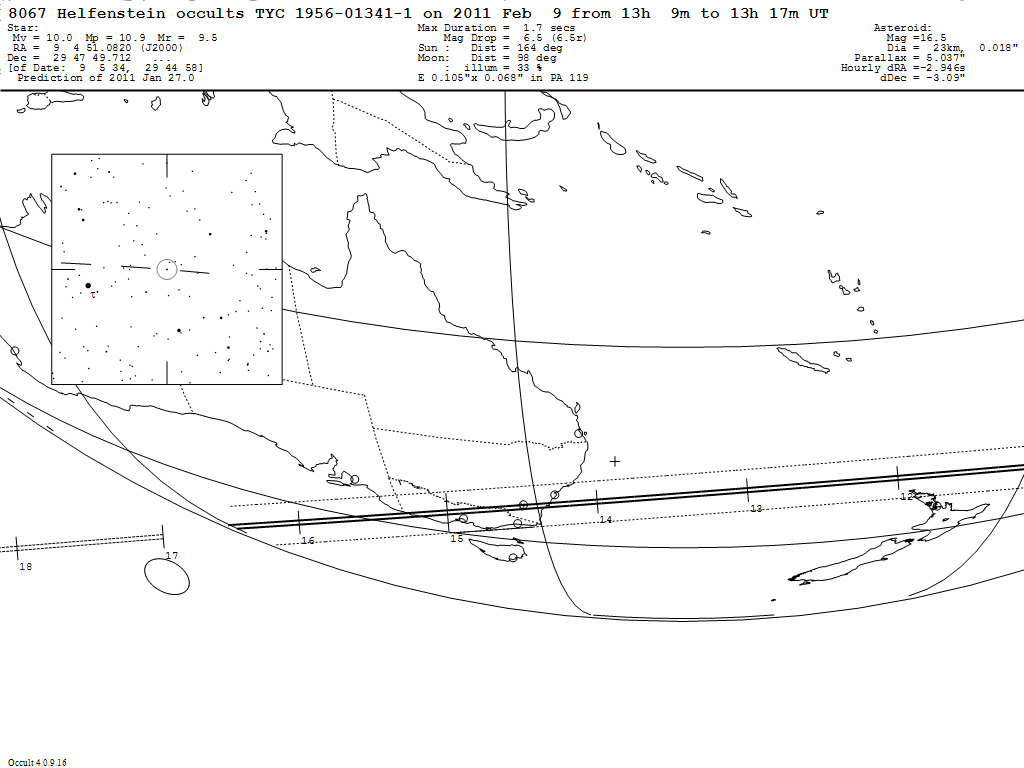

Helfenstein Update Map


On 2011 Feb 09 UT, the 23 km diameter asteroid (8067) Helfenstein will occult a 10.0 mag star in the constellation Cancer for observers along a narrow but widely uncertain path across south-east Australia centred from near Canberra to Portand in Victoria. The large 1-sigma uncertainty area includes Newcastle, Sydney and Melbourne.

In the case of an occultation, the combined light of the asteroid and the star will drop by 6.5 mag to 16.5 mag (the magnitude of the asteroid) for at most 1.7 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Alice Monet, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                   Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                        Longitude  Longitude  Longitude  Longitude
    124 36 54   -48  0  0   13 16 21     7    29   -18  124  9 15  125  4 48  ... .. ..  129 26 27
    125 59 38   -47  0  0   13 16 18     8    28   -19  125 31 46  126 27 46  ... .. ..  130 52 25
    127 25 51   -46  0  0   13 16 14     9    27   -21  126 57 40  127 54 19  ... .. ..  132 22 58
    128 55 55   -45  0  0   13 16 10    11    26   -22  128 27 19  129 24 49  124 23 25  133 58 41
    130 30 16   -44  0  0   13 16  5    12    24   -24  130  1  8  130 59 44  125 53 33  135 40 16

    132  9 28   -43  0  0   13 15 58    14    23   -25  131 39 40  132 39 38  127 27 21  137 28 40
    133 54 12   -42  0  0   13 15 51    15    22   -27  133 23 33  134 25 16  129  5 17  139 25  6
    135 45 21   -41  0  0   13 15 43    16    20   -28  135 13 38  136 17 33  130 47 54  141 31 20
    137 44  5   -40  0  0   13 15 34    18    19   -30  137 11  0  138 17 44  132 35 53  143 49 49
    139 51 59   -39  0  0   13 15 23    19    17   -32  139 17  8  140 27 31  134 30  6  146 24 26

                                                         Latitude   Latitude   Latitude   Latitude
    140  0  0   -38 56 24   13 15 22    19    17   -32  -38 40 39  -39 12 19  -36 26 24  -41 42 54
    141  0  0   -38 30  1   13 15 17    20    16   -32  -38 14 27  -38 45 45  -36  1 33  -41 14 25
    142  0  0   -38  4 40   13 15 11    21    15   -33  -37 49 15  -38 20 13  -35 37 39  -40 47  5
    143  0  0   -37 40 19   13 15  6    21    14   -34  -37 25  4  -37 55 43  -35 14 41  -40 20 53
    144  0  0   -37 16 59   13 15  0    22    13   -35  -37  1 53  -37 32 14  -34 52 39  -39 55 49

    145  0  0   -36 54 40   13 14 54    22    13   -35  -36 39 42  -37  9 46  -34 31 33  -39 31 52
    146  0  0   -36 33 19   13 14 48    23    12   -36  -36 18 29  -36 48 18  -34 11 22  -39  9  0
    147  0  0   -36 12 58   13 14 42    23    11   -37  -35 58 15  -36 27 49  -33 52  6  -38 47 13
    148  0  0   -35 53 36   13 14 36    24    10   -37  -35 39  0  -36  8 20  -33 33 45  -38 26 31
    149  0  0   -35 35 12   13 14 30    24     9   -38  -35 20 43  -35 49 49  -33 16 18  -38  6 52

    150  0  0   -35 17 46   13 14 24    25     8   -38  -35  3 23  -35 32 17  -32 59 46  -37 48 16
    151  0  0   -35  1 18   13 14 18    25     7   -39  -34 47  0  -35 15 43  -32 44  8  -37 30 43
    152  0  0   -34 45 47   13 14 11    25     6   -39  -34 31 35  -35  0  7  -32 29 25  -37 14 11
    153  0  0   -34 31 14   13 14  5    26     5   -40  -34 17  6  -34 45 29  -32 15 34  -36 58 42
    154  0  0   -34 17 37   13 13 58    26     4   -40  -34  3 34  -34 31 47  -32  2 38  -36 44 13

    155  0  0   -34  4 57   13 13 52    26     4   -40  -33 50 58  -34 19  3  -31 50 35  -36 30 45
    156  0  0   -33 53 13   13 13 45    26     3   -41  -33 39 18  -34  7 15  -31 39 25  -36 18 18
    157  0  0   -33 42 25   13 13 38    27     2   -41  -33 28 34  -33 56 24  -31 29  9  -36  6 50
    158  0  0   -33 32 34   13 13 32    27     1   -41  -33 18 45  -33 46 29  -31 19 46  -35 56 22
    159  0  0   -33 23 38   13 13 25    27   360   -42  -33  9 52  -33 37 30  -31 11 15  -35 46 54

    160  0  0   -33 15 38   13 13 18    27   359   -42  -33  1 54  -33 29 27  -31  3 37  -35 38 25
    161  0  0   -33  8 33   13 13 12    27   358   -42  -32 54 52  -33 22 20  -30 56 53  -35 30 55
    162  0  0   -33  2 23   13 13  5    27   357   -42  -32 48 44  -33 16  9  -30 51  0  -35 24 24
    163  0  0   -32 57  9   13 12 58    27   356   -42  -32 43 31  -33 10 53  -30 46  1  -35 18 51
    164  0  0   -32 52 50   13 12 51    27   355   -43  -32 39 14  -33  6 33  -30 41 53  -35 14 18

    165  0  0   -32 49 26   13 12 45    27   354   -43  -32 35 51  -33  3  8  -30 38 39  -35 10 42
    166  0  0   -32 46 57   13 12 38    27   353   -43  -32 33 23  -33  0 38  -30 36 16  -35  8  5
    167  0  0   -32 45 24   13 12 31    27   352   -43  -32 31 50  -32 59  4  -30 34 47  -35  6 26
    168  0  0   -32 44 45   13 12 25    27   351   -43  -32 31 11  -32 58 25  -30 34  9  -35  5 46
    169  0  0   -32 45  1   13 12 18    27   350   -43  -32 31 27  -32 58 42  -30 34 24  -35  6  4

    170  0  0   -32 46 13   13 12 11    27   349   -42  -32 32 38  -32 59 53  -30 35 32  -35  7 20
    171  0  0   -32 48 19   13 12  5    27   348   -42  -32 34 44  -33  2  1  -30 37 32  -35  9 34
    172  0  0   -32 51 21   13 11 58    26   348   -42  -32 37 44  -33  5  3  -30 40 24  -35 12 48
    173  0  0   -32 55 18   13 11 52    26   347   -42  -32 41 40  -33  9  2  -30 44 10  -35 16 59
    174  0  0   -33  0 10   13 11 45    26   346   -42  -32 46 31  -33 13 55  -30 48 48  -35 22 10

    175  0  0   -33  5 58   13 11 39    26   345   -42  -32 52 17  -33 19 45  -30 54 18  -35 28 19
    176  0  0   -33 12 41   13 11 33    25   344   -41  -32 58 58  -33 26 31  -31  0 42  -35 35 27
    177  0  0   -33 20 20   13 11 26    25   343   -41  -33  6 34  -33 34 12  -31  7 58  -35 43 35
    178  0  0   -33 28 55   13 11 20    24   342   -41  -33 15  6  -33 42 50  -31 16  8  -35 52 42
    179  0  0   -33 38 26   13 11 14    24   341   -40  -33 24 34  -33 52 25  -31 25 11  -36  2 49

Uncertainty in time = +/- 10 secs

Prediction of 2011 Jan 27.0
