OCCULTATION OF UCAC2 24230861 BY 76 Freia
2011 Novemeber 04


A 6.7 second occultation was recorded by Jonathan Bradshaw, using 16 frame integration Video + OSD technique.

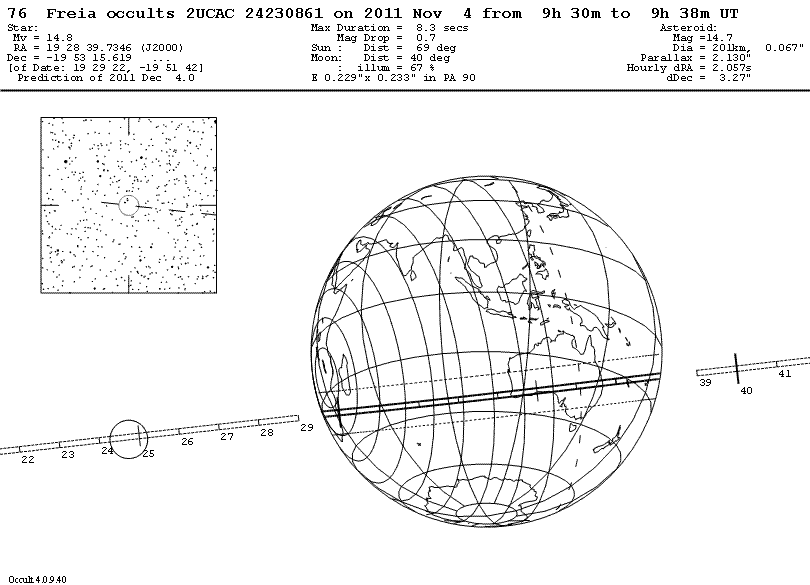

View the personal prediction.

Observers:
  1    J Bradshaw,Samford Valley, QLD,AU
  2(P) Prediction, Personal


Freia occultation - 2011 Novemeber 04

Discussion:

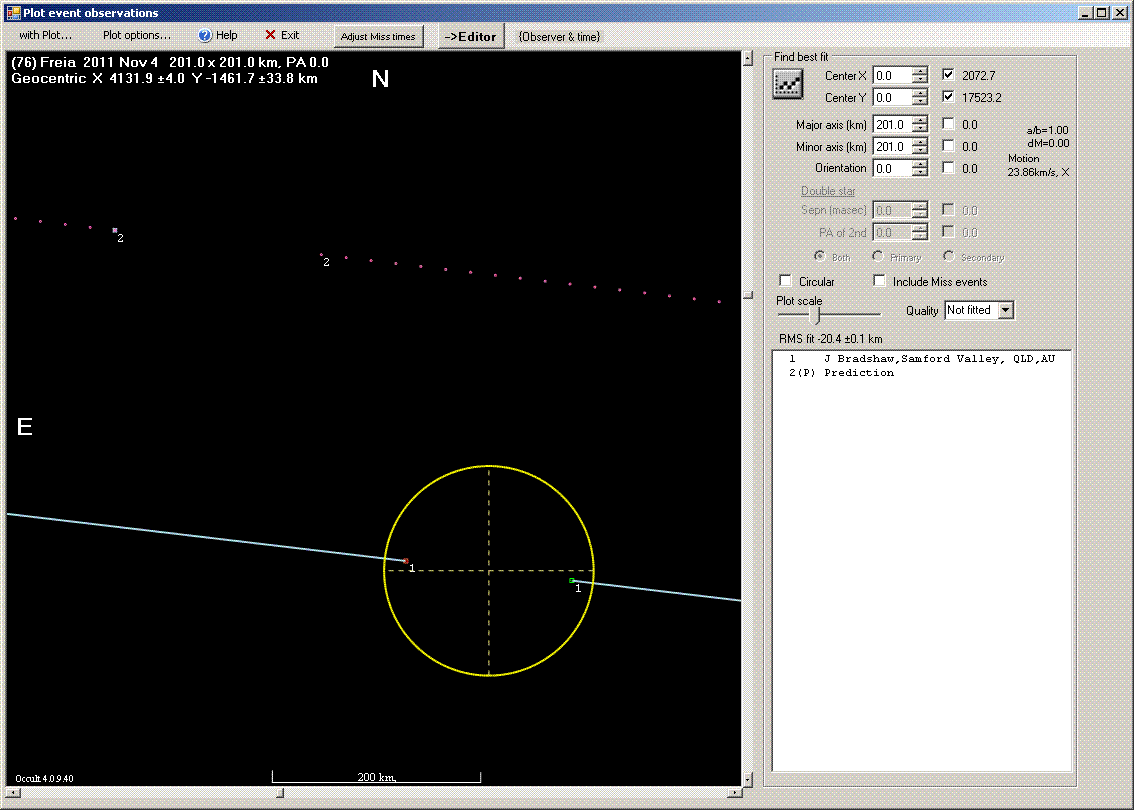

The circle above is plotted at the expected 201 km diameter of Freia. With only one chord it is not possible to determine whether Jonathan was north or south of the central line of the event.

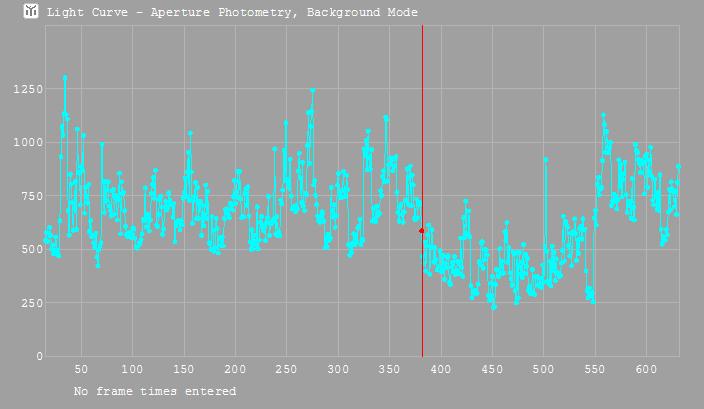

The figure below shows the Tangra light curve of the occultation.

Freia occultation - 2011 Novemeber 04

Observational Data:

Observation details for MP ( 76 ) Freia
By Star              UCAC2 24230861
On 2011-11-04  at 09:36:29.0

_______________________________

Observer   Jonathan Bradshaw
Location   Samford Valley, QLD,AU
Longitude  +152:50
Latitude   -27:22
Altitude   80 m
Datum      WGS84
Telescope Newtonian
Aperture   36 cm
Seeing     Steady Clear
Camera Type  G-Star         PAL/CCIR
Camera Delay 0.33
Timing     GPS - time inserted Video with frame analysis
Disappearance  09:36:45.11
Reappearance   09:36:51.78
Comments: Personal prediction involving a 14.8 mag star.
Used 16 frame integration to capture this event
Report prepopulated by IOTA Reporting Add-in for OW ver.1.6
