ASTROMETRIC UPDATE:
OCCULTATION BY (350) ORNAMENTA - 2010 APR 08

[Edwin Goffin's Prediction + Finder Charts]

[Detailed Finder Charts]


Updated:   2010 APR 04, 08:22 UT

Event Rank : 96

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

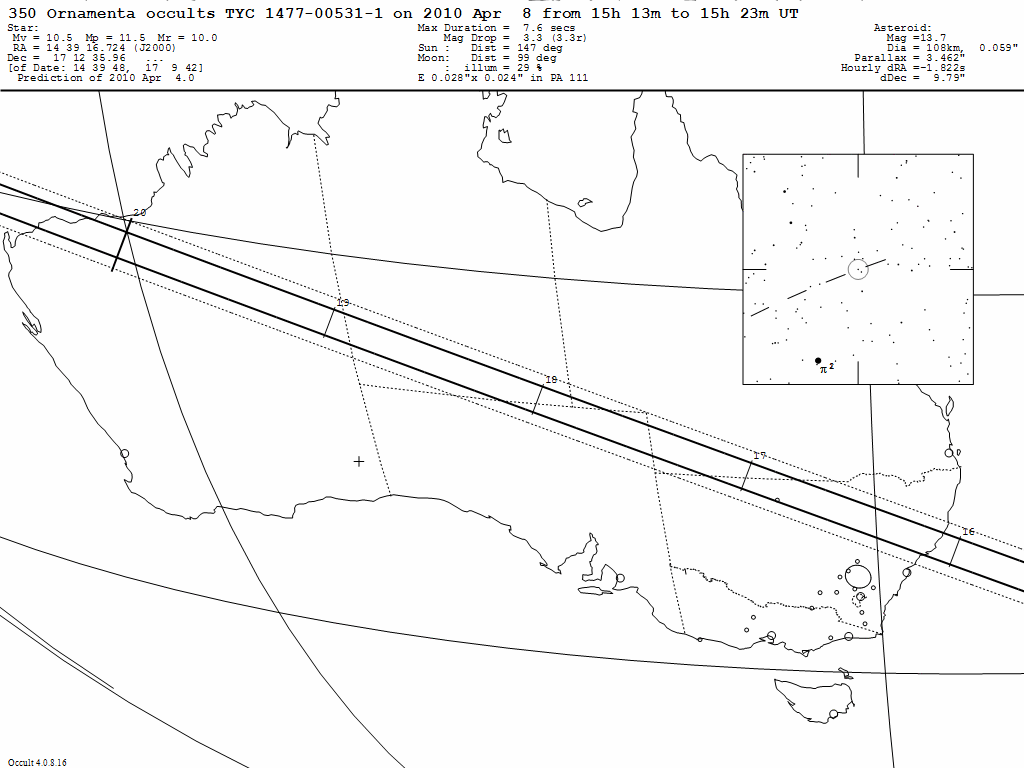

Ornamenta Update Map 1

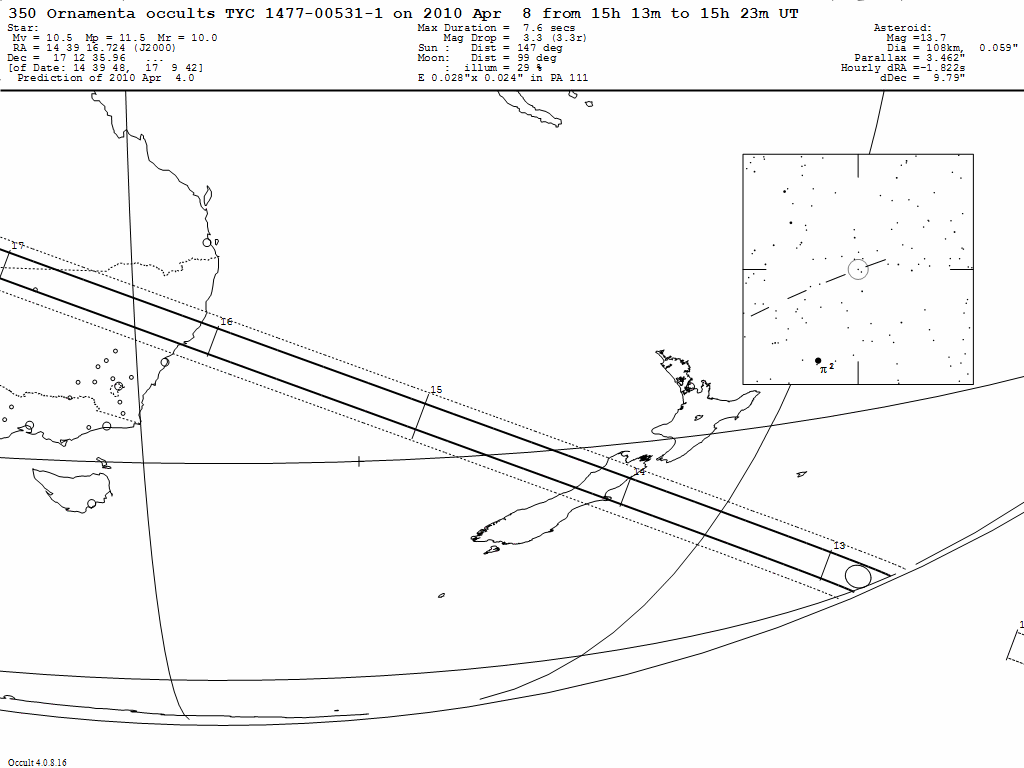

Ornamenta Update Map 2


On 2010 Apr 08 UT, the 108 km diameter asteroid (350) Ornamenta will occult a 10.5 mag star in the constellation Bootes for observers along a path across New Zealand, passing over Westport then across Australia, beginning at Forster, just north of Newcastle in New South Wales, across central Australia, passing over Tamworth, Coonabarrabran, Birdsville and Alice Springs, to Karratha in Western Australia.

In the case of an occultation, the combined light of the asteroid and the star will drop by 3.2 mag to 13.7 mag (the magnitude of the asteroid) for at most 7.6 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Alice Monet, TMO astrometry for the asteroid kindly provided by Bill Owen, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                  Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                         Latitude   Latitude   Latitude   Latitude
    112  0  0   -20  2 38   15 20 48    35    50   -68  -19 20 33  -20 45 16  -18 45 36  -21 21 31
    113  0  0   -20  9 42   15 20 42    36    49   -69  -19 27 34  -20 52 23  -18 52 34  -21 28 41
    114  0  0   -20 17 22   15 20 36    37    48   -70  -19 35 10  -21  0  7  -19  0  8  -21 36 27
    115  0  0   -20 25 38   15 20 30    37    48   -70  -19 43 22  -21  8 26  -19  8 17  -21 44 50
    116  0  0   -20 34 29   15 20 23    38    47   -71  -19 52 10  -21 17 22  -19 17  1  -21 53 49

    117  0  0   -20 43 56   15 20 17    38    46   -71  -20  1 33  -21 26 53  -19 26 20  -22  3 24
    118  0  0   -20 53 59   15 20 10    39    45   -72  -20 11 30  -21 37  0  -19 36 14  -22 13 36
    119  0  0   -21  4 37   15 20  4    39    44   -72  -20 22  3  -21 47 43  -19 46 44  -22 24 23
    120  0  0   -21 15 50   15 19 57    40    43   -73  -20 33 11  -21 59  2  -19 57 47  -22 35 46
    121  0  0   -21 27 38   15 19 51    40    42   -73  -20 44 54  -22 10 56  -20  9 26  -22 47 45

    122  0  0   -21 40  1   15 19 44    41    41   -73  -20 57 12  -22 23 25  -20 21 39  -23  0 20
    123  0  0   -21 52 59   15 19 37    41    40   -74  -21 10  4  -22 36 29  -20 34 26  -23 13 30
    124  0  0   -22  6 32   15 19 30    41    39   -74  -21 23 30  -22 50  9  -20 47 47  -23 27 15
    125  0  0   -22 20 39   15 19 23    42    37   -74  -21 37 31  -23  4 23  -21  1 42  -23 41 35
    126  0  0   -22 35 21   15 19 16    42    36   -74  -21 52  6  -23 19 12  -21 16 11  -23 56 30

    127  0  0   -22 50 37   15 19  9    42    35   -74  -22  7 14  -23 34 35  -21 31 14  -24 12  0
    128  0  0   -23  6 27   15 19  2    43    34   -74  -22 22 57  -23 50 32  -21 46 50  -24 28  4
    129  0  0   -23 22 50   15 18 55    43    33   -74  -22 39 12  -24  7  4  -22  3  0  -24 44 43
    130  0  0   -23 39 47   15 18 48    43    32   -74  -22 56  1  -24 24 10  -22 19 43  -25  1 56
    131  0  0   -23 57 18   15 18 41    43    30   -73  -23 13 23  -24 41 49  -22 36 58  -25 19 42

    132  0  0   -24 15 21   15 18 34    44    29   -73  -23 31 18  -25  0  1  -22 54 46  -25 38  3
    133  0  0   -24 33 57   15 18 26    44    28   -73  -23 49 46  -25 18 47  -23 13  6  -25 56 56
    134  0  0   -24 53  6   15 18 19    44    26   -72  -24  8 46  -25 38  5  -23 31 59  -26 16 23
    135  0  0   -25 12 48   15 18 12    44    25   -72  -24 28 17  -25 57 56  -23 51 23  -26 36 23
    136  0  0   -25 33  1   15 18  4    44    24   -71  -24 48 21  -26 18 19  -24 11 18  -26 56 55

    137  0  0   -25 53 45   15 17 57    44    22   -71  -25  8 56  -26 39 15  -24 31 45  -27 17 59
    138  0  0   -26 15  2   15 17 50    44    21   -70  -25 30  2  -27  0 41  -24 52 43  -27 39 35
    139  0  0   -26 36 49   15 17 42    44    20   -69  -25 51 38  -27 22 39  -25 14 11  -28  1 43
    140  0  0   -26 59  6   15 17 35    44    18   -69  -26 13 45  -27 45  8  -25 36 10  -28 24 21
    141  0  0   -27 21 54   15 17 28    44    17   -68  -26 36 22  -28  8  8  -25 58 38  -28 47 31

    142  0  0   -27 45 12   15 17 20    44    16   -67  -26 59 29  -28 31 37  -26 21 36  -29 11 10
    143  0  0   -28  8 59   15 17 13    44    14   -66  -27 23  5  -28 55 36  -26 45  2  -29 35 20
    144  0  0   -28 33 15   15 17  6    43    13   -66  -27 47  9  -29 20  4  -27  8 57  -29 59 59
    145  0  0   -28 57 59   15 16 59    43    12   -65  -28 11 42  -29 45  1  -27 33 20  -30 25  6
    146  0  0   -29 23 12   15 16 51    43    10   -64  -28 36 42  -30 10 26  -27 58 11  -30 50 42

    147  0  0   -29 48 52   15 16 44    43     9   -63  -29  2 10  -30 36 18  -28 23 29  -31 16 46
    148  0  0   -30 14 58   15 16 37    42     8   -62  -29 28  4  -31  2 38  -28 49 13  -31 43 17
    149  0  0   -30 41 31   15 16 30    42     7   -61  -29 54 24  -31 29 24  -29 15 23  -32 10 15
    150  0  0   -31  8 30   15 16 23    42     5   -61  -30 21 10  -31 56 36  -29 41 59  -32 37 39
    151  0  0   -31 35 53   15 16 16    41     4   -60  -30 48 20  -32 24 13  -30  8 59  -33  5 28

    152  0  0   -32  3 41   15 16  9    41     3   -59  -31 15 55  -32 52 15  -30 36 23  -33 33 42
    153  0  0   -32 31 53   15 16  2    40     1   -58  -31 43 54  -33 20 40  -31  4 11  -34  2 19
    154  0  0   -33  0 27   15 15 55    40     0   -57  -32 12 15  -33 49 29  -31 32 22  -34 31 20
    155  0  0   -33 29 24   15 15 48    39   359   -56  -32 40 59  -34 18 40  -32  0 54  -35  0 44
    156  0  0   -33 58 42   15 15 42    39   358   -55  -33 10  3  -34 48 12  -32 29 48  -35 30 29

    157  0  0   -34 28 21   15 15 35    38   357   -54  -33 39 29  -35 18  5  -32 59  3  -36  0 35
    158  0  0   -34 58 20   15 15 28    38   356   -53  -34  9 14  -35 48 19  -33 28 37  -36 31  0
    159  0  0   -35 28 38   15 15 22    37   354   -52  -34 39 18  -36 18 51  -33 58 30  -37  1 45
    160  0  0   -35 59 13   15 15 16    37   353   -51  -35  9 40  -36 49 41  -34 28 41  -37 32 48
    161  0  0   -36 30  6   15 15  9    36   352   -50  -35 40 19  -37 20 48  -34 59  9  -38  4  8

    162  0  0   -37  1 15   15 15  3    35   351   -50  -36 11 14  -37 52 12  -35 29 54  -38 35 44
    163  0  0   -37 32 40   15 14 57    35   350   -49  -36 42 25  -38 23 50  -36  0 54  -39  7 36
    164  0  0   -38  4 18   15 14 51    34   349   -48  -37 13 50  -38 55 43  -36 32  8  -39 39 41
    165  0  0   -38 36 10   15 14 45    34   348   -47  -37 45 28  -39 27 49  -37  3 35  -40 12  0
    166  0  0   -39  8 13   15 14 40    33   347   -46  -38 17 18  -40  0  7  -37 35 15  -40 44 30

    167  0  0   -39 40 28   15 14 34    32   346   -45  -38 49 20  -40 32 35  -38  7  6  -41 17 11
    168  0  0   -40 12 53   15 14 29    31   345   -44  -39 21 31  -41  5 14  -38 39  7  -41 50  2
    169  0  0   -40 45 26   15 14 23    31   344   -43  -39 53 52  -41 38  1  -39 11 17  -42 23  1
    170  0  0   -41 18  7   15 14 18    30   343   -42  -40 26 20  -42 10 55  -39 43 35  -42 56  7
    171  0  0   -41 50 54   15 14 13    29   342   -41  -40 58 55  -42 43 56  -40 16  0  -43 29 20

    172  0  0   -42 23 47   15 14  8    28   341   -40  -41 31 35  -43 17  1  -40 48 30  -44  2 37
    173  0  0   -42 56 43   15 14  3    28   340   -39  -42  4 20  -43 50 10  -41 21  6  -44 35 57
    174  0  0   -43 29 42   15 13 59    27   339   -39  -42 37  8  -44 23 22  -41 53 44  -45  9 19
    175  0  0   -44  2 43   15 13 54    26   338   -38  -43  9 57  -44 56 34  -42 26 25  -45 42 43
    176  0  0   -44 35 44   15 13 50    25   337   -37  -43 42 48  -45 29 47  -42 59  7  -46 16  6

Uncertainty in time = +/- 4 secs

Prediction of 2010 Apr  4.0
