ASTROMETRIC UPDATE:
OCCULTATION BY (2806) GRAZ - 2009 May 25

[Detailed Finder Charts]


Updated:   2009 APR 17, 00:50 UT

Event Rank : 21

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

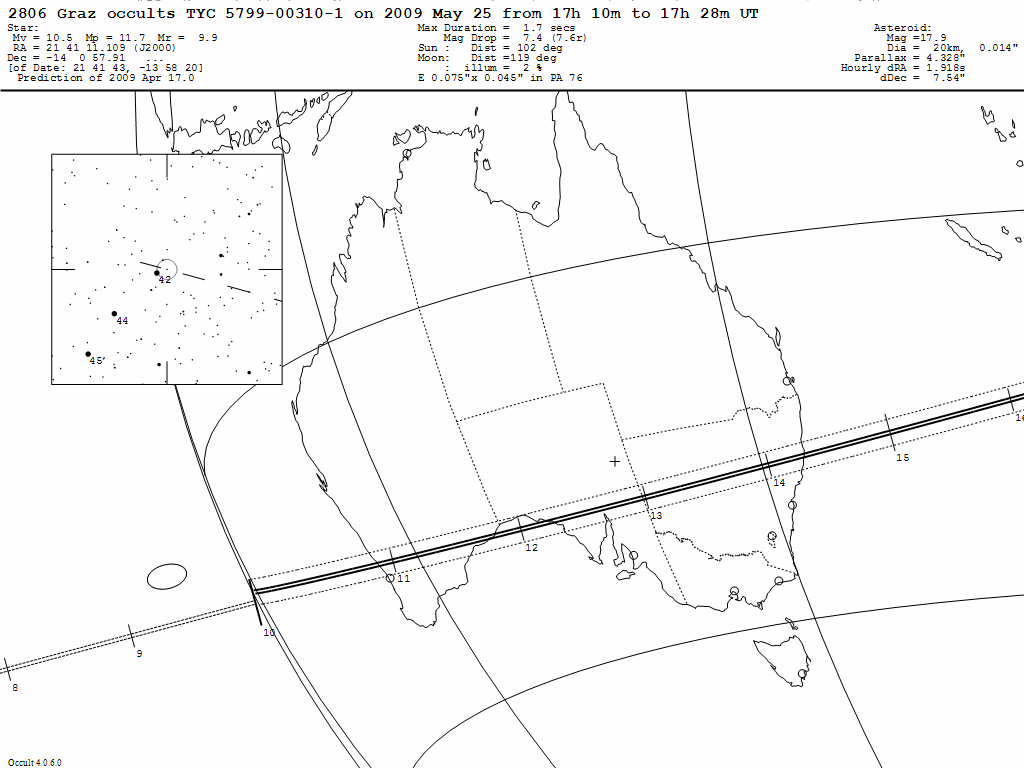

Graz Update Map


On 2009 May 25 UT, the 20 km diameter asteroid (2806) Graz will occult a 10.5 mag star in the constellation Capricornus for observers along a path beginning just north of Perth in Western Australia, with northern parts of Perth just inside the uncertainty area. The path tracks east into South Australia passing near Port Augusta. Then into New South Wales past Broken Hill, Dubbo, Tamworth and Port Macquarie.

In the case of an occultation, the combined light of the asteroid and the star will drop by 7.4 mag to 17.9 mag (the magnitude of the asteroid) for at most 1.7 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Alice Monet, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                   Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                         Latitude   Latitude   Latitude   Latitude
    108  0  0   -30  6 17   17 10 30    19    96   -79  -30 11 54  -30  0 40  -30 48  0  -29 24 39
    109  0  0   -30 15  9   17 10 33    19    95   -79  -30 20 45  -30  9 32  -30 56 50  -29 33 34
    110  0  0   -30 23 42   17 10 36    20    95   -78  -30 29 18  -30 18  6  -31  5 20  -29 42 10
    111  0  0   -30 31 56   17 10 39    21    94   -77  -30 37 32  -30 26 20  -31 13 32  -29 50 26
    112  0  0   -30 39 51   17 10 42    22    94   -76  -30 45 27  -30 34 15  -31 21 24  -29 58 23

    113  0  0   -30 47 27   17 10 45    23    93   -76  -30 53  2  -30 41 51  -31 28 58  -30  6  1
    114  0  0   -30 54 43   17 10 49    24    93   -75  -31  0 18  -30 49  8  -31 36 12  -30 13 20
    115  0  0   -31  1 40   17 10 52    25    92   -74  -31  7 15  -30 56  6  -31 43  7  -30 20 19
    116  0  0   -31  8 18   17 10 56    26    91   -73  -31 13 53  -31  2 44  -31 49 43  -30 26 59
    117  0  0   -31 14 37   17 10 59    26    91   -73  -31 20 11  -31  9  2  -31 55 59  -30 33 20

    118  0  0   -31 20 36   17 11  3    27    90   -72  -31 26 10  -31 15  2  -32  1 57  -30 39 21
    119  0  0   -31 26 15   17 11  7    28    90   -71  -31 31 49  -31 20 42  -32  7 34  -30 45  2
    120  0  0   -31 31 35   17 11 11    29    89   -70  -31 37  9  -31 26  2  -32 12 53  -30 50 24
    121  0  0   -31 36 36   17 11 15    30    89   -70  -31 42  9  -31 31  3  -32 17 51  -30 55 26
    122  0  0   -31 41 17   17 11 19    31    88   -69  -31 46 50  -31 35 44  -32 22 31  -31  0  8

    123  0  0   -31 45 38   17 11 24    32    87   -68  -31 51 11  -31 40  5  -32 26 51  -31  4 31
    124  0  0   -31 49 40   17 11 28    33    87   -67  -31 55 12  -31 44  7  -32 30 51  -31  8 34
    125  0  0   -31 53 21   17 11 33    33    86   -66  -31 58 54  -31 47 49  -32 34 32  -31 12 17
    126  0  0   -31 56 44   17 11 37    34    86   -65  -32  2 16  -31 51 11  -32 37 53  -31 15 41
    127  0  0   -31 59 46   17 11 42    35    85   -65  -32  5 18  -31 54 14  -32 40 54  -31 18 44

    128  0  0   -32  2 29   17 11 47    36    84   -64  -32  8  1  -31 56 57  -32 43 36  -31 21 28
    129  0  0   -32  4 52   17 11 52    37    84   -63  -32 10 24  -31 59 20  -32 45 58  -31 23 51
    130  0  0   -32  6 55   17 11 57    38    83   -62  -32 12 27  -32  1 23  -32 48  0  -31 25 55
    131  0  0   -32  8 38   17 12  2    39    82   -61  -32 14 10  -32  3  6  -32 49 43  -31 27 39
    132  0  0   -32 10  1   17 12  7    39    82   -60  -32 15 33  -32  4 30  -32 51  5  -31 29  3

    133  0  0   -32 11  5   17 12 13    40    81   -60  -32 16 36  -32  5 33  -32 52  8  -31 30  7
    134  0  0   -32 11 48   17 12 18    41    80   -59  -32 17 20  -32  6 17  -32 52 52  -31 30 50
    135  0  0   -32 12 12   17 12 23    42    80   -58  -32 17 43  -32  6 40  -32 53 15  -31 31 14
    136  0  0   -32 12 15   17 12 29    43    79   -57  -32 17 47  -32  6 44  -32 53 18  -31 31 18
    137  0  0   -32 11 59   17 12 35    44    78   -56  -32 17 30  -32  6 27  -32 53  2  -31 31  1

    138  0  0   -32 11 22   17 12 41    44    78   -55  -32 16 54  -32  5 51  -32 52 25  -31 30 25
    139  0  0   -32 10 26   17 12 46    45    77   -54  -32 15 57  -32  4 54  -32 51 29  -31 29 28
    140  0  0   -32  9  9   17 12 52    46    76   -54  -32 14 41  -32  3 37  -32 50 13  -31 28 11
    141  0  0   -32  7 32   17 12 58    47    75   -53  -32 13  4  -32  2  1  -32 48 37  -31 26 34
    142  0  0   -32  5 36   17 13  5    48    75   -52  -32 11  7  -32  0  4  -32 46 40  -31 24 36

    143  0  0   -32  3 19   17 13 11    49    74   -51  -32  8 51  -31 57 47  -32 44 24  -31 22 19
    144  0  0   -32  0 42   17 13 17    50    73   -50  -32  6 14  -31 55 10  -32 41 48  -31 19 41
    145  0  0   -31 57 44   17 13 24    50    72   -49  -32  3 16  -31 52 12  -32 38 52  -31 16 43
    146  0  0   -31 54 27   17 13 30    51    71   -48  -31 59 59  -31 48 55  -32 35 35  -31 13 24
    147  0  0   -31 50 49   17 13 37    52    71   -48  -31 56 22  -31 45 17  -32 31 59  -31  9 46

    148  0  0   -31 46 51   17 13 43    53    70   -47  -31 52 24  -31 41 19  -32 28  2  -31  5 47
    149  0  0   -31 42 33   17 13 50    54    69   -46  -31 48  6  -31 37  1  -32 23 45  -31  1 27
    150  0  0   -31 37 55   17 13 57    55    68   -45  -31 43 28  -31 32 22  -32 19  8  -30 56 48
    151  0  0   -31 32 56   17 14  4    55    67   -44  -31 38 30  -31 27 23  -32 14 11  -30 51 47
    152  0  0   -31 27 38   17 14 11    56    66   -43  -31 33 11  -31 22  4  -32  8 54  -30 46 27

    153  0  0   -31 21 58   17 14 18    57    65   -42  -31 27 32  -31 16 25  -32  3 17  -30 40 46
    154  0  0   -31 15 59   17 14 25    58    64   -41  -31 21 33  -31 10 25  -31 57 19  -30 34 45
    155  0  0   -31  9 39   17 14 33    59    63   -41  -31 15 13  -31  4  5  -31 51  1  -30 28 23
    156  0  0   -31  2 59   17 14 40    60    62   -40  -31  8 34  -30 57 25  -31 44 23  -30 21 41
    157  0  0   -30 55 59   17 14 47    60    61   -39  -31  1 34  -30 50 24  -31 37 25  -30 14 39

    158  0  0   -30 48 39   17 14 55    61    60   -38  -30 54 14  -30 43  4  -31 30  7  -30  7 16
    159  0  0   -30 40 58   17 15  2    62    59   -37  -30 46 33  -30 35 22  -31 22 28  -29 59 33
    160  0  0   -30 32 57   17 15 10    63    58   -36  -30 38 32  -30 27 21  -31 14 30  -29 51 29
    161  0  0   -30 24 35   17 15 18    64    56   -35  -30 30 11  -30 18 59  -31  6 11  -29 43  5
    162  0  0   -30 15 53   17 15 26    65    55   -34  -30 21 30  -30 10 17  -30 57 32  -29 34 21


Uncertainty in time = +/- 9 secs

Prediction of 2009 Apr 17.0
