ASTROMETRIC UPDATE:
OCCULTATION BY (5814) 1988 XW1 - 2008 OCT 12

[Detailed Finder Charts]


Updated:   2008 SEP 11, 16:33 UT

Event Rank : 8

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

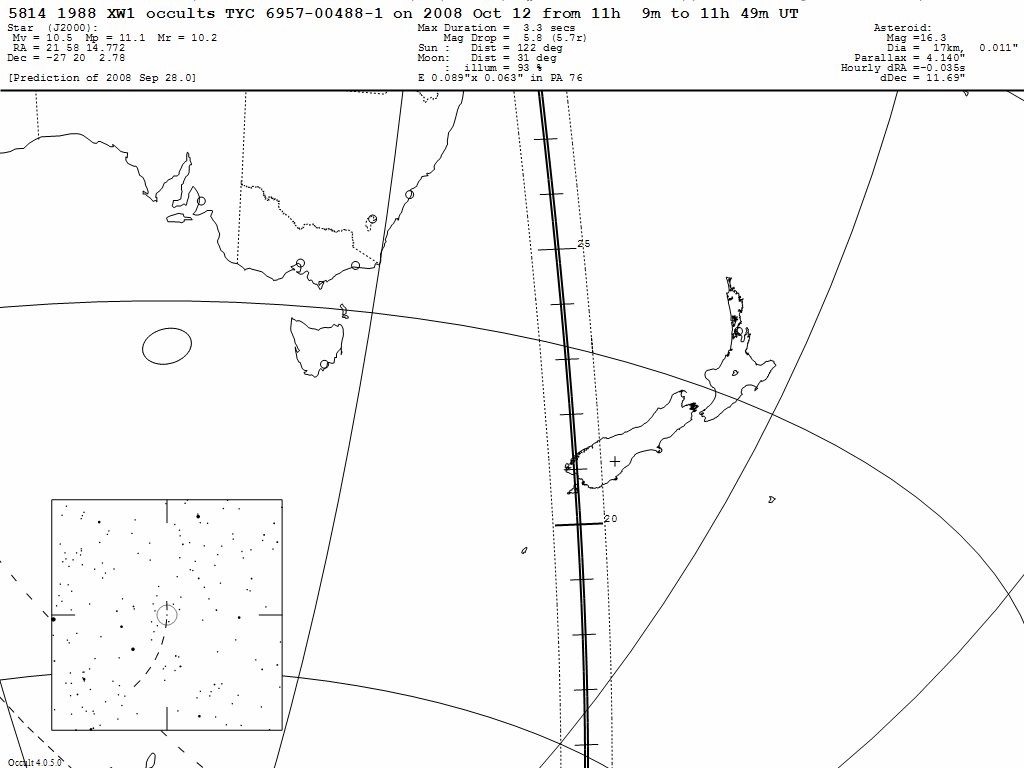

1988 XW1 Update Map


On 2008 Oct 12 UT, the 17 km diameter asteroid (5814) 1988 XW1 will occult a 10.5 mag star in the constellation Piscis Austrinus for observers along a narrow, large uncertainty path across southern New Zealand, centred over Waihoaka.

In the case of an occultation, the combined light of the asteroid and the star will drop by 5.8 mag to 16.3 mag (the magnitude of the asteroid) for at most 3.3 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Alice Monet, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                  Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                        Longitude  Longitude  Longitude  Longitude
    155  2 43   -18  0  0   11 31 31    70   239   -52  155  7 59  154 57 28  156 33  7  153 33 17
    155 18 14   -19  0  0   11 31  9    70   242   -51  155 23 31  155 12 56  156 49 15  153 48 10
    155 34 16   -20  0  0   11 30 47    70   244   -51  155 39 36  155 28 56  157  5 58  154  3 34
    155 50 52   -21  0  0   11 30 24    70   247   -50  155 56 15  155 45 30  157 23 17  154 19 28
    156  8  2   -22  0  0   11 30  2    71   250   -50  156 13 27  156  2 37  157 41 13  154 35 54

    156 25 48   -23  0  0   11 29 40    71   252   -49  156 31 16  156 20 20  157 59 47  154 52 53
    156 44 10   -24  0  0   11 29 17    71   255   -49  156 49 41  156 38 39  158 19  1  155 10 25
    157  3 11   -25  0  0   11 28 54    71   258   -48  157  8 45  156 57 37  158 38 56  155 28 33
    157 22 51   -26  0  0   11 28 32    71   261   -47  157 28 28  157 17 14  158 59 34  155 47 18
    157 43 12   -27  0  0   11 28  9    71   264   -47  157 48 53  157 37 31  159 20 56  156  6 40

    158  4 16   -28  0  0   11 27 47    71   267   -46  158 10  1  157 58 32  159 43  5  156 26 42
    158 26  5   -29  0  0   11 27 24    70   269   -46  158 31 54  158 20 17  160  6  3  156 47 25
    158 48 41   -30  0  0   11 27  1    70   272   -45  158 54 34  158 42 49  160 29 51  157  8 51
    159 12  6   -31  0  0   11 26 38    70   274   -44  159 18  3  159  6  9  160 54 33  157 31  2
    159 36 23   -32  0  0   11 26 16    69   277   -44  159 42 25  159 30 21  161 20 11  157 54  0

    160  1 33   -33  0  0   11 25 53    69   279   -43  160  7 40  159 55 27  161 46 48  158 17 48
    160 27 41   -34  0  0   11 25 30    69   282   -42  160 33 53  160 21 29  162 14 27  158 42 29
    160 54 49   -35  0  0   11 25  7    68   284   -42  161  1  6  160 48 32  162 43 11  159  8  4
    161 23  0   -36  0  0   11 24 45    68   286   -41  161 29 23  161 16 37  163 13  5  159 34 37
    161 52 18   -37  0  0   11 24 22    67   287   -40  161 58 48  161 45 49  163 44 12  160  2 12

    162 22 48   -38  0  0   11 23 59    66   289   -40  162 29 24  162 16 12  164 16 37  160 30 52
    163  0  0   -39 10  2   11 23 33    66   291   -39  -38 57 38  -39 22 24  -35 34  2  -42 38  9
    164  0  0   -40 56 15   11 22 53    64   293   -38  -40 44 22  -41  8  7  -37 29 33  -44 16  7
    165  0  0   -42 34 54   11 22 16    63   295   -36  -42 23 29  -42 46 18  -39 16 32  -45 47 14
    166  0  0   -44  6 42   11 21 41    62   297   -35  -43 55 42  -44 17 41  -40 55 54  -47 12 10

    167  0  0   -45 32 20   11 21  9    61   298   -34  -45 21 43  -45 42 56  -42 28 25  -48 31 28
    168  0  0   -46 52 20   11 20 40    59   299   -33  -46 42  4  -47  2 34  -43 54 44  -49 45 37
    169  0  0   -48  7 12   11 20 12    58   300   -32  -47 57 16  -48 17  7  -45 15 26  -50 55  5
    170  0  0   -49 17 23   11 19 46    57   300   -31  -49  7 45  -49 27  0  -46 30 59  -52  0 14
Uncertainty in time = +/- 27 secs

[Prediction of 2008 Sep 11.0]
