ASTROMETRIC UPDATE:
OCCULTATION BY (526) JENA - 2005 SEP 30

[Edwin Goffin's Prediction + Finder Charts]

[Detailed Finder Charts]


Updated:   2005 AUG 20, 22:35 UT

Event Rank : 33

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

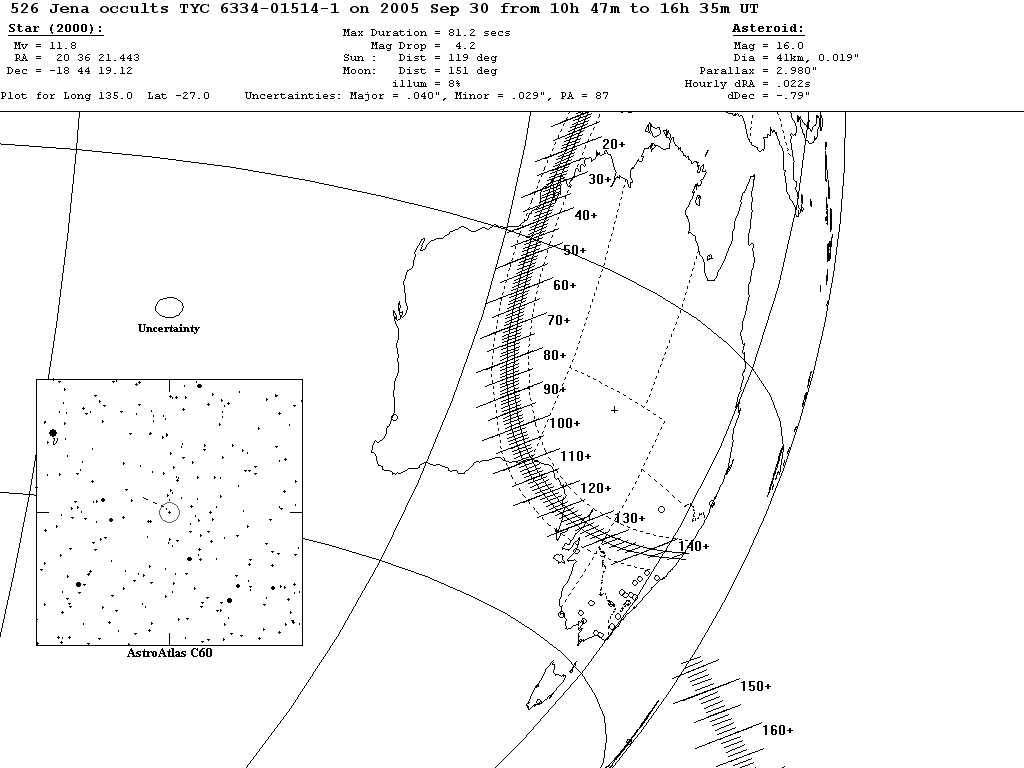

Jena Update Map


On 2005 Sep 30 UT, the 41 km diameter asteroid (526) Jena will occult a 11.8 mag star in the constellation Capricornus for observers along a path across central Western Australia, South Australia and New South Wales.

In the case of an occultation, the combined light of the asteroid and the star will drop by 4.3 mag to 16.0 mag (the magnitude of the asteroid) for at most 81.2 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Ron Stone, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                  Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                        Longitude  Longitude  Longitude  Longitude
    125 12 23   -10  0  0   14  0 24    55   252   -64  124 58 36  125 26 11  124  2 50  126 22 25
    124 48  1   -11  0  0   14  4 44    54   253   -64  124 34  9  125  1 55  123 37 59  125 58 33
    124 25  1   -12  0  0   14  9  6    54   255   -65  124 11  2  124 39  2  123 14 28  125 36  8
    124  3 31   -13  0  0   14 13 30    53   256   -65  123 49 24  124 17 39  122 52 21  125 15 17
    123 43 36   -14  0  0   14 17 57    53   257   -64  123 29 21  123 57 53  122 31 46  124 56  7

    123 25 27   -15  0  0   14 22 26    52   259   -64  123 11  3  123 39 53  122 12 50  124 38 49
    123  9 13   -16  0  0   14 26 58    52   260   -64  122 54 37  123 23 50  121 55 43  124 23 33
    122 55  3   -17  0  0   14 31 32    51   261   -64  122 40 16  123  9 53  121 40 34  124 10 29
    122 43 11   -18  0  0   14 36  9    50   262   -64  122 28  9  122 58 15  121 27 34  123 59 53
    122 33 50   -19  0  0   14 40 49    49   263   -64  122 18 32  122 49 10  121 16 55  123 51 59

    122 27 15   -20  0  0   14 45 32    48   264   -63  122 11 39  122 42 55  121  8 50  123 47  7
    122 23 46   -21  0  0   14 50 19    47   265   -63  122  7 48  122 39 48  121  3 37  123 45 37
    122 23 44   -22  0  0   14 55 10    46   265   -63  122  7 21  122 40 12  121  1 34  123 47 55
    122 27 36   -23  0  0   15  0  5    45   266   -62  122 10 43  122 44 35  121  3  4  123 54 35
    122 35 55   -24  0  0   15  5  5    44   267   -62  122 18 26  122 53 31  121  8 32  124  6 16

    122 49 20   -25  0  0   15 10 10    43   267   -61  122 31  8  123  7 41  121 18 32  124 23 50
    123  8 44   -26  0  0   15 15 23    41   267   -61  122 49 38  123 28  1  121 33 45  124 48 26
    123 35 15   -27  0  0   15 20 44    40   267   -60  123 15  1  123 55 44  121 55  3  125 21 41
    124 10 30   -28  0  0   15 26 15    38   267   -59  123 48 47  124 32 32  122 23 35  126  5 54


                                                         Latitude   Latitude   Latitude   Latitude
    125  0  0   -29  3 39   15 32 21    36   267   -58  -29 29 55  -28 36  2  -31  6 11  -26 22 54

    126  0  0   -30  1 58   15 38 14    34   267   -57  -30 24 31  -29 38 36  -31 49 36  -27 52 54
    127  0  0   -30 47 13   15 43  6    32   266   -56  -31  7 24  -30 26 30  -32 24 51  -28 55 40
    128  0  0   -31 23 24   15 47 16    30   265   -55  -31 41 55  -31  4 31  -32 53 48  -29 43 12
    129  0  0   -31 52 47   15 50 53    29   265   -54  -32 10  4  -31 35 14  -33 17 44  -30 20 34
    130  0  0   -32 16 47   15 54  6    27   264   -53  -32 33  7  -32  0 14  -33 37 28  -30 50 30

    131  0  0   -32 36 22   15 56 59    26   263   -52  -32 51 57  -32 20 36  -33 53 39  -31 14 38
    132  0  0   -32 52 12   15 59 35    25   263   -52  -33  7 11  -32 37  4  -34  6 44  -31 34  4
    133  0  0   -33  4 48   16  1 57    23   262   -51  -33 19 18  -32 50 12  -34 17  5  -31 49 34
    134  0  0   -33 14 35   16  4  6    22   261   -50  -33 28 40  -33  0 23  -34 25  0  -32  1 42
    135  0  0   -33 21 49   16  6  4    21   261   -49  -33 35 34  -33  7 58  -34 30 41  -32 10 52

    136  0  0   -33 26 46   16  7 53    20   260   -49  -33 40 15  -33 13 13  -34 34 20  -32 17 26
    137  0  0   -33 29 38   16  9 32    18   259   -48  -33 42 53  -33 16 19  -34 36  6  -32 21 38
    138  0  0   -33 30 35   16 11  3    17   259   -47  -33 43 38  -33 17 28  -34 36  9  -32 23 41
    139  0  0   -33 29 44   16 12 27    16   258   -47  -33 42 38  -33 16 48  -34 34 33  -32 23 46
    140  0  0   -33 27 15   16 13 44    15   257   -46  -33 40  0  -33 14 27  -34 31 25  -32 22  3

    141  0  0   -33 23 11   16 14 54    14   257   -45  -33 35 49  -33 10 30  -34 26 49  -32 18 37
    142  0  0   -33 17 38   16 15 58    13   256   -45  -33 30 12  -33  5  3  -34 20 51  -32 13 36
    143  0  0   -33 10 42   16 16 57    12   255   -44  -33 23 11  -32 58 12  -34 13 34  -32  7  6
    144  0  0   -33  2 26   16 17 50    11   255   -44  -33 14 51  -32 49 59  -34  5  2  -31 59 10
    145  0  0   -32 52 53   16 18 37    10   254   -43  -33  5 16  -32 40 29  -33 55 16  -31 49 53

    146  0  0   -32 42  7   16 19 20     9   253   -42  -32 54 28  -32 29 45  -33 44 21  -31 39 20
    147  0  0   -32 30 11   16 19 58     8   253   -42  -32 42 30  -32 17 51  -33 32 19  -31 27 32
    148  0  0   -32 17  7   16 20 31     7   252   -41  -32 29 25  -32  4 47  -33 19 11  -31 14 34
    149  0  0   -32  2 57   16 20 59     6   252   -41  -32 15 15  -31 50 38  -33  5  0  -31  0 28
    150  0  0   -31 47 44   16 21 24     5   251   -40  -32  0  2  -31 35 25  -32 49 48  -30 45 16

    151  0  0   -31 31 30   16 21 43     4   251   -39  -31 43 48  -31 19 11  -32 33 36  -30 29  1
