THE UPDATED PATH
(Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate the time for your location)

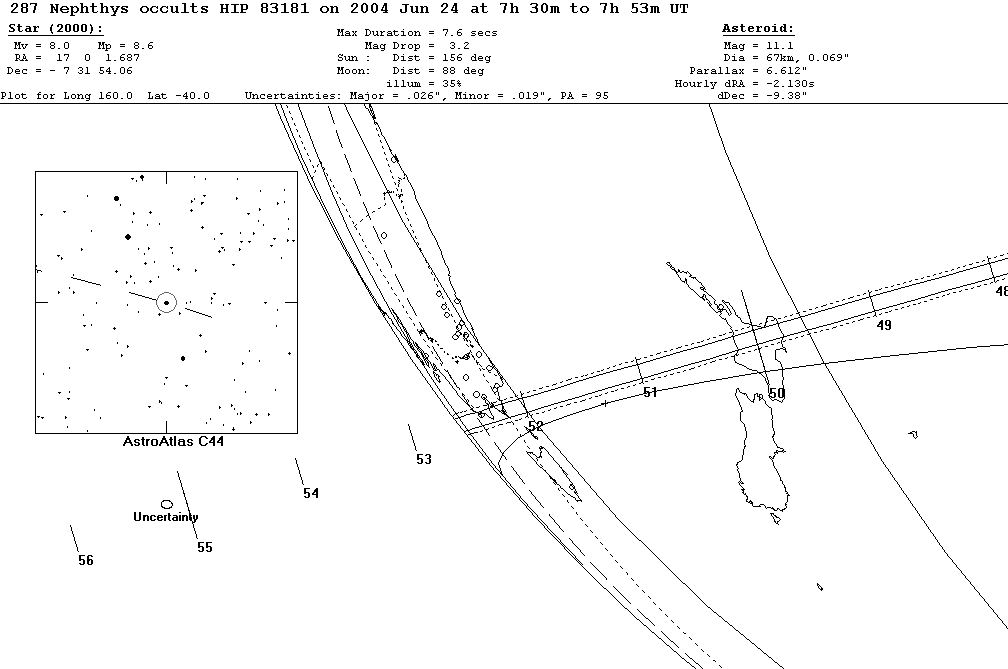

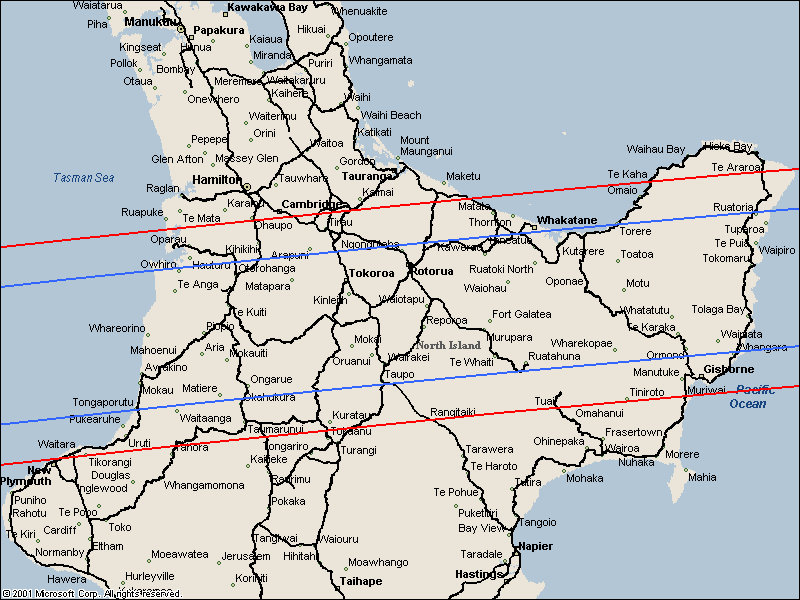

On the detailed map below note that the predicted path of the occultation is enclosed by the BLUE lines. On 2004 Jun 24 UT, the 67 km diameter asteroid (287) Nephthys will occult a 8.0 mag star in the constellation Ophiuchus for observers along a path across Brazil, Peru, New Zealand.
In the case of an occultation, the combined light of the asteroid and the star will drop by 3.2 mag to 11.1 mag (the magnitude of the asteroid) for at most 7.6 seconds.
This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Ron Stone, TMO astrometry for the asteroid kindly provided by Bill Owen, astrometry for the asteroid kindly provided by Gordon Garradd, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC, Hipparcos . Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/ Important Note regarding Accuracy: Further, almost all asteroidal satellites discovered so far have been found within 10 diameters of the asteroid (since this distance is deep enough within the gravitational well to be stable over long timescales). Therefore, if monitoring for secondary events, observing out to about 10 path-widths either side of the predicted track remains worthwhile.
We therefore recommend that you monitor for events if your observing location is up to +/- 10 path-widths from the predicted track. If not monitoring for occultations by secondary bodies you should observe from locations within 3 sigma of the nominal path.
In terms of time, the predictions are now usually accurate to about +/- 0.3 minute so you should be most attentive during the predicted minute of the event. However if intending to catch a potential satellite occultation you should start observing at least 10 times the predicted central duration before the predicted closest approach time for your location, and continue for a similar period afterwards.
Use these links for further information:
The RED lines indicate the possible error on the track.
Data for the target star :
(The event Rank is a measure of the likelihood of observing an event, and is equal to
the probability of at least one successful observation by a team of two observers spaced 1/8 path
width just inside opposite sides of the predicted path).
(Refer to map(s) for your own location)
Data for the minor planet :
The Occultation Path :
The uncertainty interval in path widths given above (and shown as a 1-sigma uncertainty ellipse on the plot) refers to RMS deviation and is applied as a +/- range. In other words, a path uncertainty of 1.0 path widths means that the actual center of the asteroid's shadow path should fall within plus or minus 1 path width of the plotted path center. However path errors larger than 1 sigma have been observed so observers should be alert for primary occultations within plus or minus 3 sigma of the updated path.
Centre Star Star Sun Path Limits Error Limits
E. Longitude Latitude U.T. Alt Az Alt Limit 1 Limit 2 Limit 3 Limit 4
o ' " o ' " h m s o o o o ' " o ' " o ' " o ' "
Latitude Latitude Latitude Latitude
133 0 0 .. .. .. .. .. .. .. .. .. .. .. .. -37 58 59 .. .. .. -38 10 21
134 0 0 -37 46 2 7 52 32 4 96 -1 -37 26 31 -38 5 36 -37 15 13 -38 16 57
135 0 0 -37 52 23 7 52 32 5 95 -1 -37 32 53 -38 11 56 -37 21 35 -38 23 17
136 0 0 -37 58 28 7 52 30 6 95 -2 -37 38 59 -38 18 0 -37 27 41 -38 29 21
137 0 0 -38 4 17 7 52 29 7 94 -3 -37 44 48 -38 23 48 -37 33 31 -38 35 8
138 0 0 -38 9 49 7 52 28 8 94 -4 -37 50 21 -38 29 19 -37 39 4 -38 40 40
139 0 0 -38 15 5 7 52 26 8 93 -4 -37 55 38 -38 34 35 -37 44 22 -38 45 55
140 0 0 -38 20 5 7 52 25 9 92 -5 -38 0 38 -38 39 34 -37 49 22 -38 50 54
141 0 0 -38 24 49 7 52 23 10 92 -6 -38 5 22 -38 44 17 -37 54 7 -38 55 37
142 0 0 -38 29 16 7 52 21 11 91 -7 -38 9 51 -38 48 45 -37 58 36 -39 0 3
143 0 0 -38 33 28 7 52 19 12 90 -7 -38 14 3 -38 52 56 -38 2 48 -39 4 14
144 0 0 -38 37 23 7 52 17 12 90 -8 -38 17 58 -38 56 51 -38 6 44 -39 8 9
145 0 0 -38 41 3 7 52 15 13 89 -9 -38 21 38 -39 0 29 -38 10 24 -39 11 47
146 0 0 -38 44 26 7 52 12 14 89 -10 -38 25 2 -39 3 52 -38 13 48 -39 15 10
147 0 0 -38 47 33 7 52 10 15 88 -10 -38 28 9 -39 6 59 -38 16 56 -39 18 17
148 0 0 -38 50 24 7 52 7 15 87 -11 -38 31 1 -39 9 50 -38 19 47 -39 21 7
149 0 0 -38 52 59 7 52 4 16 87 -12 -38 33 36 -39 12 25 -38 22 23 -39 23 42
150 0 0 -38 55 19 7 52 1 17 86 -12 -38 35 56 -39 14 44 -38 24 42 -39 26 1
151 0 0 -38 57 22 7 51 58 18 85 -13 -38 37 59 -39 16 47 -38 26 46 -39 28 4
152 0 0 -38 59 9 7 51 55 18 85 -14 -38 39 47 -39 18 34 -38 28 34 -39 29 51
153 0 0 -39 0 41 7 51 51 19 84 -15 -38 41 18 -39 20 6 -38 30 5 -39 31 22
154 0 0 -39 1 56 7 51 48 20 83 -15 -38 42 34 -39 21 21 -38 31 21 -39 32 38
155 0 0 -39 2 56 7 51 44 21 83 -16 -38 43 34 -39 22 21 -38 32 21 -39 33 38
156 0 0 -39 3 40 7 51 41 22 82 -17 -38 44 18 -39 23 5 -38 33 5 -39 34 22
157 0 0 -39 4 8 7 51 37 22 81 -18 -38 44 46 -39 23 33 -38 33 33 -39 34 50
158 0 0 -39 4 21 7 51 33 23 81 -18 -38 44 59 -39 23 46 -38 33 46 -39 35 2
159 0 0 -39 4 18 7 51 29 24 80 -19 -38 44 55 -39 23 42 -38 33 42 -39 34 59
160 0 0 -39 3 58 7 51 25 25 79 -20 -38 44 36 -39 23 23 -38 33 23 -39 34 40
161 0 0 -39 3 24 7 51 20 25 79 -21 -38 44 1 -39 22 49 -38 32 48 -39 34 6
162 0 0 -39 2 33 7 51 16 26 78 -21 -38 43 10 -39 21 59 -38 31 57 -39 33 16
163 0 0 -39 1 27 7 51 11 27 77 -22 -38 42 4 -39 20 53 -38 30 51 -39 32 10
164 0 0 -39 0 6 7 51 7 28 77 -23 -38 40 42 -39 19 31 -38 29 29 -39 30 49
165 0 0 -38 58 28 7 51 2 28 76 -24 -38 39 5 -39 17 54 -38 27 51 -39 29 12
166 0 0 -38 56 35 7 50 57 29 75 -24 -38 37 11 -39 16 2 -38 25 57 -39 27 20
167 0 0 -38 54 27 7 50 52 30 75 -25 -38 35 3 -39 13 54 -38 23 48 -39 25 12
168 0 0 -38 52 3 7 50 47 31 74 -26 -38 32 38 -39 11 30 -38 21 24 -39 22 49
169 0 0 -38 49 24 7 50 41 31 73 -26 -38 29 59 -39 8 52 -38 18 44 -39 20 10
170 0 0 -38 46 29 7 50 36 32 72 -27 -38 27 3 -39 5 57 -38 15 48 -39 17 16
171 0 0 -38 43 19 7 50 30 33 72 -28 -38 23 52 -39 2 47 -38 12 37 -39 14 6
172 0 0 -38 39 53 7 50 25 33 71 -29 -38 20 26 -38 59 22 -38 9 11 -39 10 41
173 0 0 -38 36 12 7 50 19 34 70 -29 -38 16 44 -38 55 42 -38 5 29 -39 7 1
174 0 0 -38 32 15 7 50 13 35 70 -30 -38 12 47 -38 51 46 -38 1 31 -39 3 6
175 0 0 -38 28 4 7 50 7 36 69 -31 -38 8 35 -38 47 35 -37 57 18 -38 58 55
176 0 0 -38 23 36 7 50 1 36 68 -32 -38 4 7 -38 43 8 -37 52 50 -38 54 29
177 0 0 -38 18 54 7 49 55 37 67 -32 -37 59 24 -38 38 26 -37 48 7 -38 49 47
178 0 0 -38 13 56 7 49 49 38 66 -33 -37 54 26 -38 33 29 -37 43 8 -38 44 51
179 0 0 -38 8 44 7 49 42 39 66 -34 -37 49 12 -38 28 17 -37 37 54 -38 39 39
180 0 0 -38 3 15 7 49 36 39 65 -35 -37 43 43 -38 22 50 -37 32 25 -38 34 12
