ASTROMETRIC UPDATE:
OCCULTATION BY (21) LUTETIA - 2003 AUG 24

[Edwin Goffin's Prediction + Finder Charts]


UPDATE: 2003 JUL 23, 02:03 UT

THE UPDATED PATH

(Note: The time given in the line below is for the midpoint of the path as it crosses the Earth - please see the minute markers on the map to determine the approximate the time for your location)

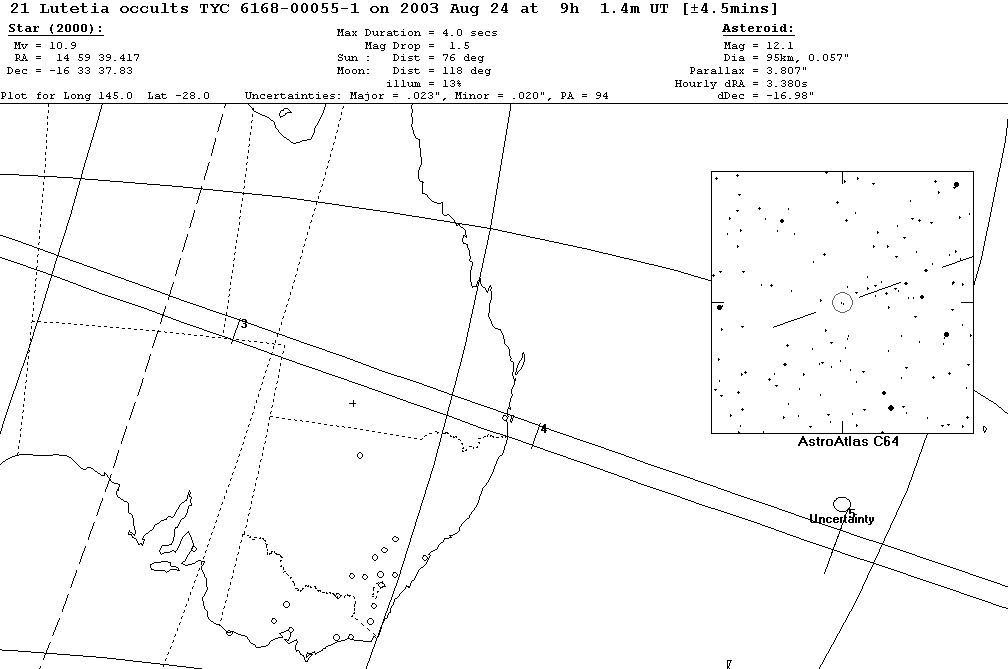

Lutetia Update Map


On 2003 Aug 24 UT, the 95 km diameter asteroid (21) Lutetia will occult a 10.9 mag star in the constellation Libra for observers along a path across eastern Australia. NOTE: Brisbane lies within the path.

In the case of an occultation, the combined light of the asteroid and the star will drop by 1.5 mag to 12.1 mag (the magnitude of the asteroid) for at most 4.0 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Ron Stone, TMO astrometry for the asteroid kindly provided by Bill Owen, historical astrometry from AstDys, and the UCAC catalog for the star position.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                  Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                         Latitude   Latitude   Latitude   Latitude
    109  0  0   -16 54 34    9  0 46    82    90    21  -17 22 22  -16 26 46  -17 22 22  -16 26 46
    110  0  0   -17 17 38    9  0 51    83    86    20  -17 45 23  -16 49 53  -17 45 23  -16 49 53
    111  0  0   -17 40 21    9  0 56    84    82    19  -18  8  4  -17 12 39  -18  8  4  -17 12 39
    112  0  0   -18  2 44    9  1  0    84    76    18  -18 30 23  -17 35  5  -18 30 23  -17 35  5
    113  0  0   -18 24 45    9  1  5    85    69    17  -18 52 22  -17 57 10  -18 52 22  -17 57 10

    114  0  0   -18 46 26    9  1 10    86    58    16  -19 13 59  -18 18 53  -19 13 59  -18 18 53
    115  0  0   -19  7 44    9  1 15    86    44    15  -19 35 15  -18 40 15  -19 35 15  -18 40 15
    116  0  0   -19 28 41    9  1 20    87    26    14  -19 56  8  -19  1 15  -19 56  8  -19  1 15
    117  0  0   -19 49 16    9  1 24    86     7    13  -20 16 40  -19 21 52  -20 16 40  -19 21 52
    118  0  0   -20  9 28    9  1 29    86   350    12  -20 36 49  -19 42  7  -20 36 49  -19 42  7

    119  0  0   -20 29 17    9  1 34    86   337    11  -20 56 35  -20  2  0  -20 56 35  -20  2  0
    120  0  0   -20 48 44    9  1 38    85   328    10  -21 15 59  -20 21 30  -21 15 59  -20 21 30
    121  0  0   -21  7 47    9  1 43    84   321     9  -21 34 59  -20 40 36  -21 34 59  -20 40 36
    122  0  0   -21 26 27    9  1 48    83   316     8  -21 53 36  -20 59 19  -21 53 36  -20 59 19
    123  0  0   -21 44 44    9  1 52    82   312     7  -22 11 49  -21 17 39  -22 11 49  -21 17 39

    124  0  0   -22  2 37    9  1 57    82   309     6  -22 29 39  -21 35 35  -22 29 39  -21 35 35
    125  0  0   -22 20  6    9  2  1    81   306     5  -22 47  5  -21 53  7  -22 47  5  -21 53  7
    126  0  0   -22 37 11    9  2  6    80   304     4  -23  4  8  -22 10 16  -23  4  8  -22 10 16
    127  0  0   -22 53 53    9  2 10    79   302     3  -23 20 46  -22 27  0  -23 20 46  -22 27  0
    128  0  0   -23 10 10    9  2 15    78   300     2  -23 37  0  -22 43 20  -23 37  0  -22 43 20

    129  0  0   -23 26  3    9  2 19    77   299     1  -23 52 50  -22 59 16  -23 52 50  -22 59 16
    130  0  0   -23 41 31    9  2 24    76   298     0  -24  8 16  -23 14 47  -24  8 16  -23 14 47
    131  0  0   -23 56 35    9  2 28    75   296    -1  -24 23 17  -23 29 54  -24 23 17  -23 29 54
    132  0  0   -24 11 15    9  2 32    74   295    -2  -24 37 54  -23 44 37  -24 37 54  -23 44 37
    133  0  0   -24 25 30    9  2 37    73   294    -3  -24 52  7  -23 58 55  -24 52  7  -23 58 55

    134  0  0   -24 39 21    9  2 41    72   293    -4  -25  5 54  -24 12 48  -25  5 54  -24 12 48
    135  0  0   -24 52 47    9  2 45    71   292    -5  -25 19 18  -24 26 17  -25 19 18  -24 26 17
    136  0  0   -25  5 48    9  2 49    70   292    -6  -25 32 17  -24 39 21  -25 32 17  -24 39 21
    137  0  0   -25 18 25    9  2 53    69   291    -7  -25 44 51  -24 52  0  -25 44 51  -24 52  0
    138  0  0   -25 30 37    9  2 57    68   290    -8  -25 57  0  -25  4 14  -25 57  0  -25  4 14

    139  0  0   -25 42 24    9  3  1    68   289    -8  -26  8 45  -25 16  4  -26  8 45  -25 16  4
    140  0  0   -25 53 47    9  3  5    67   289    -9  -26 20  5  -25 27 29  -26 20  5  -25 27 29
    141  0  0   -26  4 45    9  3  9    66   288   -10  -26 31  1  -25 38 29  -26 31  1  -25 38 29
    142  0  0   -26 15 18    9  3 13    65   287   -11  -26 41 32  -25 49  4  -26 41 32  -25 49  4
    143  0  0   -26 25 26    9  3 17    64   287   -12  -26 51 38  -25 59 15  -26 51 38  -25 59 15

    144  0  0   -26 35 10    9  3 21    63   286   -13  -27  1 20  -26  9  0  -27  1 20  -26  9  0
    145  0  0   -26 44 29    9  3 25    62   285   -14  -27 10 37  -26 18 21  -27 10 37  -26 18 21
    146  0  0   -26 53 23    9  3 29    61   285   -15  -27 19 29  -26 27 17  -27 19 29  -26 27 17
    147  0  0   -27  1 52    9  3 32    60   284   -16  -27 27 56  -26 35 49  -27 27 56  -26 35 49
    148  0  0   -27  9 57    9  3 36    59   283   -17  -27 36  0  -26 43 55  -27 36  0  -26 43 55

    149  0  0   -27 17 37    9  3 40    58   283   -18  -27 43 38  -26 51 37  -27 43 38  -26 51 37
    150  0  0   -27 24 53    9  3 43    57   282   -19  -27 50 52  -26 58 54  -27 50 52  -26 58 54
    151  0  0   -27 31 44    9  3 47    57   282   -19  -27 57 41  -27  5 47  -27 57 41  -27  5 47
    152  0  0   -27 38 10    9  3 50    56   281   -20  -28  4  6  -27 12 14  -28  4  6  -27 12 14
    153  0  0   -27 44 12    9  3 54    55   280   -21  -28 10  7  -27 18 18  -28 10  7  -27 18 18

    154  0  0   -27 49 49    9  3 57    54   280   -22  -28 15 43  -27 23 56  -28 15 43  -27 23 56
    155  0  0   -27 55  2    9  4  0    53   279   -23  -28 20 54  -27 29 10  -28 20 54  -27 29 10
    156  0  0   -27 59 50    9  4  4    52   279   -24  -28 25 42  -27 33 59  -28 25 42  -27 33 59
    157  0  0   -28  4 14    9  4  7    51   278   -25  -28 30  4  -27 38 24  -28 30  4  -27 38 24
    158  0  0   -28  8 13    9  4 10    50   278   -26  -28 34  3  -27 42 24  -28 34  3  -27 42 24

    159  0  0   -28 11 48    9  4 14    49   277   -27  -28 37 37  -27 46  0  -28 37 37  -27 46  0
    160  0  0   -28 14 59    9  4 17    48   277   -28  -28 40 47  -27 49 11  -28 40 47  -27 49 11
    161  0  0   -28 17 45    9  4 20    48   276   -28  -28 43 32  -27 51 58  -28 43 32  -27 51 58
    162  0  0   -28 20  6    9  4 23    47   276   -29  -28 45 53  -27 54 20  -28 45 53  -27 54 20
    163  0  0   -28 22  4    9  4 26    46   275   -30  -28 47 50  -27 56 18  -28 47 50  -27 56 18

    164  0  0   -28 23 37    9  4 29    45   275   -31  -28 49 23  -27 57 51  -28 49 23  -27 57 51
    165  0  0   -28 24 46    9  4 32    44   274   -32  -28 50 32  -27 59  0  -28 50 32  -27 59  0
    166  0  0   -28 25 30    9  4 35    43   273   -33  -28 51 16  -27 59 45  -28 51 16  -27 59 45
    167  0  0   -28 25 51    9  4 37    42   273   -34  -28 51 36  -28  0  5  -28 51 36  -28  0  5
    168  0  0   -28 25 47    9  4 40    41   272   -35  -28 51 32  -28  0  1  -28 51 32  -28  0  1

    169  0  0   -28 25 18    9  4 43    40   272   -36  -28 51  4  -27 59 33  -28 51  4  -27 59 33
    170  0  0   -28 24 26    9  4 45    40   271   -36  -28 50 12  -27 58 40  -28 50 12  -27 58 40
    171  0  0   -28 23  9    9  4 48    39   271   -37  -28 48 56  -27 57 24  -28 48 56  -27 57 24
    172  0  0   -28 21 29    9  4 51    38   270   -38  -28 47 15  -27 55 42  -28 47 15  -27 55 42
    173  0  0   -28 19 24    9  4 53    37   270   -39  -28 45 11  -27 53 37  -28 45 11  -27 53 37

    174  0  0   -28 16 54    9  4 56    36   269   -40  -28 42 42  -27 51  7  -28 42 42  -27 51  7
    175  0  0   -28 14  1    9  4 58    35   269   -41  -28 39 49  -27 48 13  -28 39 49  -27 48 13
    176  0  0   -28 10 43    9  5  0    34   268   -42  -28 36 33  -27 44 55  -28 36 33  -27 44 55
    177  0  0   -28  7  2    9  5  3    33   268   -43  -28 32 52  -27 41 12  -28 32 52  -27 41 12
    178  0  0   -28  2 56    9  5  5    32   267   -44  -28 28 47  -27 37  6  -28 28 47  -27 37  6

IMPORTANT NOTE!

Astrometric updates such as these should not be taken as definitive, but rather only as an indication of where the true track may lie relative to the original predicted track. Observers must bear in mind that later astrometry, in which the target star is measured in the same field as the asteroid, may still reveal substantial changes to the predicted track and time of the event. For this reason it is most important that observers far from the predicted track still monitor the event.
