Graze location maps for SE Australia and for Perth in 2016

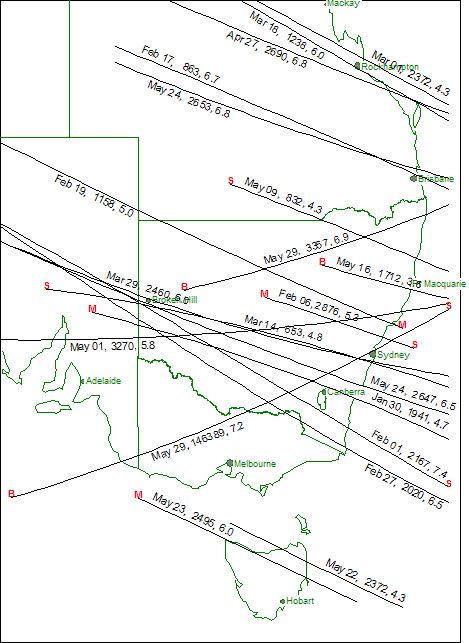

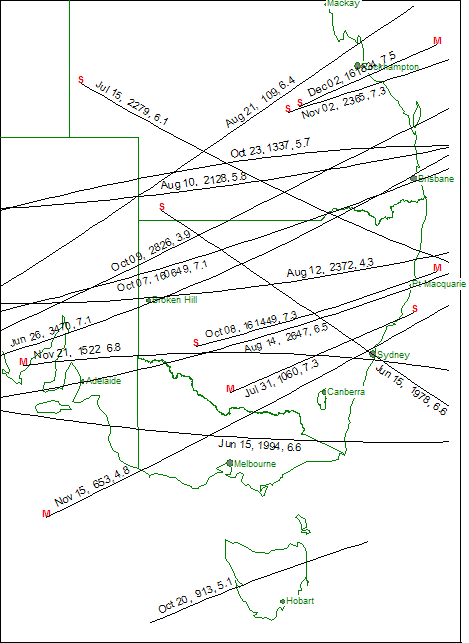

2016 January to May, South East Australia	2016 June to December, South East Australia	2016 South West Australia
Table of grazes for South-east Australia - Jan to May	Table of grazes for South-east Australia - Jun to Dec	Table of grazes for West Australia

Charts prepared using data from David Herald's Win-Occult and a program written by Pauline Loader.

Note:

'S' at the end of a track indicates interference from the Sun

'S' at both ends indicates Sun above horizon for at least part of track

'M' indicates that the star is at low altitude

'B' indicates both 'S' and 'M'

Table of grazes for South East Australia.       Table of grazes for West Australia.

Date :

Universal Time (UT). UT is effectively equivalent to Greenwich Mean Time.

Star :

ZC indicates the star number in Robertson's Zodiacal Catalog.

S indicates the star number in the SAO Catalog.

A link is provided to information on double stars.

Mag :

Star Magnitude.

%Snlt :

Percent sunlit of the moon. "+" is waxing (before Full Moon) and "-" waning. Before Full Moon the star will appear to approach the moon from its dark side. After Full Moon the star appears to approach across the lighted lunar limb.

Near Place ... :

Lists some cities or towns close to the path, but not usually on it. Click on them to bring up WIN OCCULT predictions and a profile for this graze.

Time :

Approximate hour and minute of graze (Universal Time). For sites to the west times may be a minute or so earlier whilst to the east they may be a little later. Events may occur for a minute or two either side of the predicted time.

Alt :

Altitude of the star and Moon.

CA & Limit :

The Limit indicates whether the star grazes the Northern or Southern edge of the Moon. The associated figure shows the number of degrees round the circumference of the Moon from the bright cusp at which mid graze occurs. The centres of all grazes are on the unlit portion of the limb unless otherwise indicated indicated by a - CA value.

Notes :

This gives further information about the graze and star. Most grazes should be observable with a telescope aperture of 100mm. If a larger aperture is likely to be needed this is indicated.

Double star information is contained in the prediction files.

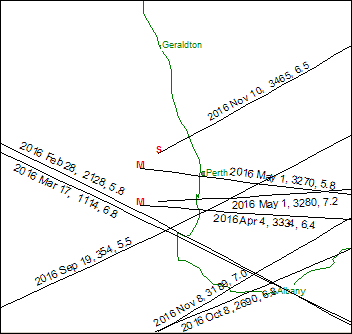

Grazes for southwest Western Australia, 2016

(Graze Data obtained from David Herald's OCCULT).
