Predictions for Grazing Occultation of ZC3362, 2015 Nov 20

Graze profile
Grazing Occultation of    3362cK0      Magnitude 5.9 [Red = 0.0]  S
Date: 2015 Nov 20 11h 15m,  to  2015 Nov 20 11h 59m

Nominal site altitude 50m

E. Longit.   Latitude     U.T.    Sun  Moon   TanZ   PA    AA      CA
   o  '  "    o  '  "   h  m  s   Alt Alt Az          o     o      o
 135  0  0  -41 17 57  11 14 56       50 330  0.84 154.1 178.06   4.00S
 135 30  0  -41  2  8  11 16  3       50 329  0.84 154.1 178.04   4.03S
 136  0  0  -40 46 14  11 17 10       50 327  0.84 154.0 178.02   4.05S
 136 30  0  -40 30 16  11 18 18       50 326  0.85 154.0 178.00   4.06S
 137  0  0  -40 14 16  11 19 26       50 325  0.85 154.0 177.99   4.07S
 137 30  0  -39 58 12  11 20 34       49 323  0.85 154.0 177.98   4.08S
 138  0  0  -39 42  6  11 21 42       49 322  0.86 154.0 177.97   4.09S
 138 30  0  -39 25 58  11 22 51       49 321  0.86 154.0 177.96   4.10S
 139  0  0  -39  9 49  11 24  0       49 320  0.87 154.0 177.96   4.10S
 139 30  0  -38 53 38  11 25  9       49 319  0.88 154.0 177.96   4.10S
 140  0  0  -38 37 27  11 26 18       49 317  0.88 154.0 177.97   4.10S
 140 30  0  -38 21 15  11 27 28       48 316  0.89 154.0 177.97   4.09S
 141  0  0  -38  5  3  11 28 37       48 315  0.90 154.0 177.98   4.08S
 141 30  0  -37 48 52  11 29 47       48 314  0.91 154.0 177.99   4.07S
 142  0  0  -37 32 42  11 30 56       48 313  0.91 154.0 178.01   4.06S
 142 30  0  -37 16 34  11 32  5       47 311  0.92 154.1 178.02   4.04S
 143  0  0  -37  0 27  11 33 15       47 310  0.93 154.1 178.04   4.02S
 143 30  0  -36 44 23  11 34 24       47 309  0.94 154.1 178.07   3.99S
 144  0  0  -36 28 22  11 35 33       46 308  0.95 154.1 178.09   3.97S
 144 30  0  -36 12 24  11 36 41       46 307  0.97 154.1 178.12   3.94S
 145  0  0  -35 56 30  11 37 50       46 306  0.98 154.2 178.15   3.91S
 145 30  0  -35 40 39  11 38 58       45 305  0.99 154.2 178.19   3.87S
 146  0  0  -35 24 54  11 40  6       45 304  1.00 154.3 178.23   3.84S
 146 30  0  -35  9 13  11 41 14       45 303  1.02 154.3 178.26   3.80S
 147  0  0  -34 53 38  11 42 21       44 302  1.03 154.3 178.31   3.76S
 147 30  0  -34 38  9  11 43 28       44 301  1.05 154.4 178.35   3.71S
 148  0  0  -34 22 46  11 44 34       43 300  1.06 154.4 178.40   3.66S
 148 30  0  -34  7 29  11 45 40       43 299  1.08 154.5 178.45   3.61S
 149  0  0  -33 52 19  11 46 45       42 298  1.10 154.5 178.50   3.56S
 149 30  0  -33 37 17  11 47 50       42 297  1.11 154.6 178.55   3.51S
 150  0  0  -33 22 22  11 48 54       41 296  1.13 154.6 178.61   3.45S
 150 30  0  -33  7 35  11 49 57       41 295  1.15 154.7 178.67   3.39S
 151  0  0  -32 52 56  11 51  0       41 295  1.17 154.8 178.73   3.33S
 151 30  0  -32 38 26  11 52  2       40 294  1.19 154.8 178.79   3.27S
 152  0  0  -32 24  4  11 53  4       40 293  1.21 154.9 178.86   3.21S
 152 30  0  -32  9 51  11 54  5       39 292  1.23 154.9 178.92   3.14S
 153  0  0  -31 55 48  11 55  5       39 291  1.26 155.0 178.99   3.07S
 153 30  0  -31 41 54  11 56  4       38 291  1.28 155.1 179.06   3.00S
 154  0  0  -31 28 10  11 57  3       38 290  1.30 155.2 179.13   2.93S
 154 30  0  -31 14 35  11 58  0       37 289  1.33 155.2 179.20   2.86S
 155  0  0  -31  1 11  11 58 57       36 289  1.35 155.3 179.28   2.79S

Path coordinates are referred to WGS84 (as used by GPS), with the
nominal site altitude being referenced to Mean Sea Level. The path
is adjusted for the effects of refraction at low moon altitudes.

3362 is variable:
      3362 = NSV 14360, 7.6,

3362 is double:
  Graze prediction is based on the mean position of AB 6.03 7.75 0.46" 324.3
 (BU  178) Graze path of A 0.20 km north, and 0.0 secs later compared to prediction
  Graze path of B 0.95 km south, and 0.2 secs earlier compared to prediction

  AB 6.03 7.75 0.46" 324.3 (BU  178) Graze path of B 1.15 km south, and 0.2 secs earlier compared to A

    C A S S I N I   R E G I O N   G R A Z E
                Librations  Long -4.15   Lat -2.42
                            P +178.31     D -2.29
      Illumination of moon  63%+
        Elongation of Moon  106
    Vertical Profile Scale  2.43 km/arcsec at mean distance of moon
   Horizontal Scale Factor  1.54 deg/min


At longitude 145.00:
Limiting Magnitudes for various telescope apertures (in cm)
      CA\Tdia   5    10    15    20    25    30    35
    -0.1      2.9   4.4   5.1   5.6   5.9   6.1   6.3
     1.9      4.8   6.3   7.1   7.5   7.9   8.1   8.3
     3.9      4.8   6.3   7.1   7.6   7.9   8.2   8.3
     5.9      5.7   7.1   7.9   8.4   8.8   9.0   9.2
     7.9      5.7   7.1   7.9   8.5   8.8   9.1   9.3

------------------------------------------------------------------------------
Results of Observer Scan                                    UT
Site                              Long.   Lat.   Dist.    h  m  s
AU Mid                            143.0  -30.6   604km   11 33 15
Bendigo                           144.3  -36.8    47km   11 36 18
Canberra                          149.2  -35.3   141km   11 47  4
Melbourne                         145.0  -37.8   171km   11 37 45
Newcastle                         151.7  -33.0    40km   11 52 29
Pt Macquarie                      152.8  -31.4    59km   11 54 45
Sydney                            151.1  -33.8    94km   11 51  8

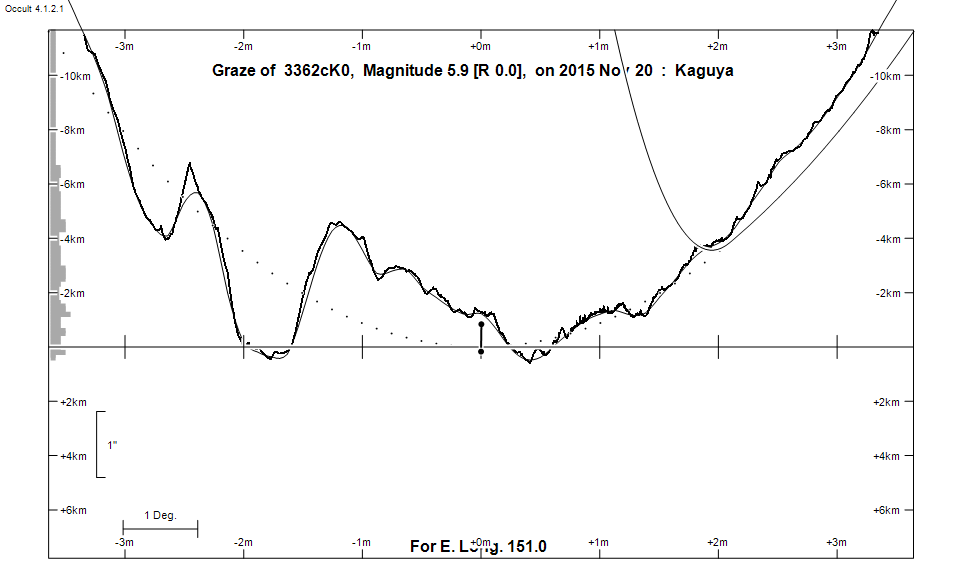

Lunar Limb Profile

Lunar Limb Profile
