Predictions for Grazing Occultation of ZC 532, 2014 Aug 17, Bundaberg, Qld

Graze profile Bundaberg
Grazing Occultation of     532SG0      Magnitude 7.1 [Red = 6.7]
Date: 2014 Aug 17 16h 35m,  to  2014 Aug 17 16h 55m

Nominal site altitude 100m

E. Longit.   Latitude     U.T.    Sun  Moon   TanZ   PA    AA      CA
   o  '  "    o  '  "   h  m  s   Alt Alt Az          o     o      o
 133  0  0  -33  2 24  16 35 12        8  63  7.21 342.9 357.06   4.08N
 133 30  0  -32 51 18  16 35 23        8  63  6.78 342.8 357.00   4.14N
 134  0  0  -32 40  8  16 35 34        9  63  6.40 342.8 356.94   4.20N
 134 30  0  -32 28 53  16 35 46        9  63  6.05 342.7 356.88   4.26N
 135  0  0  -32 17 32  16 35 59       10  62  5.74 342.7 356.82   4.32N
 135 30  0  -32  6  6  16 36 12       10  62  5.45 342.6 356.76   4.38N
 136  0  0  -31 54 36  16 36 26       11  62  5.19 342.5 356.70   4.44N
 136 30  0  -31 43  0  16 36 40       11  61  4.96 342.5 356.64   4.50N
 137  0  0  -31 31 18  16 36 55       12  61  4.74 342.4 356.58   4.56N
 137 30  0  -31 19 32  16 37 11       12  61  4.53 342.4 356.52   4.62N
 138  0  0  -31  7 40  16 37 28       13  60  4.34 342.3 356.46   4.68N
 138 30  0  -30 55 44  16 37 45       13  60  4.17 342.3 356.40   4.74N
 139  0  0  -30 43 42  16 38  3       14  60  4.01 342.2 356.35   4.79N
 139 30  0  -30 31 35  16 38 21       15  59  3.85 342.1 356.29   4.85N
 140  0  0  -30 19 23  16 38 41       15  59  3.71 342.1 356.23   4.91N
 140 30  0  -30  7  5  16 39  1       16  59  3.58 342.0 356.17   4.97N
 141  0  0  -29 54 42  16 39 22       16  58  3.45 342.0 356.11   5.03N
 141 30  0  -29 42 15  16 39 43       17  58  3.33 341.9 356.05   5.08N
 142  0  0  -29 29 41  16 40  6       17  58  3.22 341.8 356.00   5.14N
 142 30  0  -29 17  3  16 40 29       18  58  3.11 341.8 355.94   5.20N
 143  0  0  -29  4 20  16 40 53       18  57  3.01 341.7 355.88   5.26N
 143 30  0  -28 51 32  16 41 18       19  57  2.92 341.7 355.83   5.31N
 144  0  0  -28 38 38  16 41 43       19  57  2.83 341.6 355.77   5.37N
 144 30  0  -28 25 40  16 42 10       20  56  2.74 341.6 355.72   5.42N
 145  0  0  -28 12 36  16 42 37       21  56  2.66 341.5 355.66   5.48N
 145 30  0  -27 59 28  16 43  5       21  56  2.58 341.5 355.61   5.53N
 146  0  0  -27 46 14  16 43 35       22  55  2.50 341.4 355.55   5.58N
 146 30  0  -27 32 56  16 44  5       22  55  2.43 341.4 355.50   5.64N
 147  0  0  -27 19 33  16 44 36       23  54  2.36 341.3 355.45   5.69N
 147 30  0  -27  6  5  16 45  8       24  54  2.30 341.2 355.40   5.74N
 148  0  0  -26 52 32  16 45 40       24  54  2.23 341.2 355.35   5.79N
 148 30  0  -26 38 55  16 46 14       25  53  2.17 341.1 355.30   5.84N
 149  0  0  -26 25 13  16 46 49       25  53  2.11 341.1 355.25   5.89N
 149 30  0  -26 11 26  16 47 25       26  53  2.06 341.1 355.20   5.94N
 150  0  0  -25 57 35  16 48  2       27  52  2.00 341.0 355.16   5.98N
 150 30  0  -25 43 40  16 48 39       27  52  1.95 341.0 355.11   6.03N
 151  0  0  -25 29 40  16 49 18       28  52  1.90 340.9 355.07   6.07N
 151 30  0  -25 15 36  16 49 58       28  51  1.85 340.9 355.03   6.11N
 152  0  0  -25  1 28  16 50 39       29  51  1.81 340.8 354.98   6.16N
 152 30  0  -24 47 16  16 51 21       30  50  1.76 340.8 354.94   6.20N
 153  0  0  -24 33  0  16 52  4       30  50  1.72 340.8 354.91   6.23N
 153 30  0  -24 18 40  16 52 48       31  50  1.67 340.7 354.87   6.27N
 154  0  0  -24  4 17  16 53 33       31  49  1.63 340.7 354.83   6.31N
 154 30  0  -23 49 51  16 54 20       32  49  1.59 340.7 354.80   6.34N
 155  0  0  -23 35 21  16 55  7       33  48  1.55 340.6 354.77   6.37N

Path coordinates are referred to WGS84 (as used by GPS), with the
nominal site altitude being referenced to Mean Sea Level. The path
is adjusted for the effects of refraction at low moon altitudes.

532 is triple:
  This next pair is not confirmed
  ** 8.0 8.0 0.021"  65.0 (OCc1210) Graze path of ? 0.00 km south, and 0.0 secs later compared to the primary
  AB 7.2 14.2 10.2" 269.9 (RAO  78) Graze path of B 6.76 km south, and 22.7 secs earlier compared to A

    C A S S I N I   R E G I O N   G R A Z E
                Librations  Long +8.34   Lat +3.49
                            P +356.28     D -3.83
      Illumination of moon  47%-
        Elongation of Moon  87
    Vertical Profile Scale  2.13 km/arcsec at mean distance of moon
   Horizontal Scale Factor  1.59 deg/min


At longitude 144.00:
Limiting Magnitudes for various telescope apertures (in cm)
      CA\Tdia   5    10    15    20    25    30    35
     1.4      4.6   5.9   6.6   7.1   7.3   7.5   7.6
     3.4      4.6   6.0   6.7   7.1   7.4   7.5   7.7
     5.4      5.3   6.7   7.5   7.9   8.2   8.4   8.6
     7.4      5.3   6.7   7.5   7.9   8.2   8.4   8.6
     9.4      5.4   6.8   7.5   8.0   8.3   8.5   8.6

------------------------------------------------------------------------------
Double star catalogue details
WDS entries

  RA  Dec Name          Y1   Y2     N  PA  PA   Sep   Sep  M1    M2
03426+1718RAO  78AB    2000 2013    2 271 270  11.9  10.4  7.16 14.2  G0        -125+033          +16  497  U   034236.89+171736.6

------------------------------------------------
Interferometric catalogue entries

034236.89+171736.6  GC 4435                   RAO  78                   HD  23052    HIP  17336         03426+1718 N O
    Date       PA              Sep                  M1             M2
  1991.25        .      .   O   .         .         7.07    .       .      .       511       0.3   1  HIP1997g Hh
  1998.7012      .      .   <  0.054      .          .      .       .      .       550  24   2.1   1  Msn2001b Su
  2001.0303      .      .   <  0.03       .          .      .       .      .       550  24   3.8   1  Msn2012x Su
  2010.9683      .      .   <  0.15       .          .      .    > 4.5     .       534  22   4.1   2  Tok2012d St
  2010.9683      .      .   <  1.0        .          .      .    > 5.2     .       534  22   4.1   2  Tok2012d St
  2013.5731   269.7    0.0    10.388     0.0000      .      .      6.44    .       754 119   1.5   1  RAO2013x A


------------------------------------------------------------------------------
Results of Observer Scan                                    UT
Site                              Long.   Lat.   Dist.    h  m  s

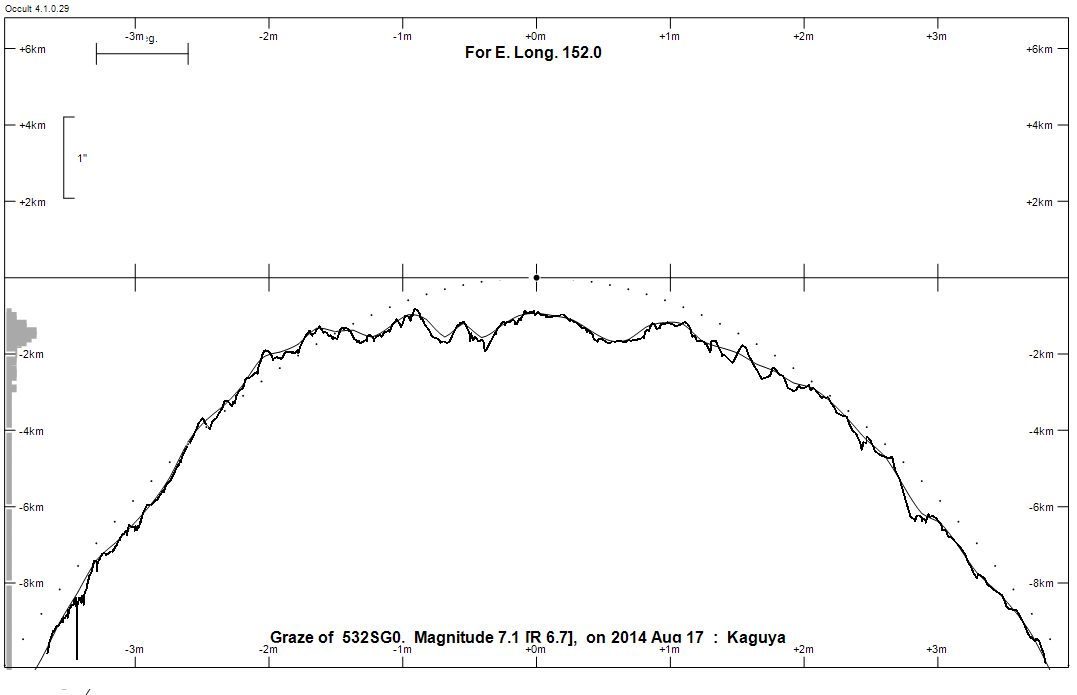

Lunar Limb Profile - Bundaberg.

Lunar Limb Profile
