Predictions for Grazing Occultation of ZC 2913, 2014 Jun 15, Adelaide & Canberra.

Graze profile Canberra
Grazing Occultation of    2913 A2      Magnitude 5.0 [Red = 5.0]
   R2913 = 61 Sagittarii
Date: 2014 Jun 15 14h  8m,  to  2014 Jun 15 14h 41m

Nominal site altitude 100m

E. Longit.   Latitude     U.T.    Sun  Moon   TanZ   PA    AA      CA
   o  '  "    o  '  "   h  m  s   Alt Alt Az          o     o      o
 133  0  0  -34 45 37  14  8 27       41  80  1.16 170.9 182.35  10.06S
 133 30  0  -34 48 16  14  9  2       41  80  1.14 170.8 182.26   9.97S
 134  0  0  -34 50 48  14  9 37       42  79  1.12 170.7 182.18   9.88S
 134 30  0  -34 53 12  14 10 13       42  79  1.10 170.6 182.09   9.79S
 135  0  0  -34 55 30  14 10 49       43  78  1.08 170.5 181.99   9.70S
 135 30  0  -34 57 40  14 11 26       43  78  1.06 170.4 181.90   9.61S
 136  0  0  -34 59 43  14 12  3       44  77  1.04 170.3 181.81   9.52S
 136 30  0  -35  1 39  14 12 40       44  77  1.02 170.2 181.72   9.42S
 137  0  0  -35  3 27  14 13 18       45  76  1.01 170.1 181.62   9.33S
 137 30  0  -35  5  8  14 13 56       45  76  0.99 170.0 181.52   9.23S
 138  0  0  -35  6 42  14 14 35       46  75  0.97 169.9 181.43   9.14S
 138 30  0  -35  8  8  14 15 14       46  75  0.95 169.8 181.33   9.04S
 139  0  0  -35  9 26  14 15 54       47  74  0.93 169.7 181.23   8.94S
 139 30  0  -35 10 36  14 16 34       47  74  0.92 169.6 181.13   8.84S
 140  0  0  -35 11 39  14 17 14       48  73  0.90 169.5 181.03   8.74S
 140 30  0  -35 12 34  14 17 55       48  72  0.88 169.4 180.92   8.63S
 141  0  0  -35 13 20  14 18 36       49  72  0.87 169.3 180.82   8.53S
 141 30  0  -35 13 59  14 19 18       50  71  0.85 169.2 180.72   8.43S
 142  0  0  -35 14 30  14 20  0       50  71  0.84 169.1 180.61   8.32S
 142 30  0  -35 14 53  14 20 43       51  70  0.82 169.0 180.50   8.21S
 143  0  0  -35 15  7  14 21 26       51  69  0.81 168.9 180.40   8.11S
 143 30  0  -35 15 13  14 22  9       52  69  0.79 168.8 180.29   8.00S
 144  0  0  -35 15 11  14 22 53       52  68  0.78 168.7 180.18   7.89S
 144 30  0  -35 15  0  14 23 37       53  67  0.76 168.6 180.07   7.78S
 145  0  0  -35 14 41  14 24 22       53  67  0.75 168.5 179.95   7.67S
 145 30  0  -35 14 13  14 25  7       54  66  0.73 168.3 179.84   7.56S
 146  0  0  -35 13 37  14 25 53       54  65  0.72 168.2 179.73   7.44S
 146 30  0  -35 12 52  14 26 39       55  65  0.71 168.1 179.61   7.33S
 147  0  0  -35 11 58  14 27 25       55  64  0.69 168.0 179.50   7.21S
 147 30  0  -35 10 55  14 28 12       56  63  0.68 167.9 179.38   7.10S
 148  0  0  -35  9 44  14 28 59       56  62  0.67 167.8 179.27   6.98S
 148 30  0  -35  8 23  14 29 47       57  62  0.65 167.7 179.16   6.87S
 149  0  0  -35  6 54  14 30 35       57  61  0.64 167.5 179.04   6.75S
 149 30  0  -35  5 15  14 31 24       58  60  0.63 167.4 178.92   6.63S
 150  0  0  -35  3 27  14 32 13       58  59  0.62 167.3 178.79   6.51S
 150 30  0  -35  1 30  14 33  2       59  58  0.60 167.2 178.67   6.39S
 151  0  0  -34 59 23  14 33 52       59  57  0.59 167.1 178.55   6.27S
 151 30  0  -34 57  7  14 34 42       60  57  0.58 166.9 178.43   6.14S
 152  0  0  -34 54 42  14 35 33       60  56  0.57 166.8 178.30   6.02S
 152 30  0  -34 52  7  14 36 24       61  55  0.56 166.7 178.18   5.89S
 153  0  0  -34 49 22  14 37 16       61  54  0.55 166.6 178.05   5.77S
 153 30  0  -34 46 28  14 38  8       62  53  0.53 166.4 177.92   5.64S
 154  0  0  -34 43 24  14 39  0       62  52  0.52 166.3 177.80   5.52S
 154 30  0  -34 40 10  14 39 53       63  51  0.51 166.2 177.67   5.39S
 155  0  0  -34 36 46  14 40 47       63  50  0.50 166.1 177.54   5.26S

Path coordinates are referred to WGS84 (as used by GPS), with the
nominal site altitude being referenced to Mean Sea Level. The path
is adjusted for the effects of refraction at low moon altitudes.


    C A S S I N I   R E G I O N   G R A Z E
                Librations  Long +0.84   Lat -6.89
                            P +180.08     D -6.63
      Illumination of moon  91%-
        Elongation of Moon  145
    Vertical Profile Scale  1.94 km/arcsec at mean distance of moon
   Horizontal Scale Factor  1.53 deg/min


At longitude 144.00:
Limiting Magnitudes for various telescope apertures (in cm)
      CA\Tdia   5    10    15    20    25    30    35
     3.9      2.5   3.9   4.7   5.2   5.5   5.7   5.9
     5.9      3.8   5.3   6.1   6.5   6.9   7.1   7.3
     7.9      4.6   6.0   6.8   7.3   7.6   7.9   8.0
     9.9      4.6   6.0   6.8   7.3   7.6   7.9   8.0
    11.9      4.8   6.2   7.0   7.5   7.9   8.1   8.3

------------------------------------------------------------------------------
Results of Observer Scan                                    UT
Site                              Long.   Lat.   Dist.    h  m  s
Adelaide                          138.6  -34.9    25km   14 15 22
Albany                            117.8  -35.0   260km   13 54 13
Bendigo                           144.3  -36.8   172km   14 23 22
Canberra                          149.2  -35.3    20km   14 30 50
Melbourne                         145.0  -37.8   285km   14 24 19
Newcastle                         151.7  -33.0   219km   14 35  4
Perth                             115.9  -32.0    28km   13 52 51
Sydney                            151.1  -33.8   127km   14 33 59

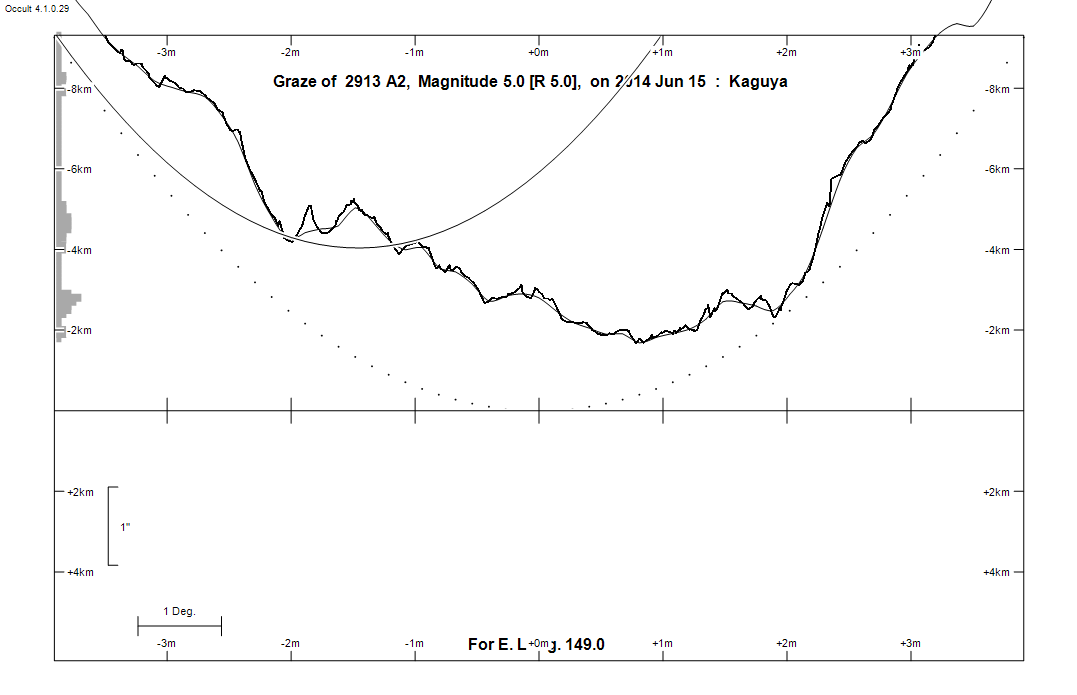

Lunar Limb Profile - Canberra

Lunar Limb Profile
